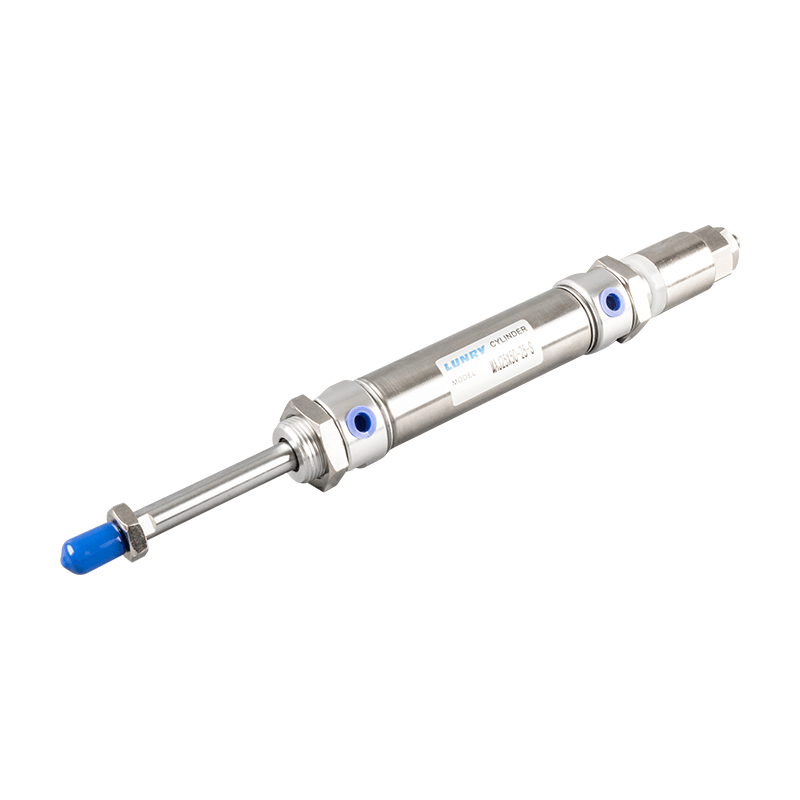

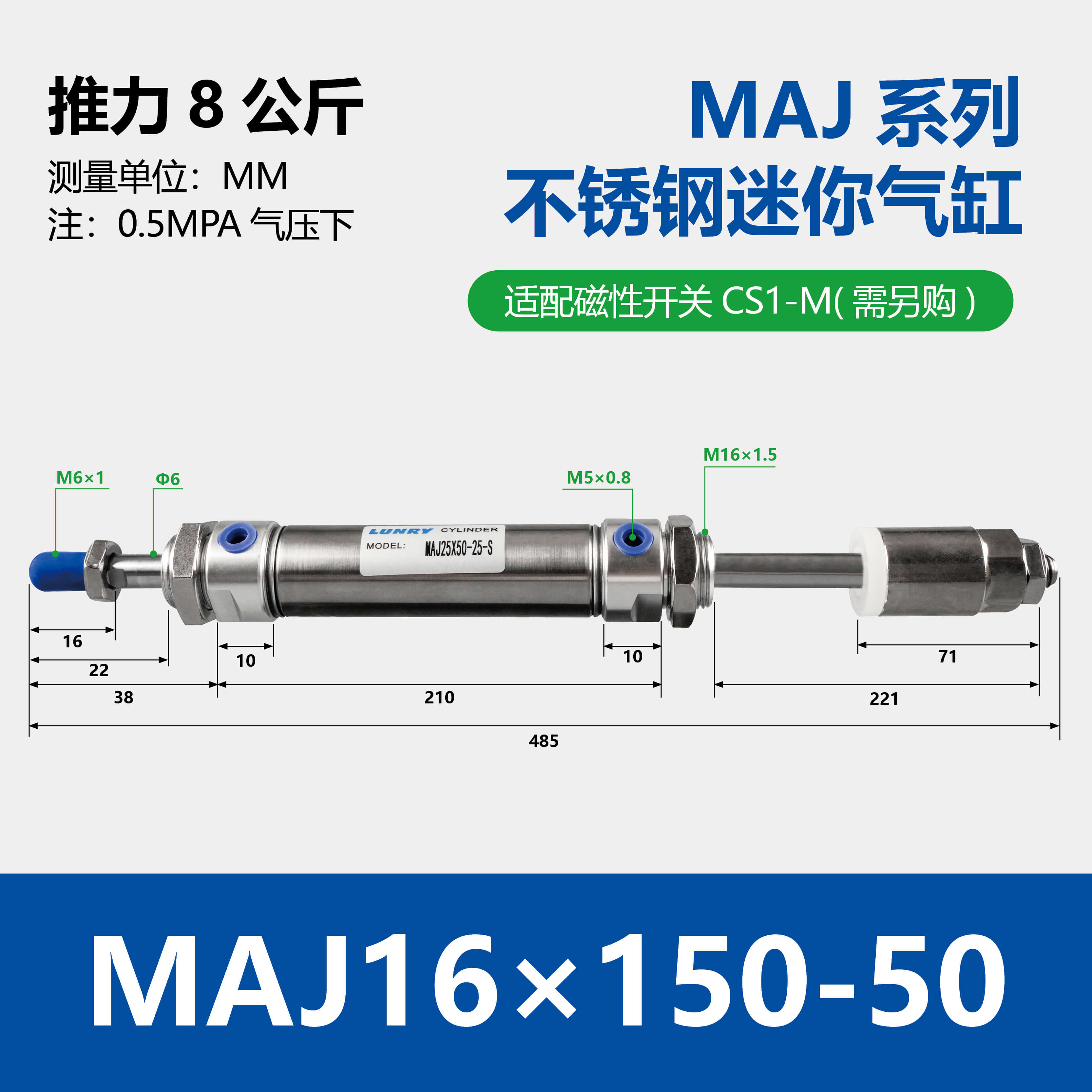

MAJ Double Rod Adjustable Stainless Steel Mini Cylinder
-
24-hour customer service
-
Secure payments
-
15-day returns
Size & Materials
You can find the materials of the cylinder and more detailed information in the detailed introduction below.
If you have more needs, you are welcome to contact us at any time.
Returns
- We hope you enjoy your purchase. Enjoy 15 days of free return shipping for worry-free shopping. You can return or exchange items within 15 days of receipt, the products must be unused and in their original packaging. If it is a quality issue, the return shipping cost will be borne by us.
Professional customer service
WhatsApp:86 133 5333 3249
WeChat:13353333249
E-mail:cylinder-factory@outlook.com
MAJ Series Adjustable Cylinders
1. Manufactured in strict compliance with enterprise quality standards for consistent performance
2. Integrated with custom-profiled bidirectional sealing rings, boasting compact dimensions and built-in oil reservoirs for prolonged service life
3. Front and rear covers fitted with fixed shock-absorbing pads to drastically reduce impact during directional switching
4. Versatile rear cover configurations for maximum installation flexibility across diverse industrial setups

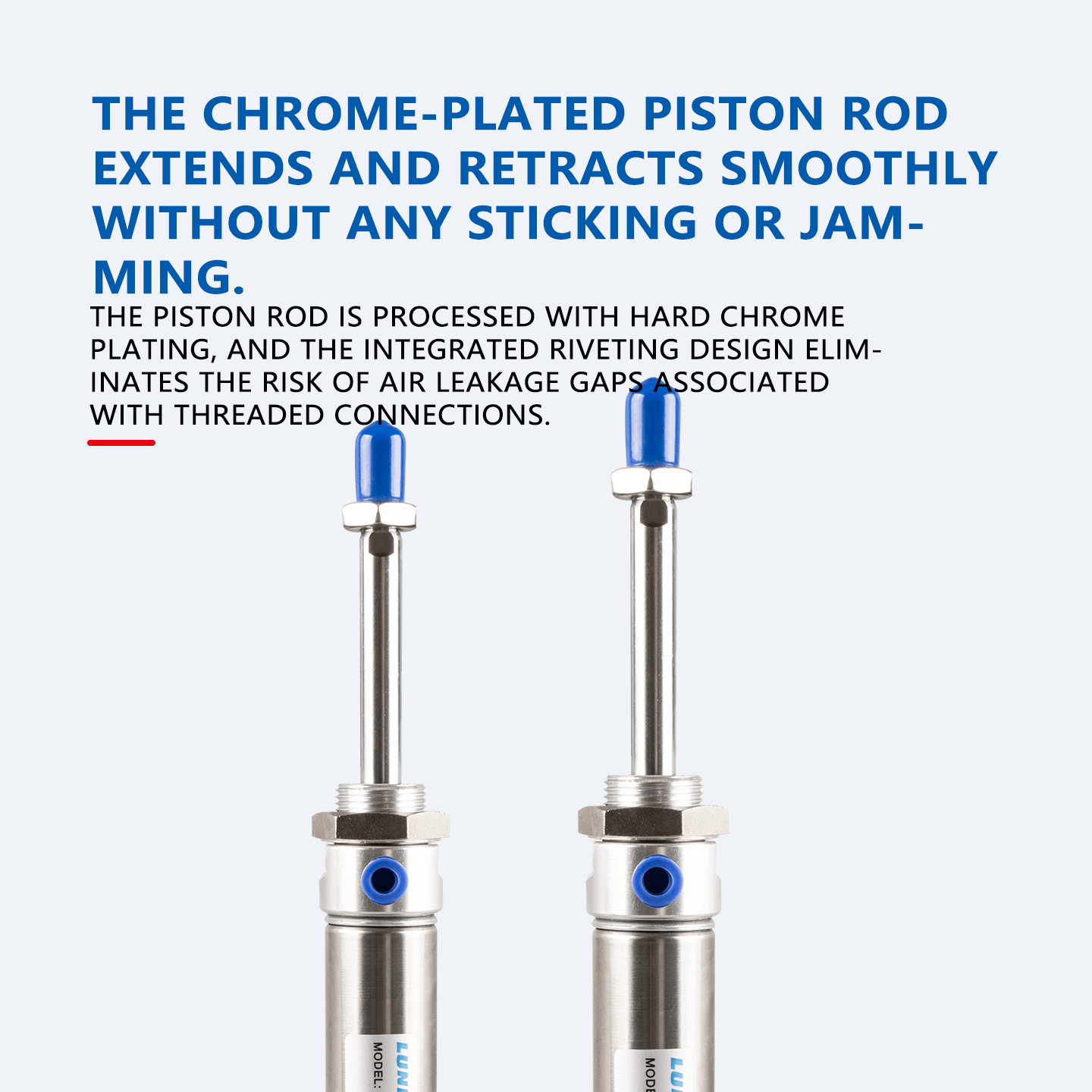

5. Precision crimped joining technology guarantees a secure, leak-proof bond between the stainless steel barrel and end covers

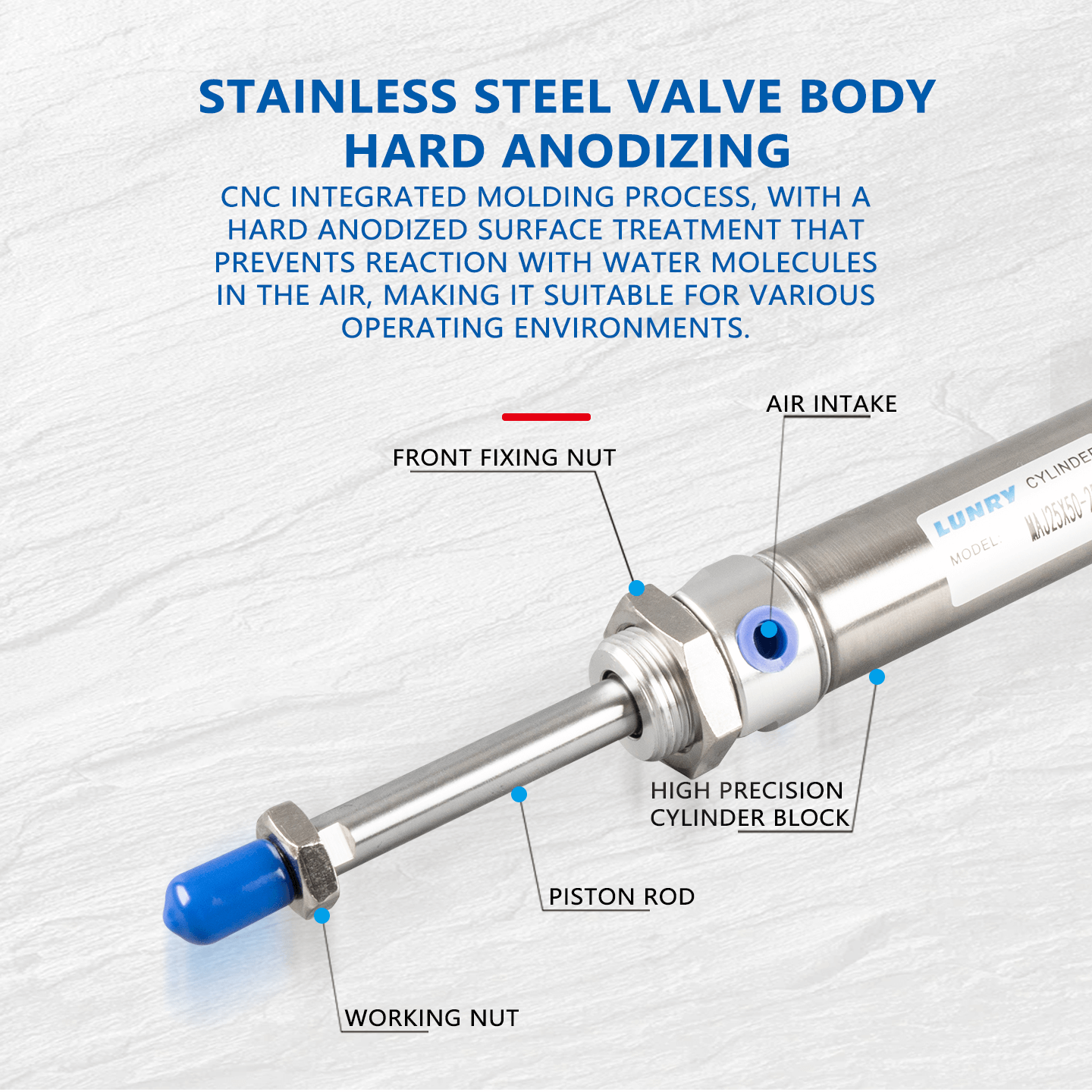

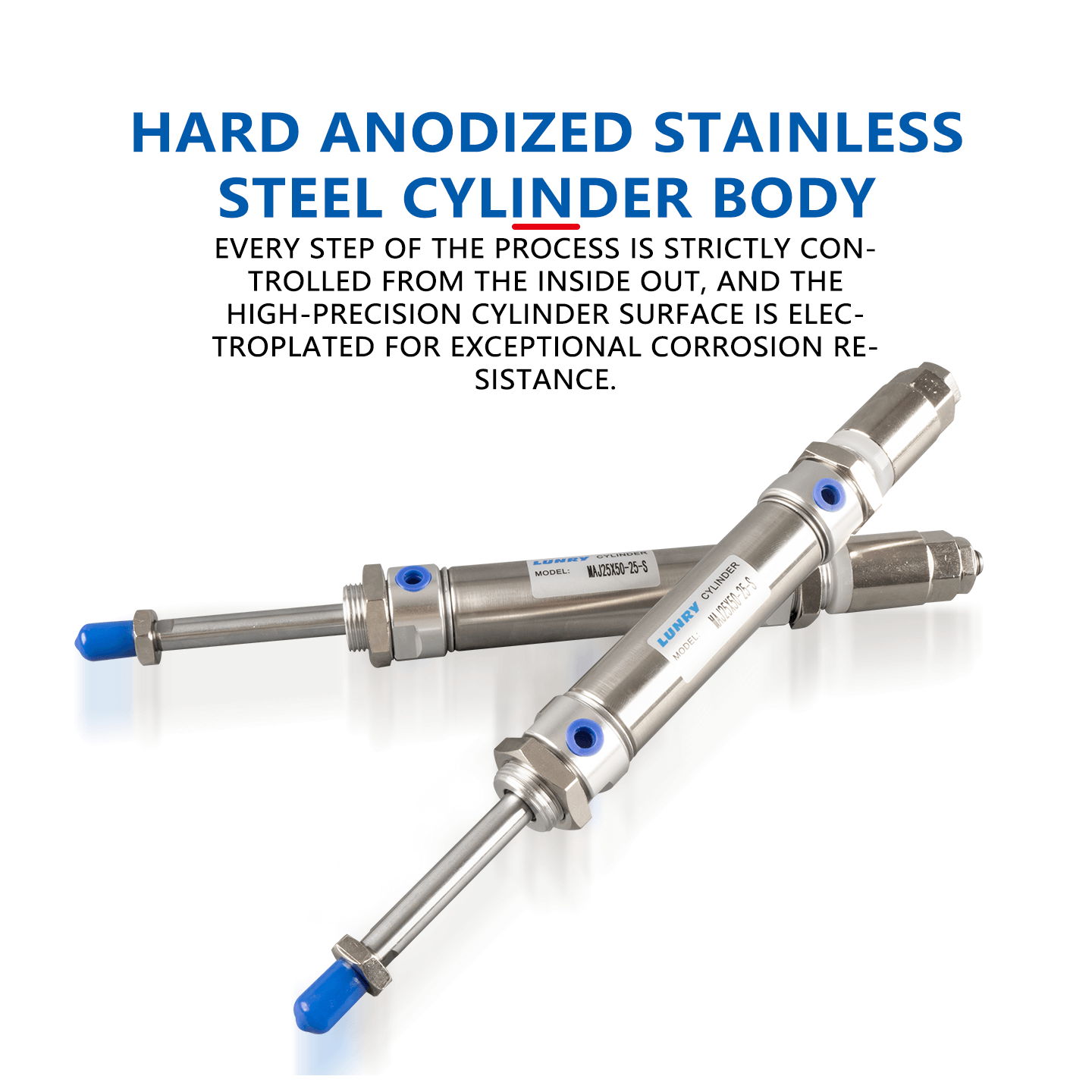

6. Crafted from high-precision stainless steel tubing, delivering superior structural strength and excellent corrosion resistance
7. Offered in a wide range of bore sizes, paired with fully compatible mounting accessories to meet varied application needs
8. Full-range magnetic piston as a standard configuration, enabling easy position detection for automated systems

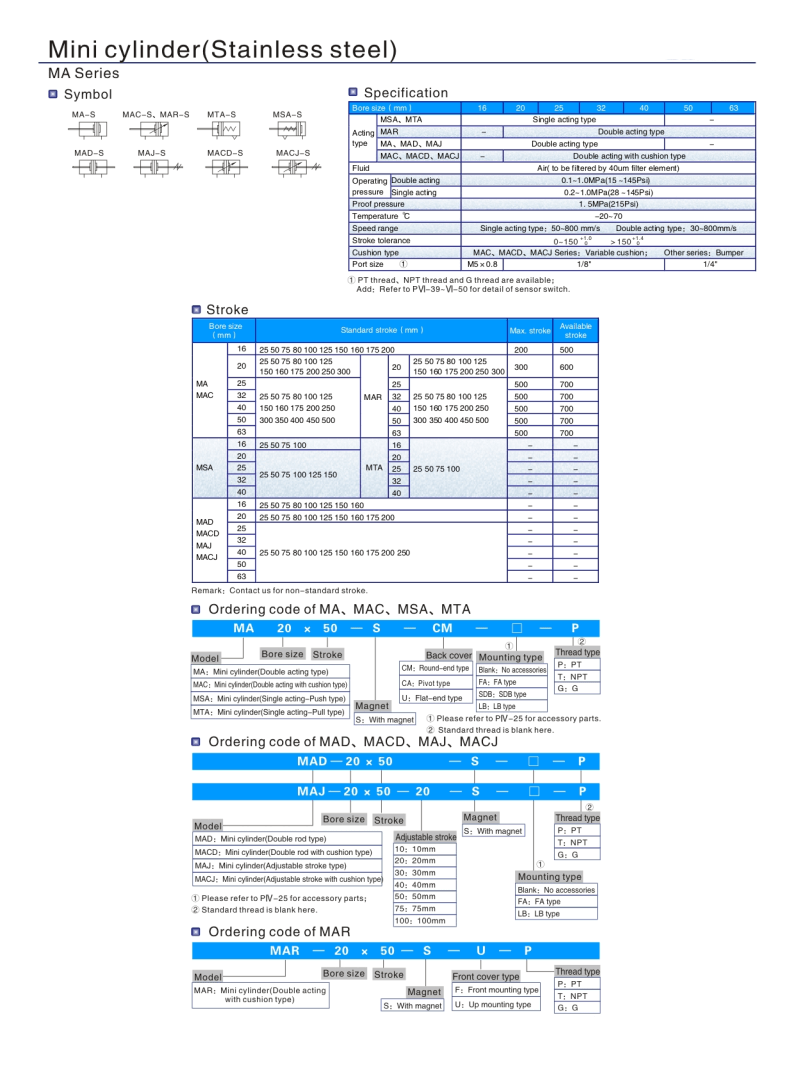

Parameter Details

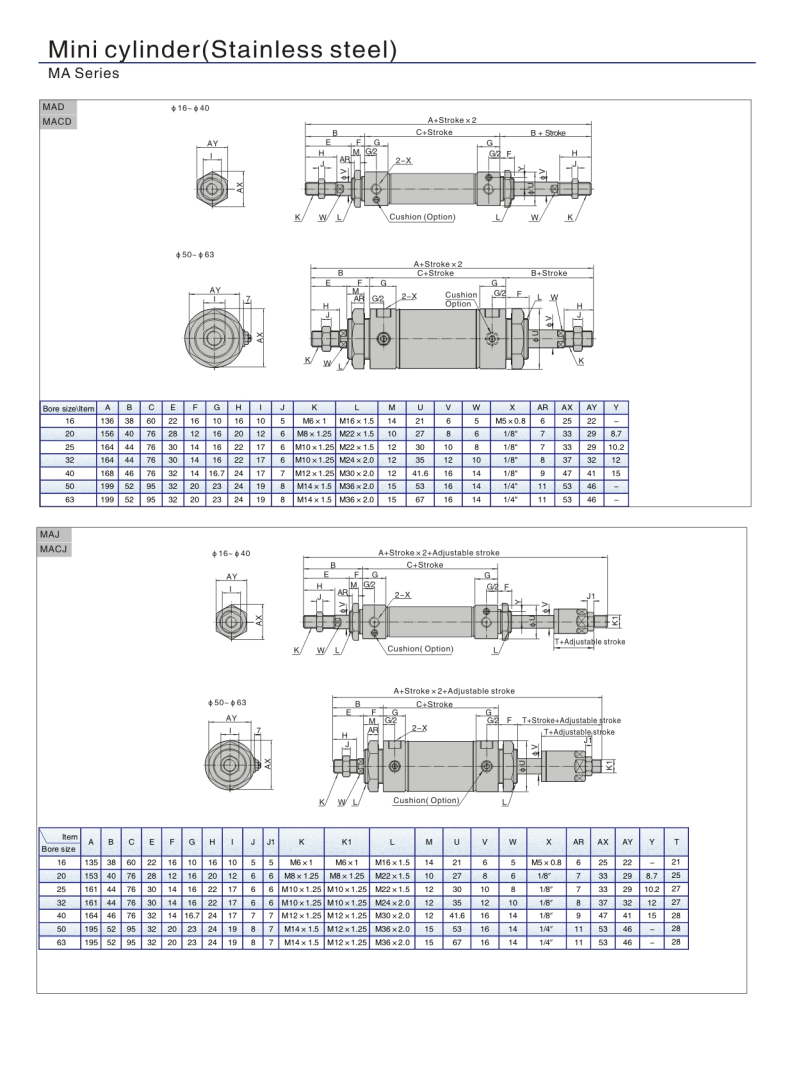

Bore Size (mm) 16/20/25/32/40/50/63

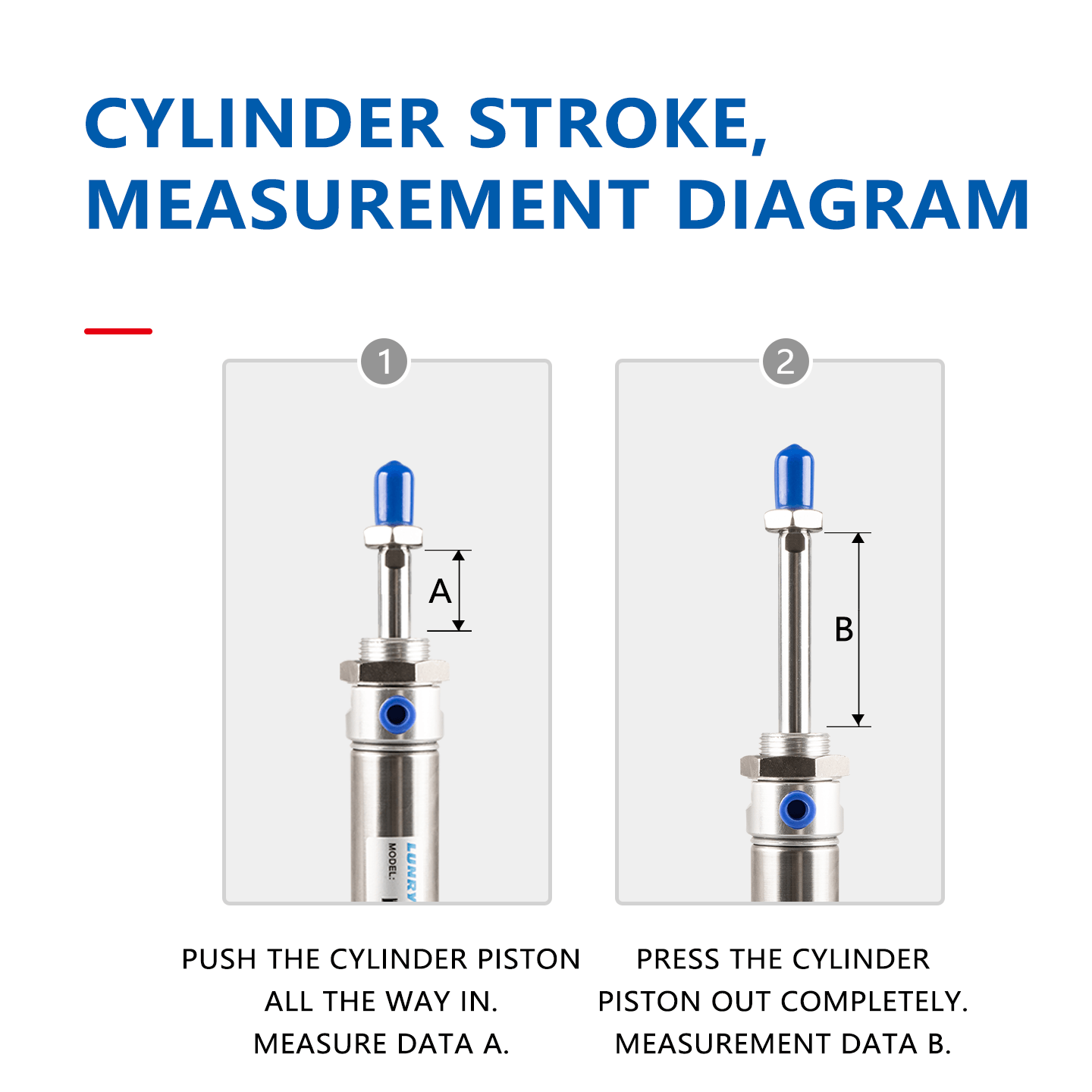

Adjustable Stroke (mm) customizable
Standard Stroke (mm) 25/50/75/100/125/150/200/250/300 (longer on request)
Operating Pressure 0.1–1.0 MPa (1–14.5 psi)
Operating Temp -20°C to +80°C (-4°F to +176°F)
Sealing Material NBR (standard) / FKM (optional, high-temp/corrosive use)
Tube Material 304 stainless steel
Piston Rod Material Hardened stainless steel (plated, corrosion-resistant)
Mounting Types Foot / Flange / Clevis / Trunnion / Rear pivot
Magnetic Feature Full-range magnetic piston (standard)
Connection Type Precision crimped (leak-proof)
Shock Absorption Fixed shock-absorbing pads (front/rear covers)
