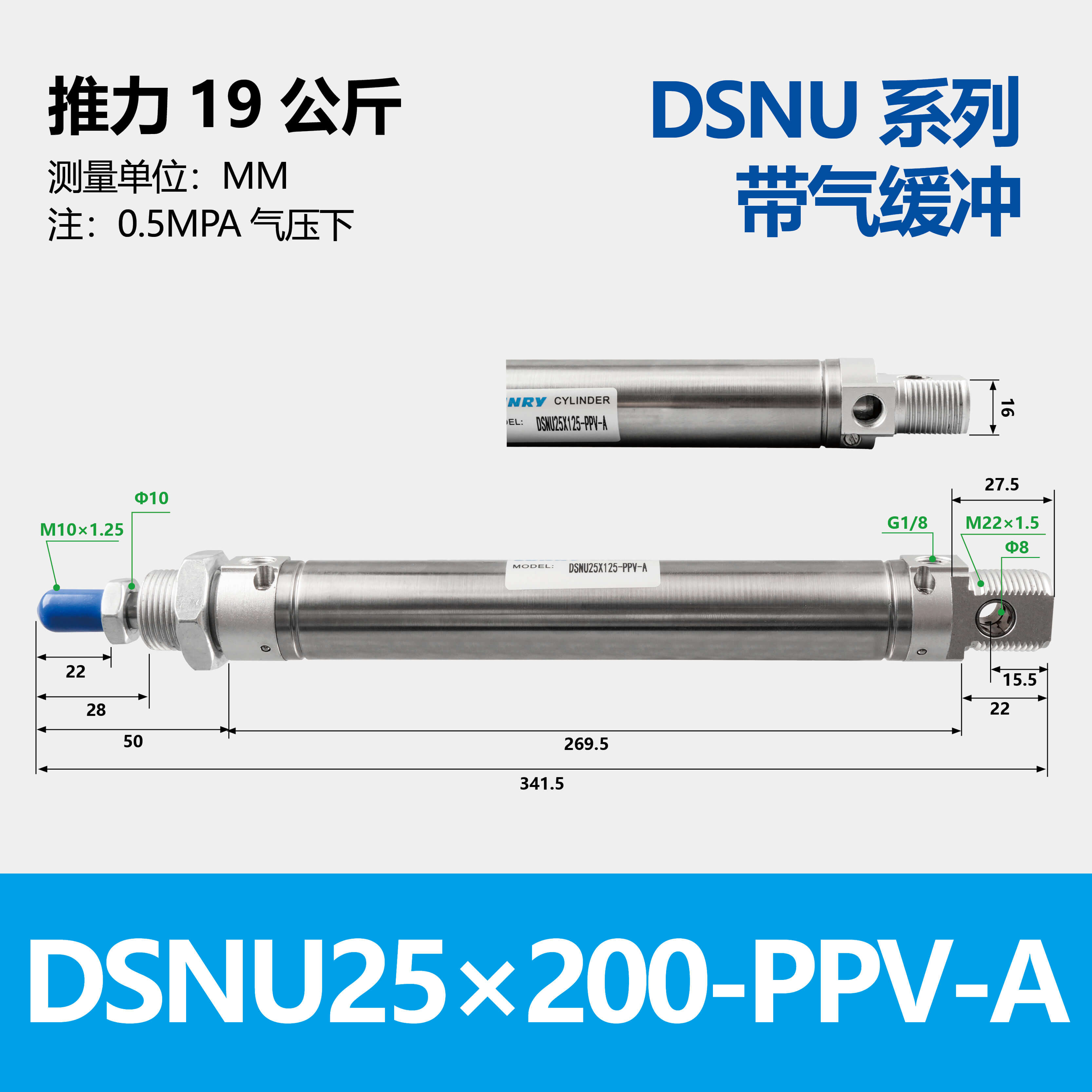

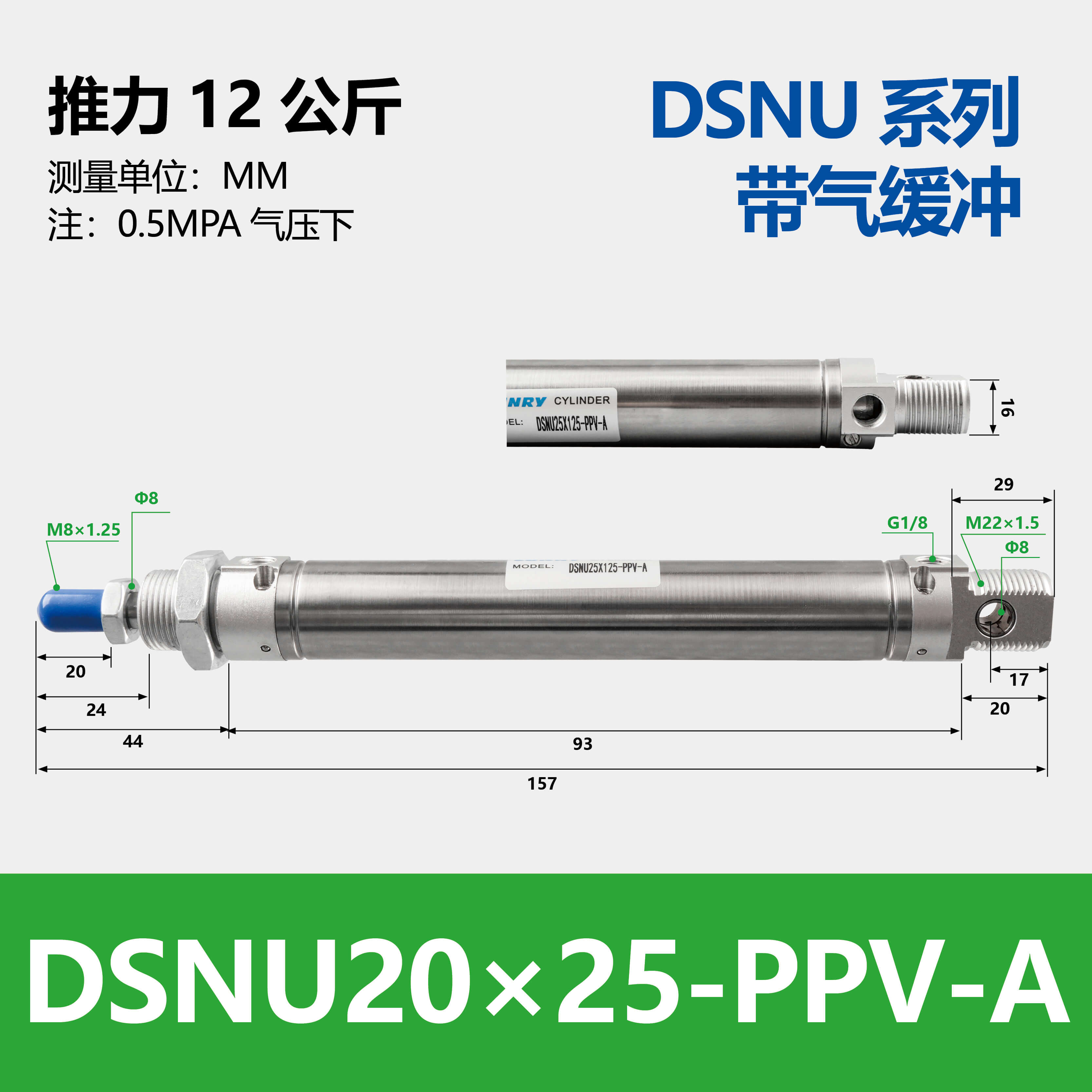

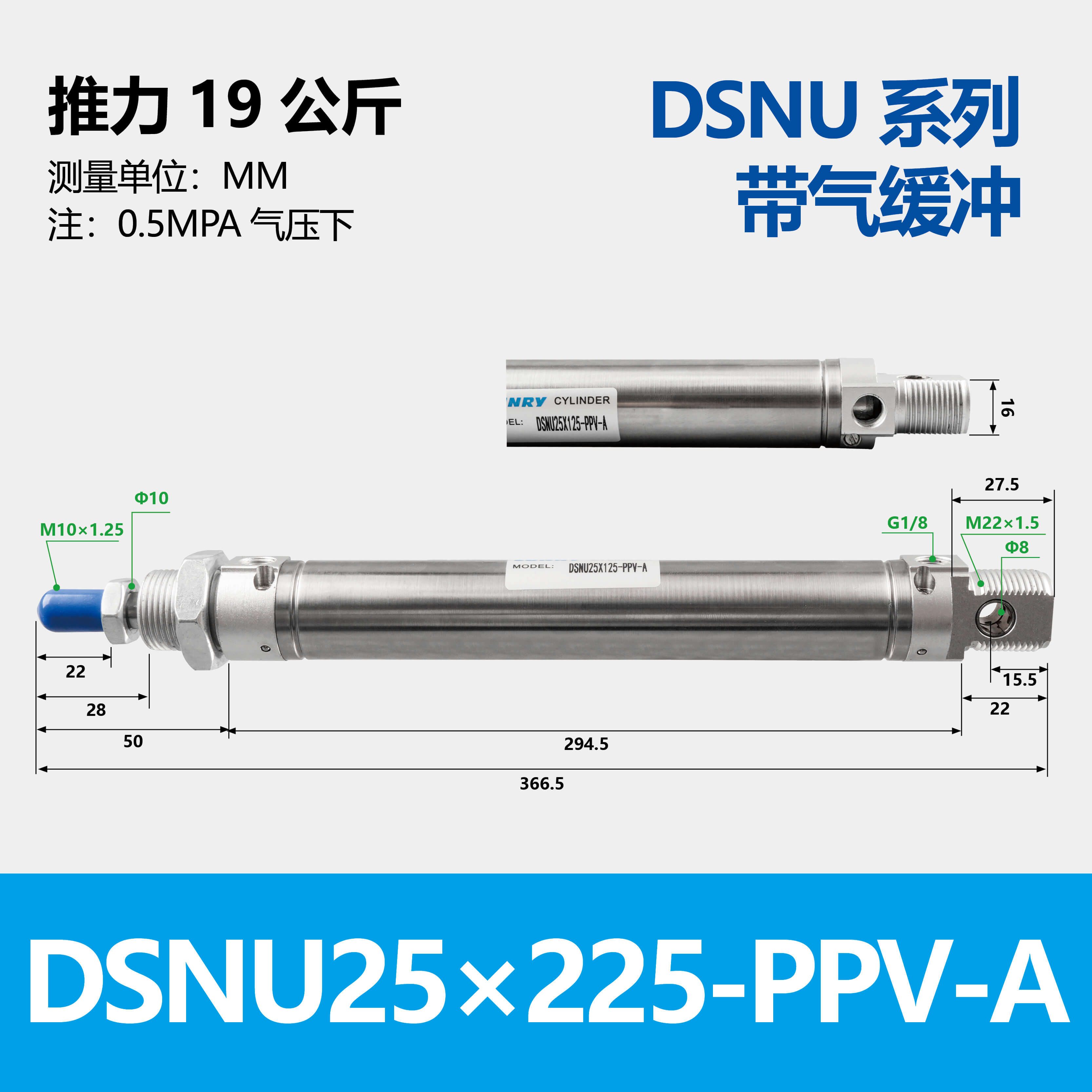

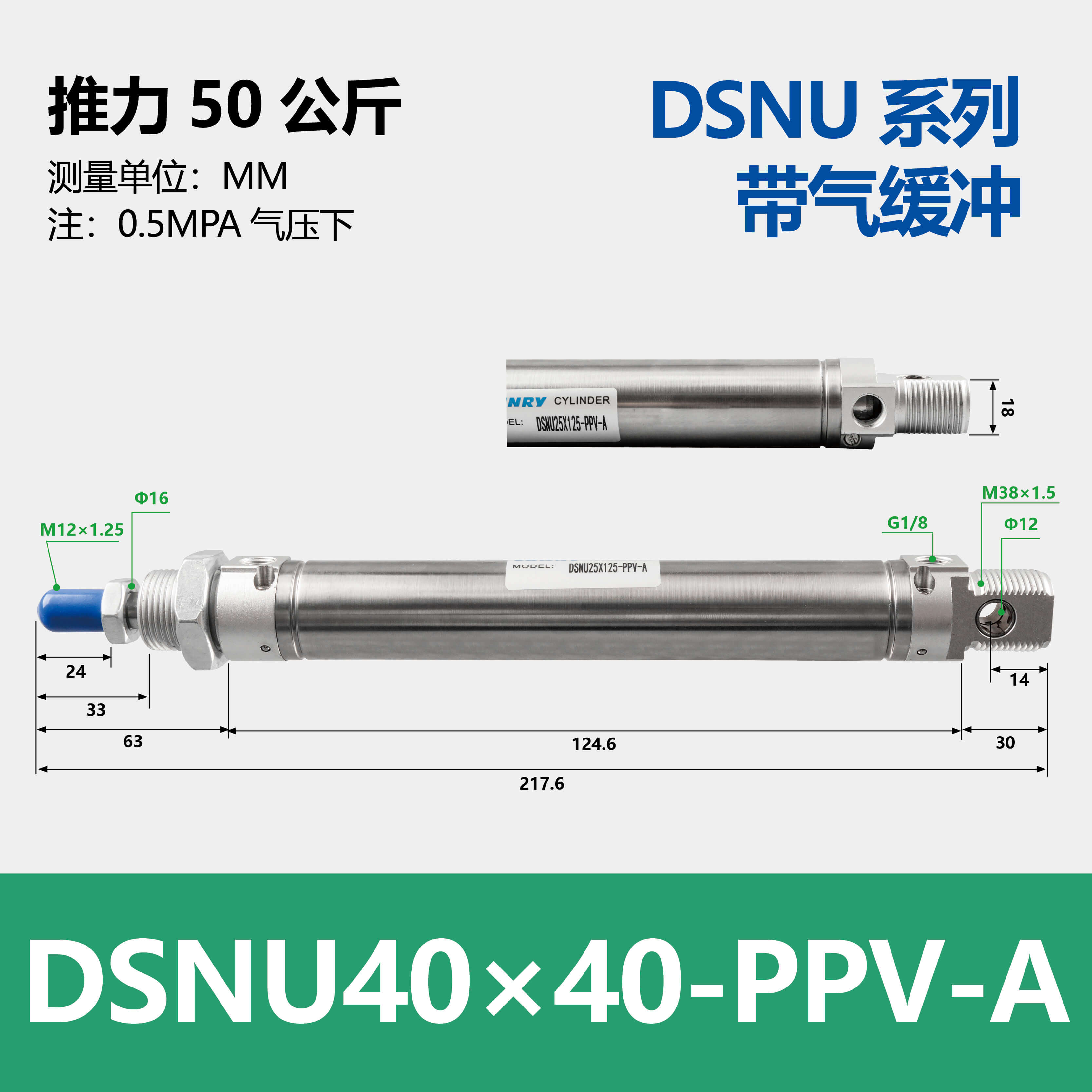

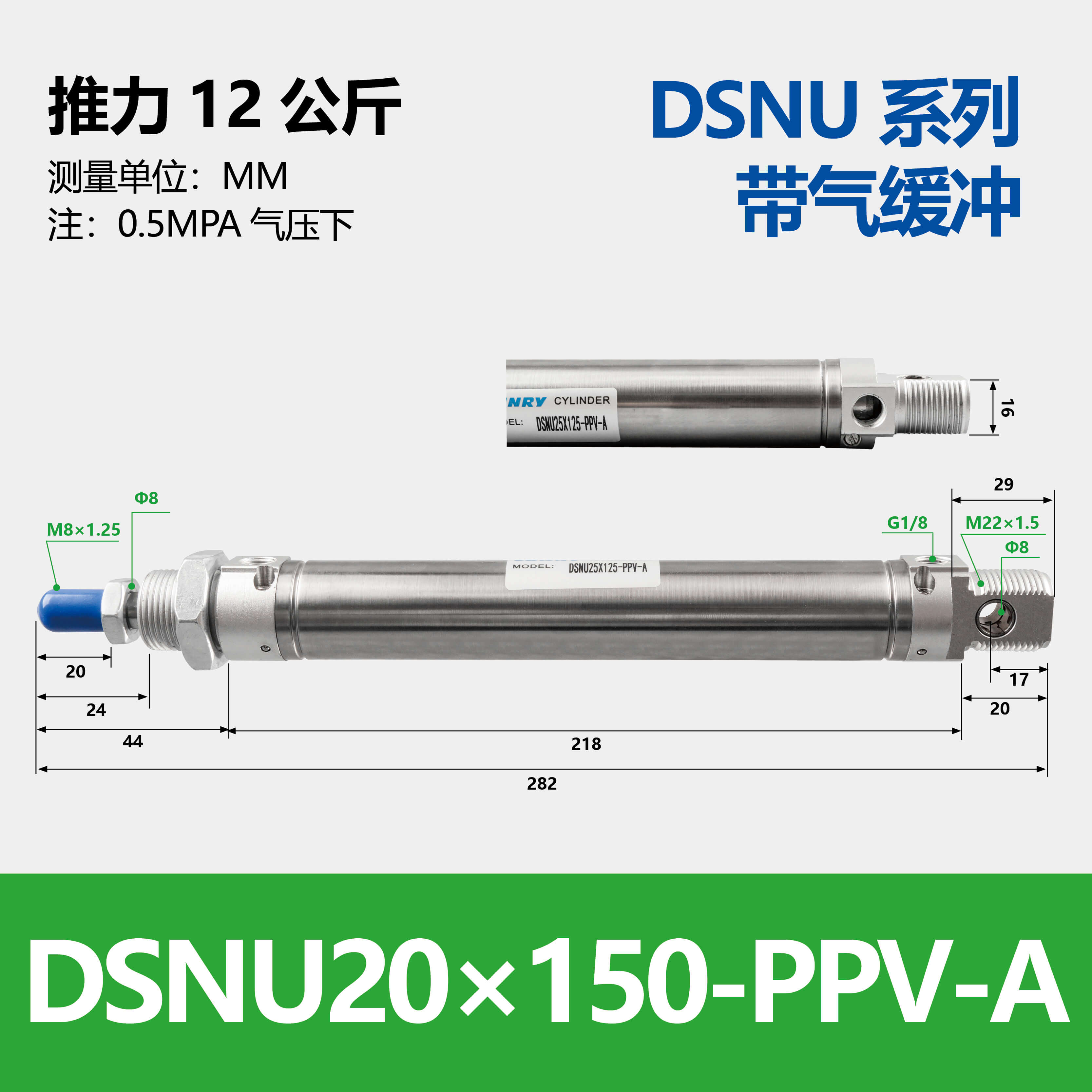

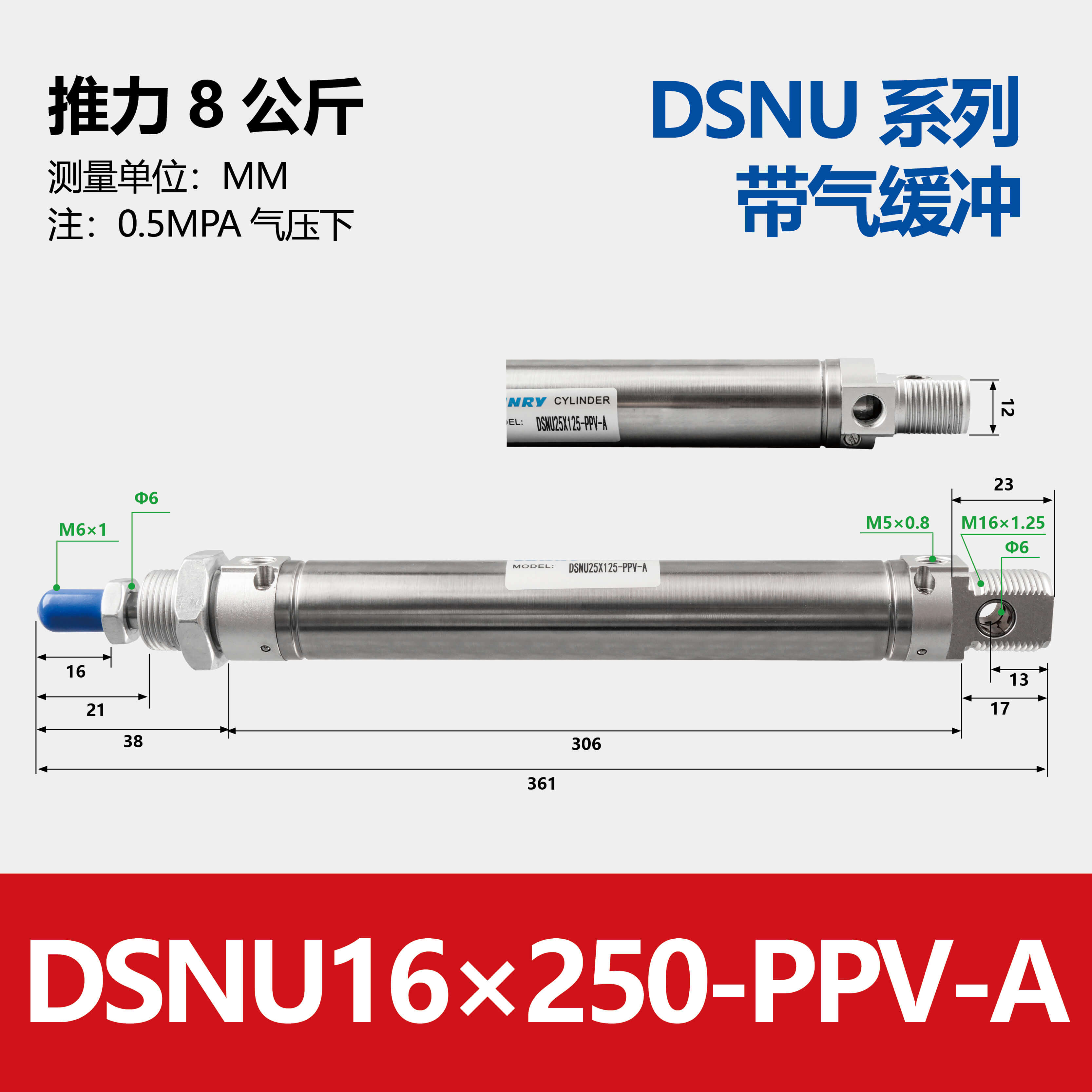

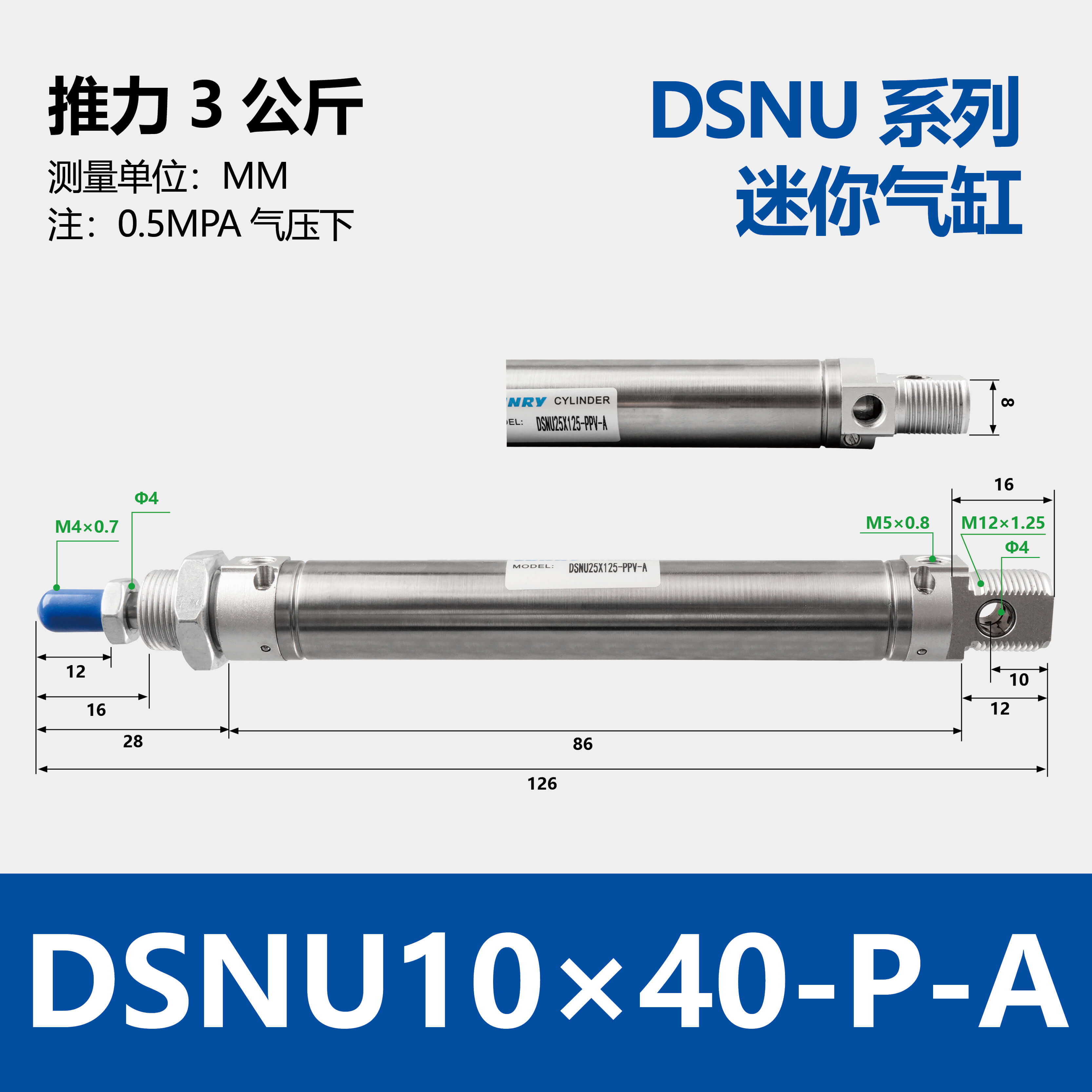

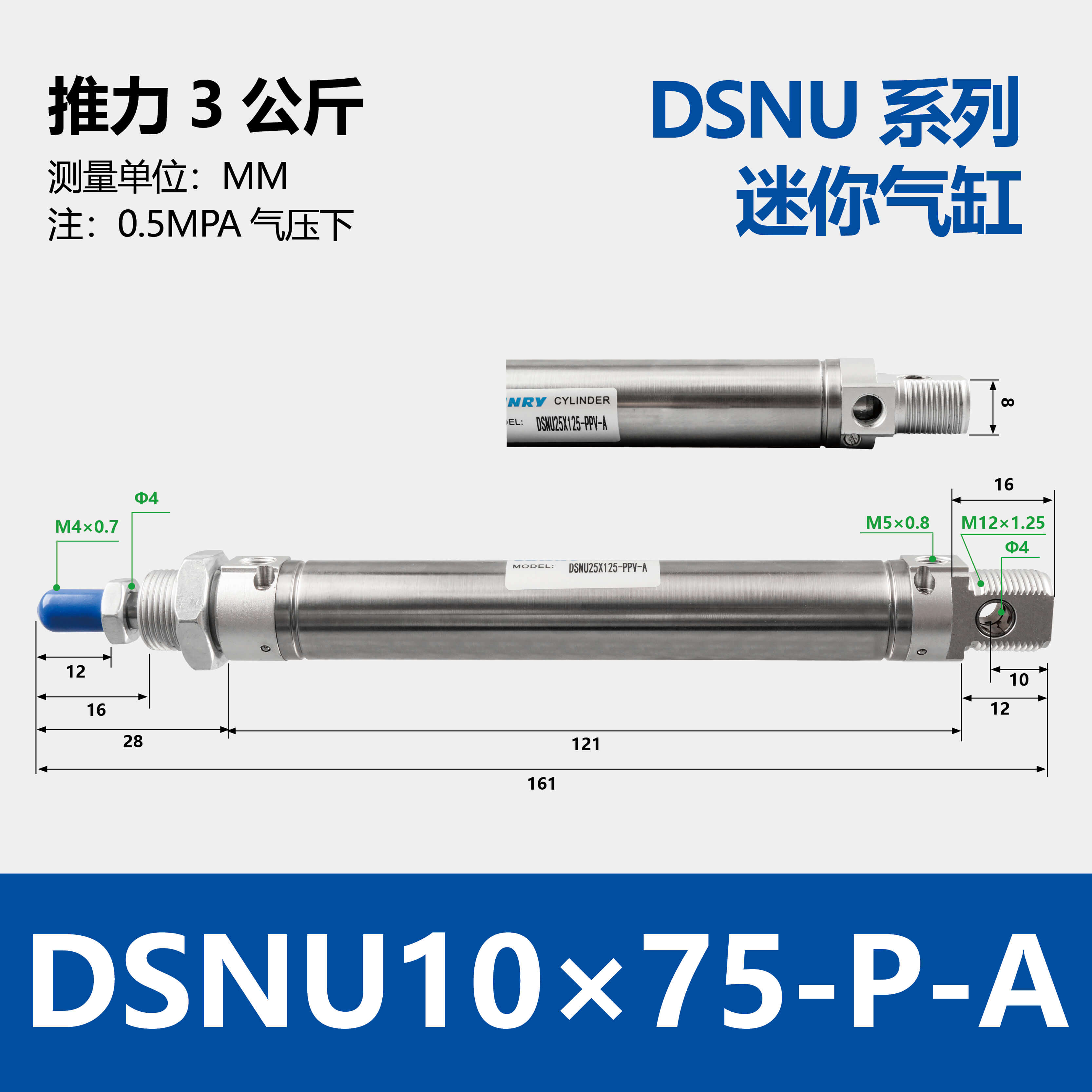

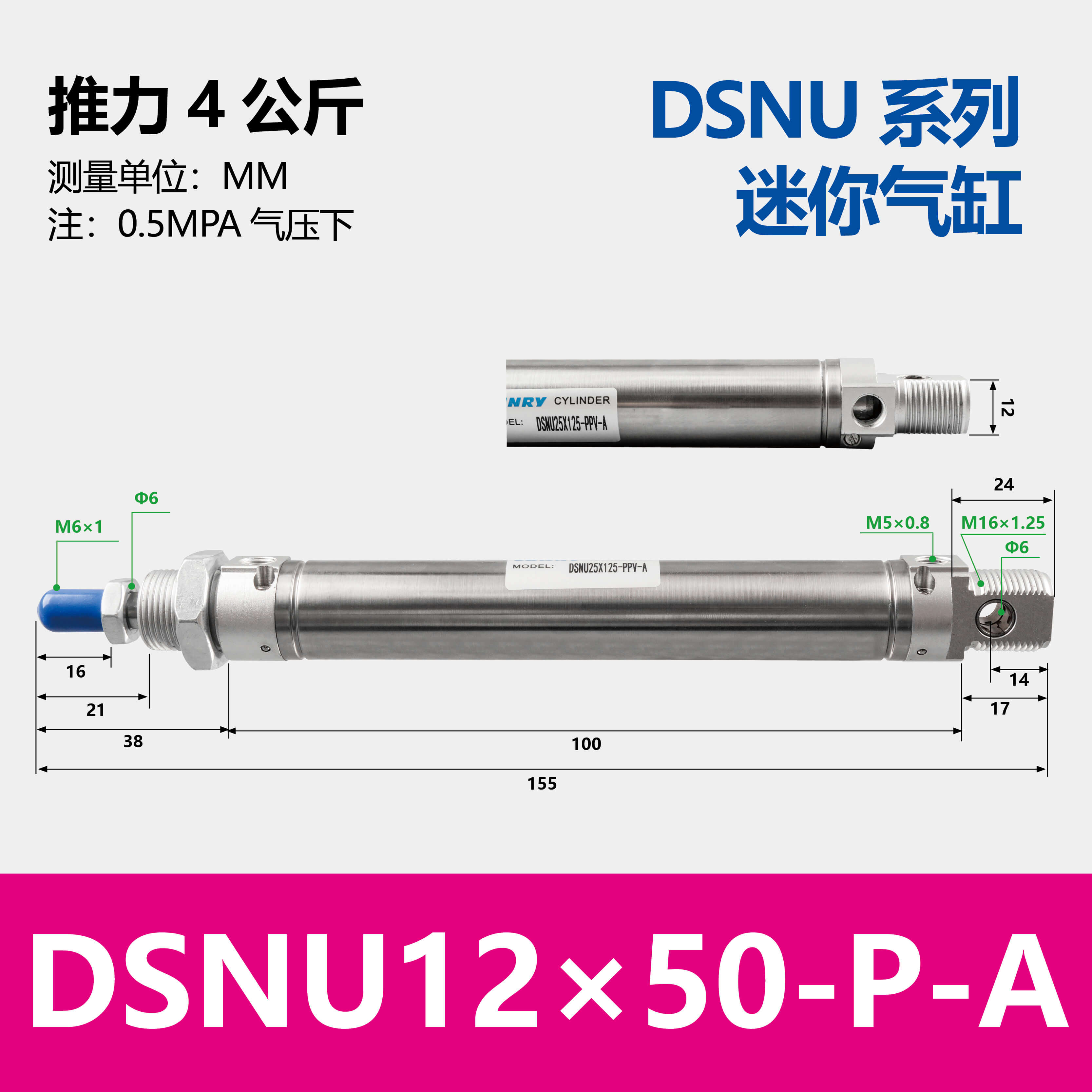

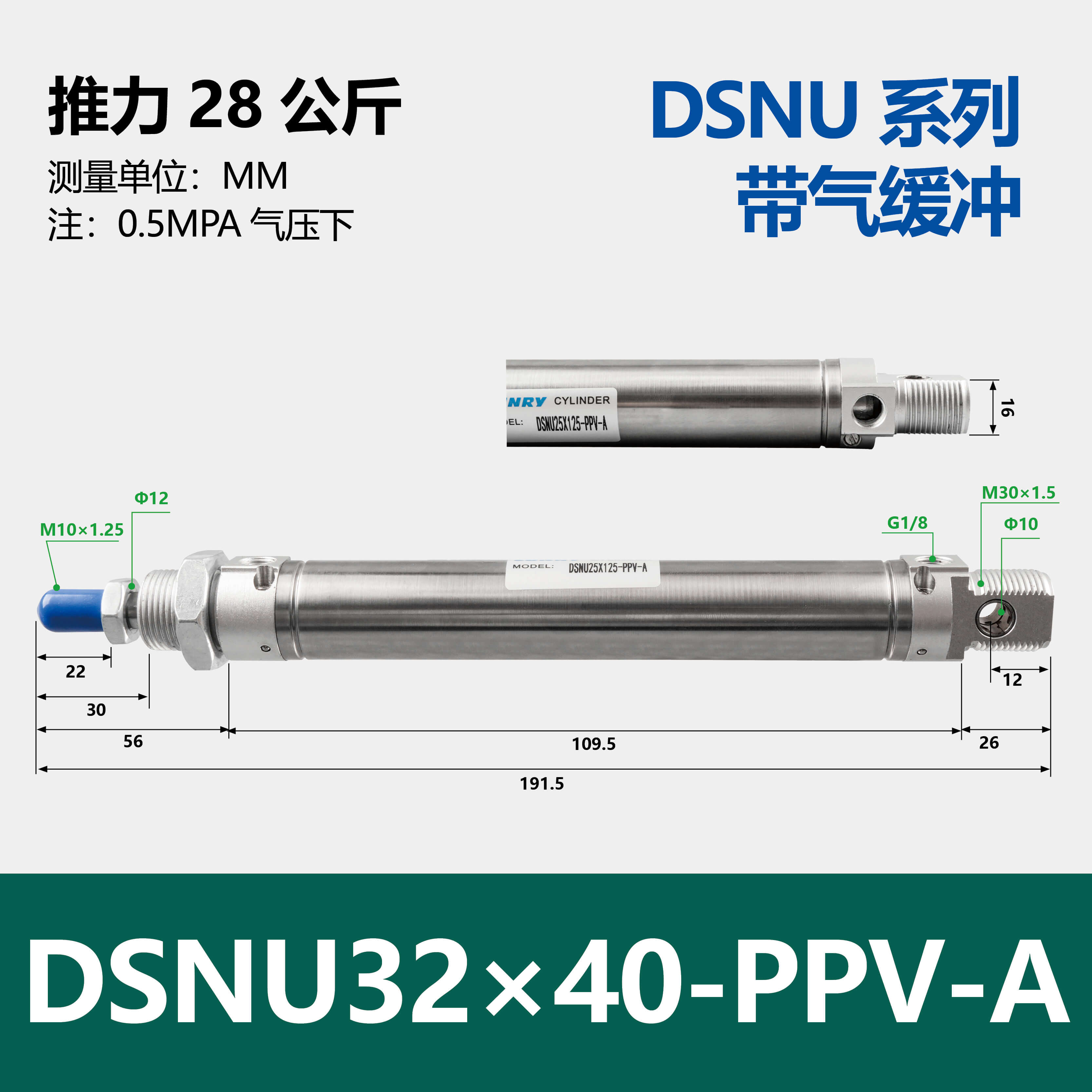

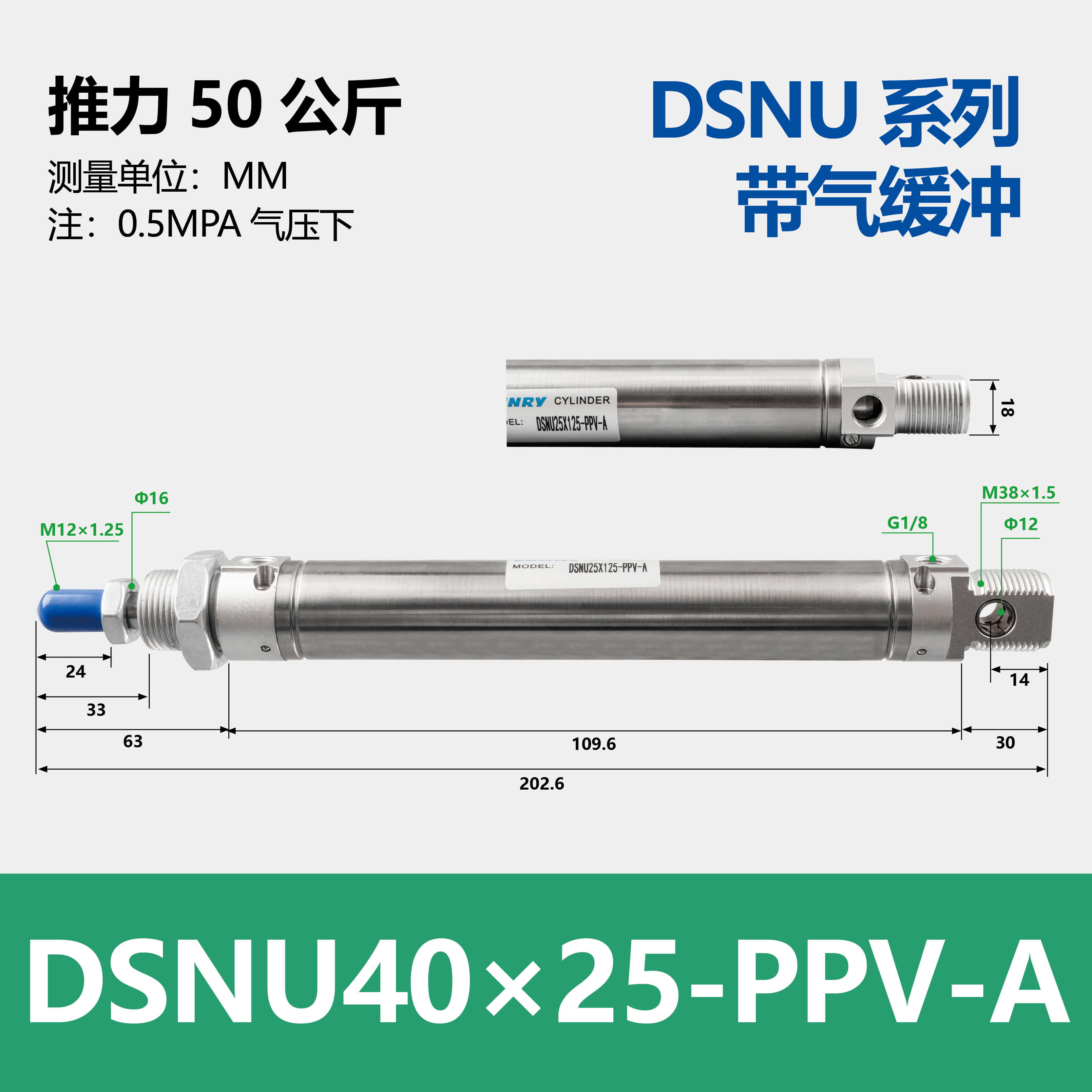

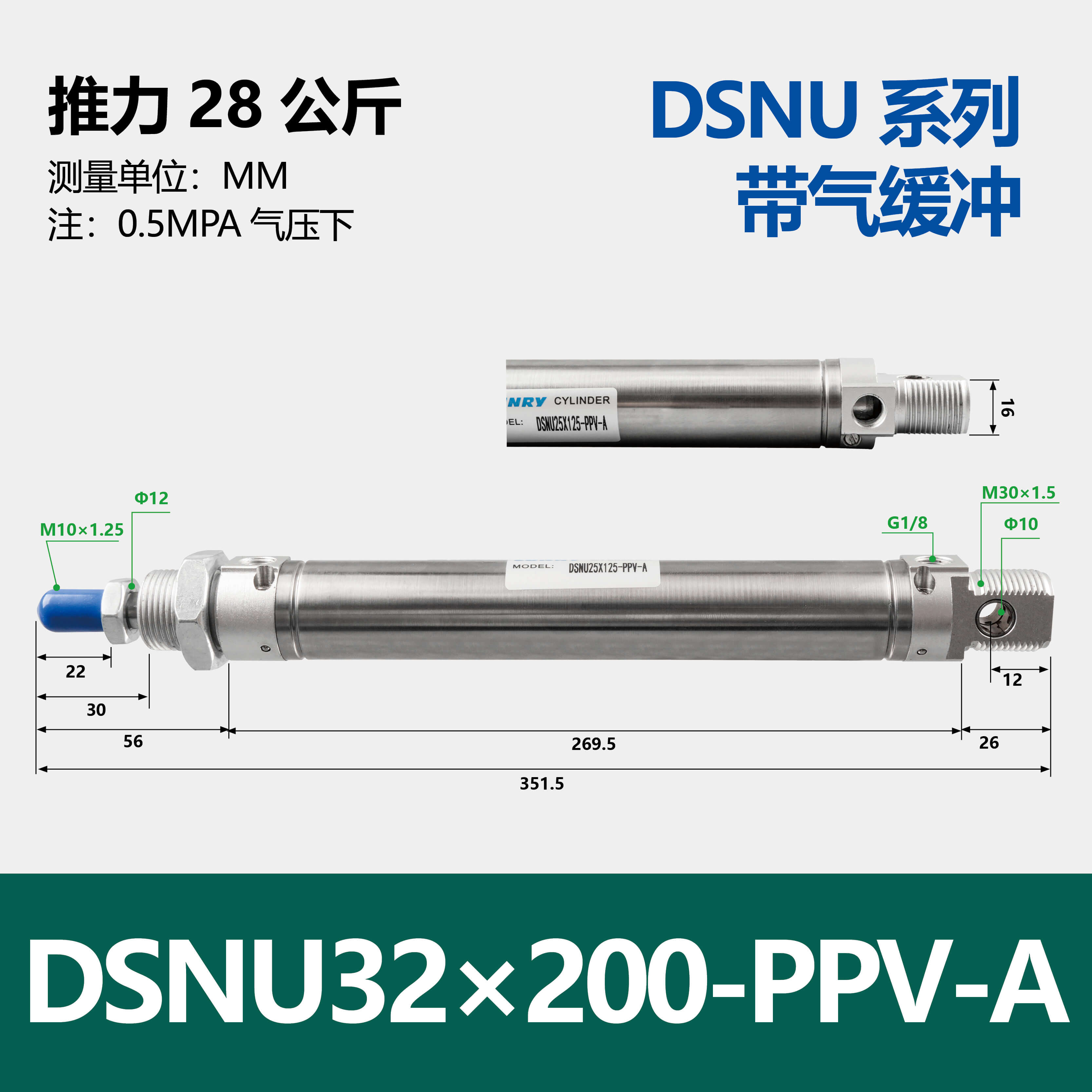

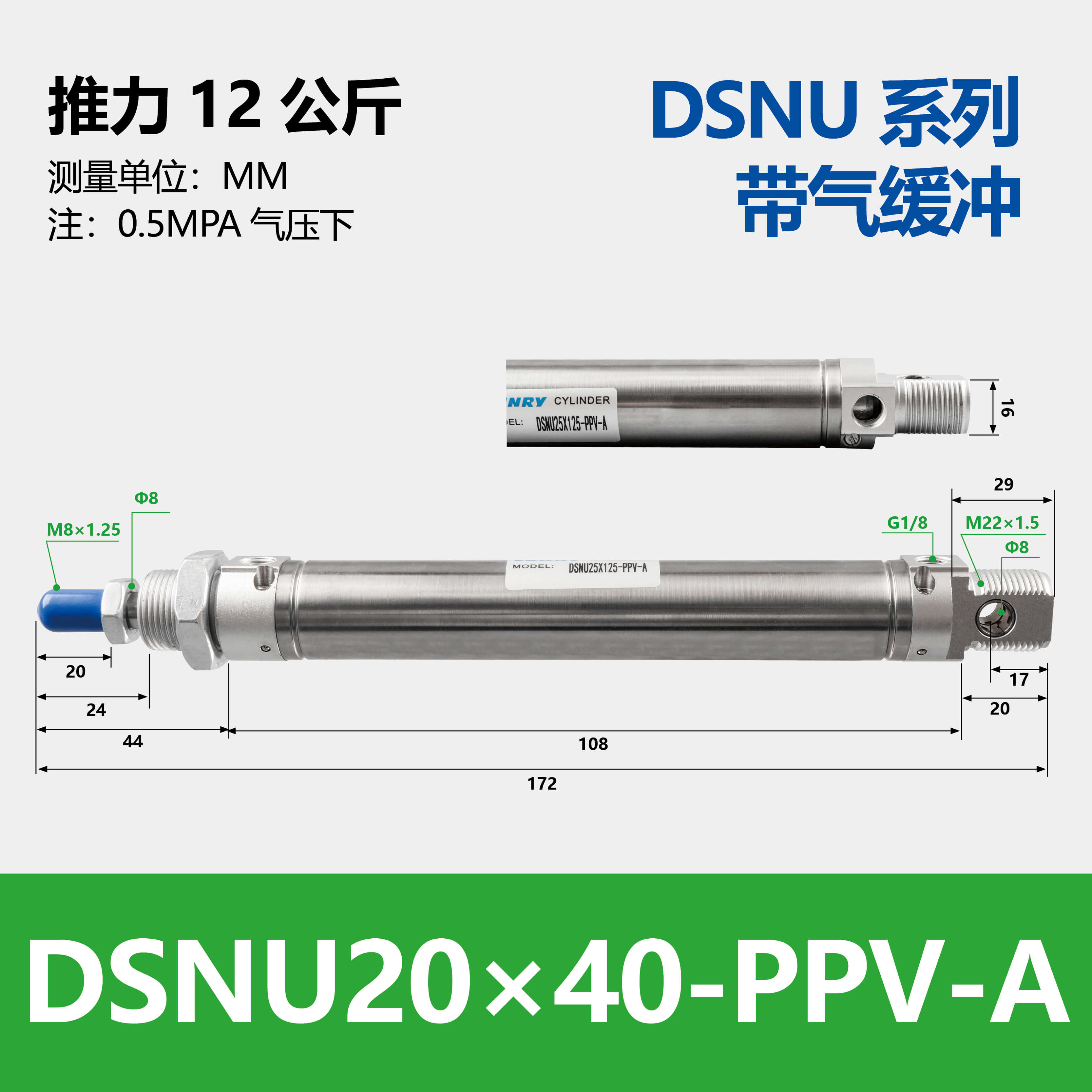

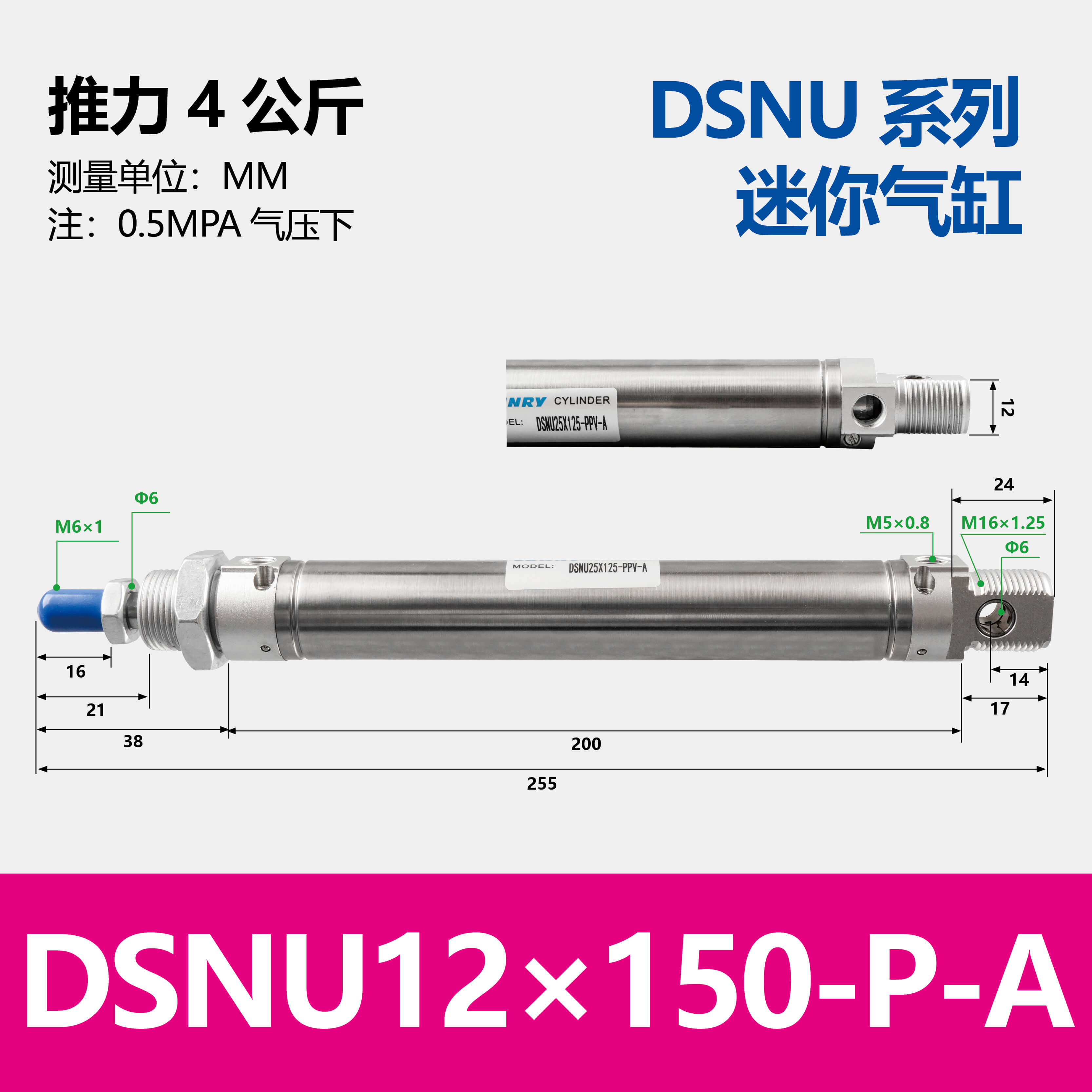

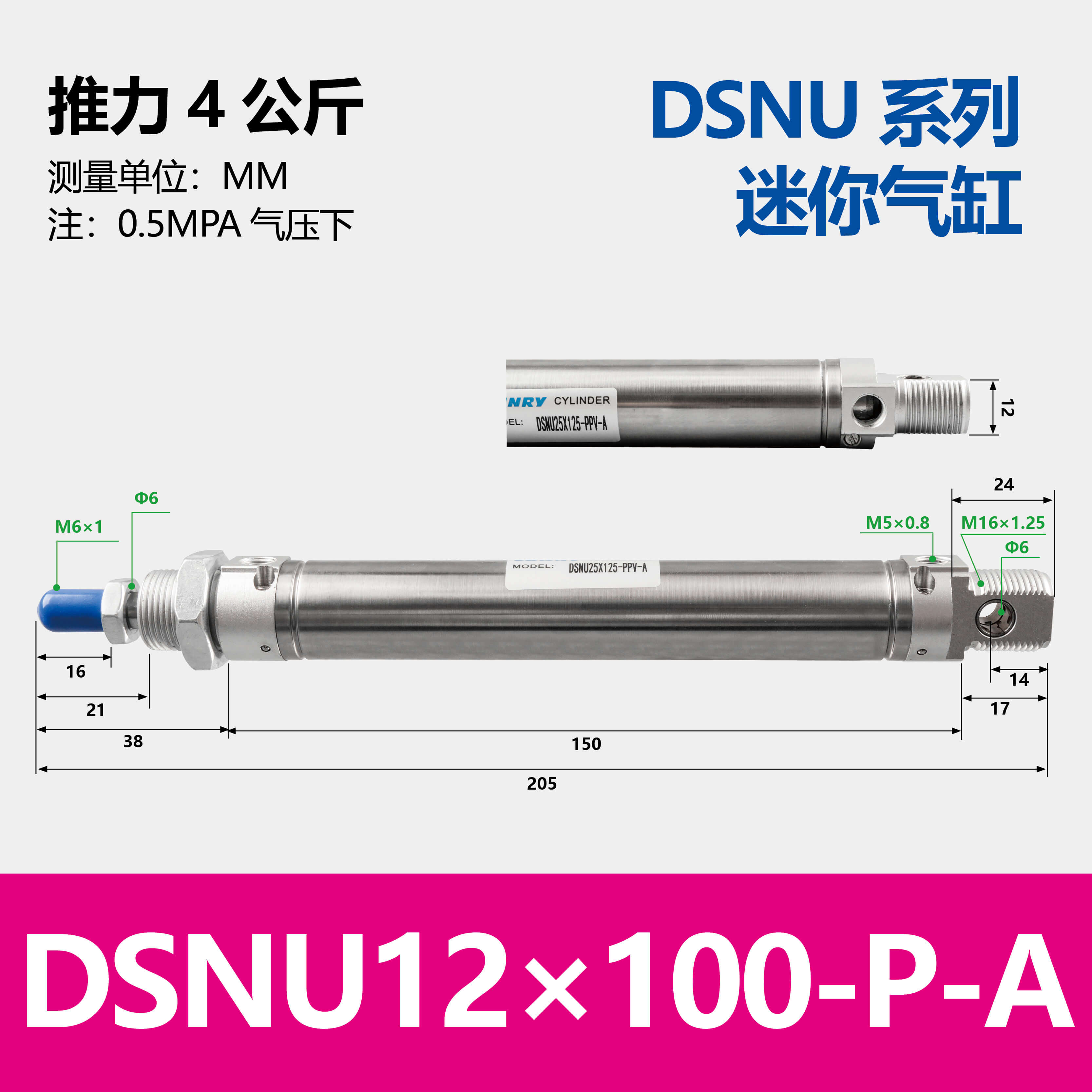

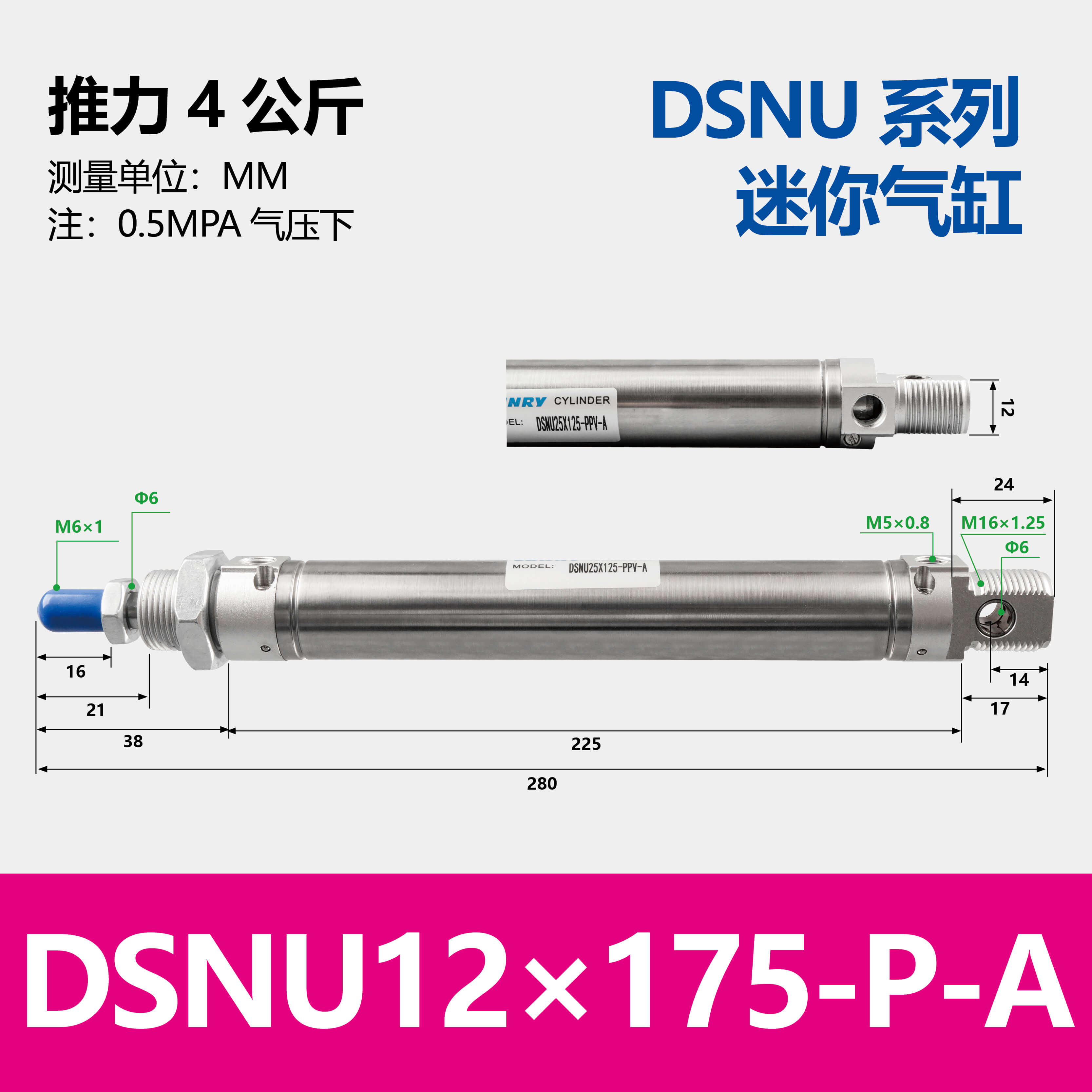

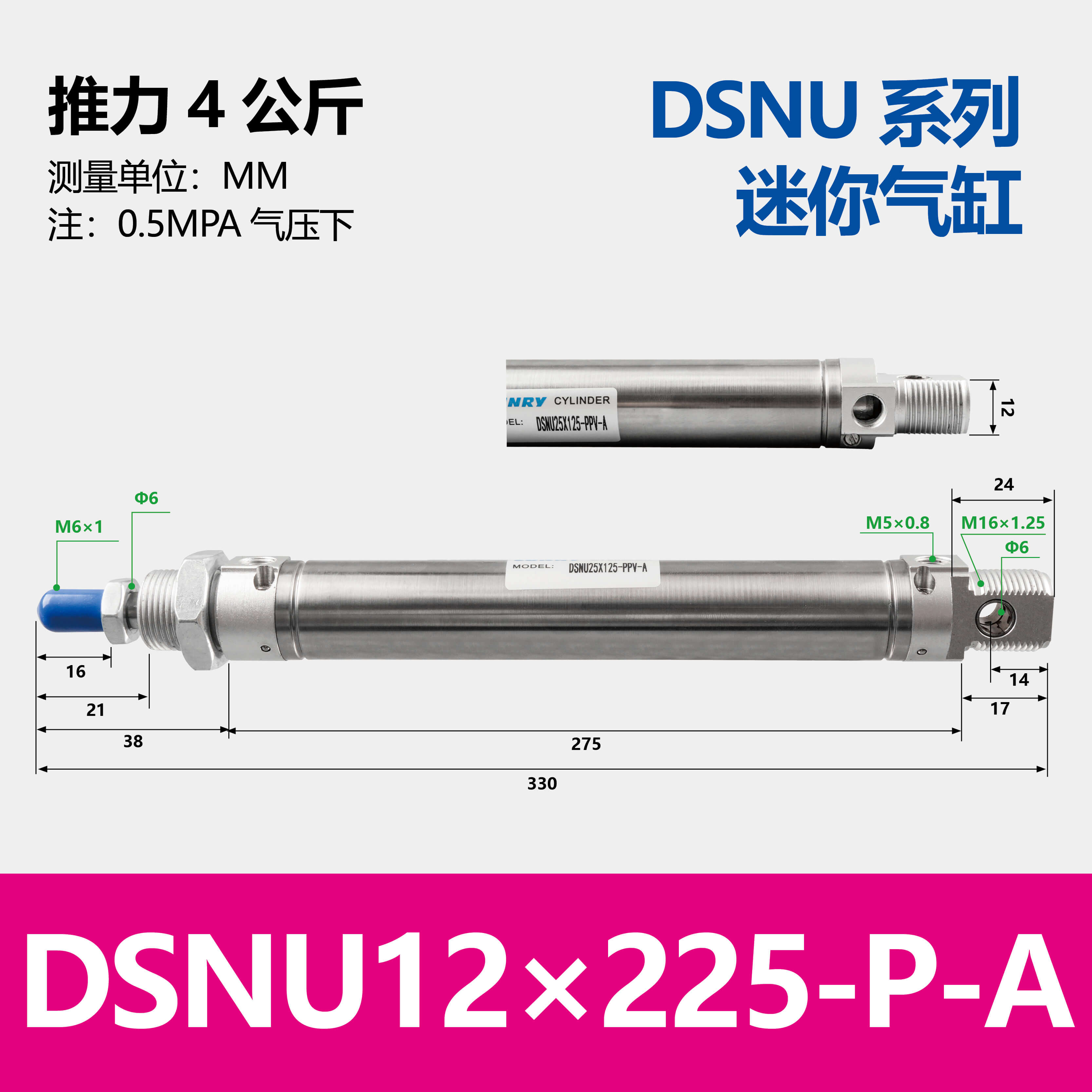

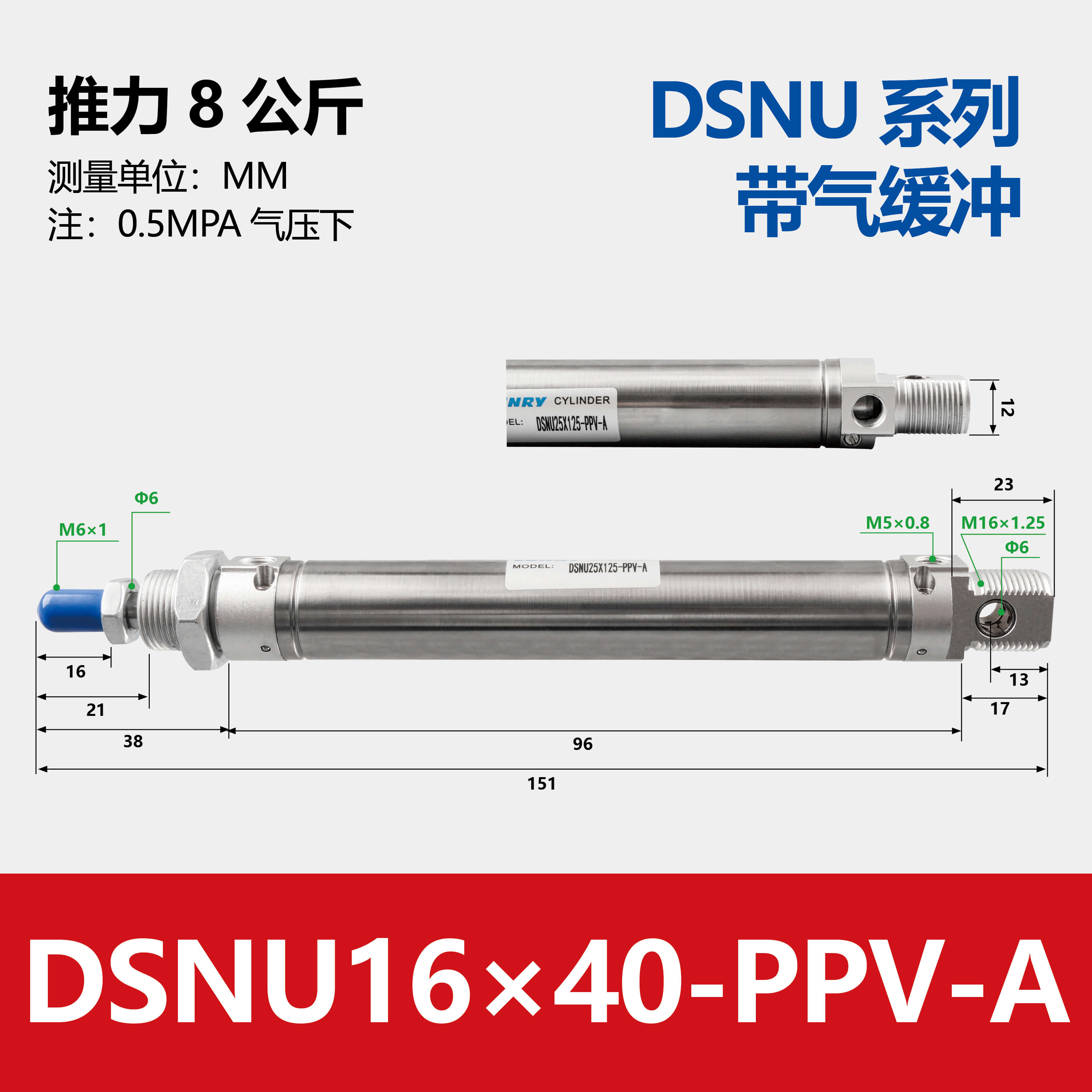

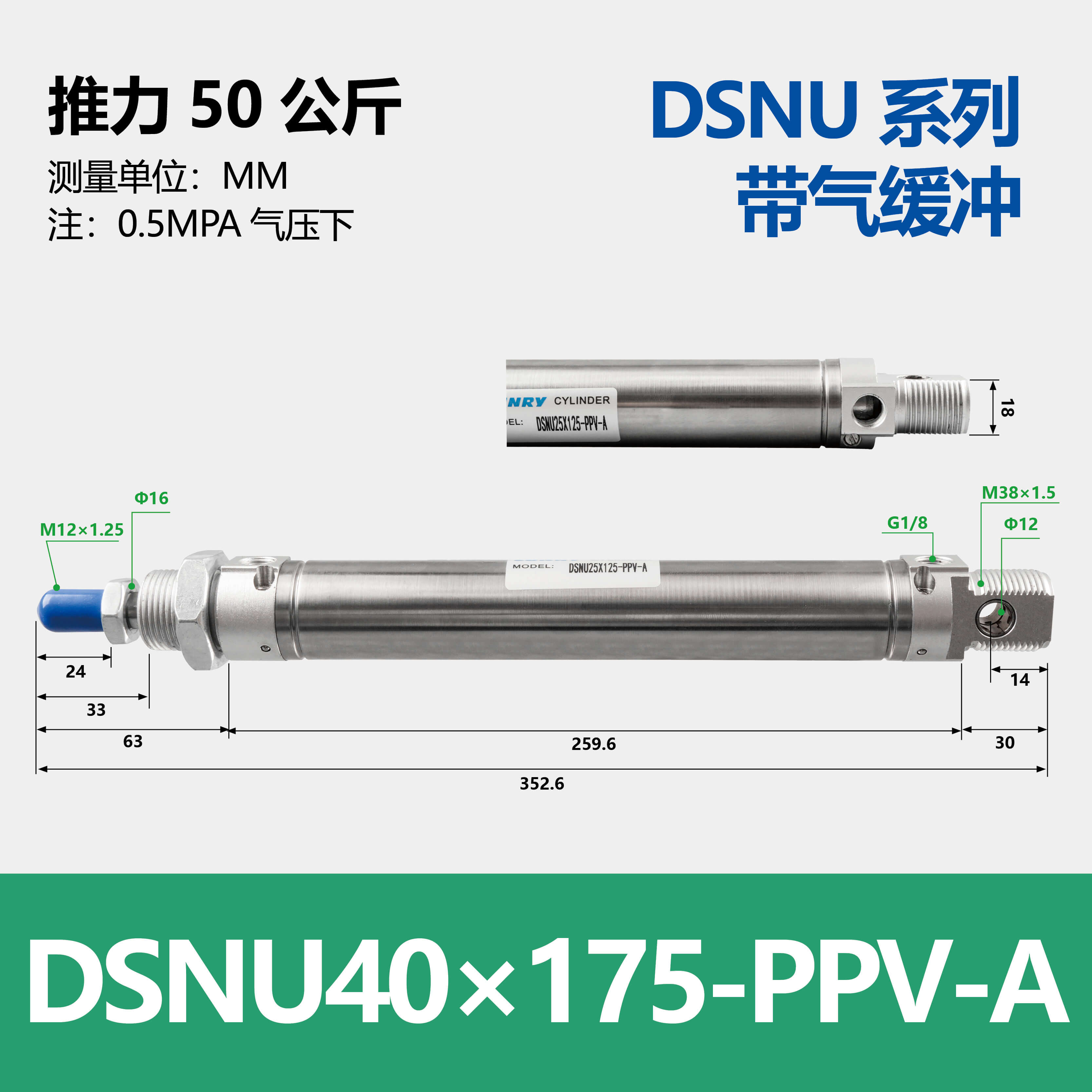

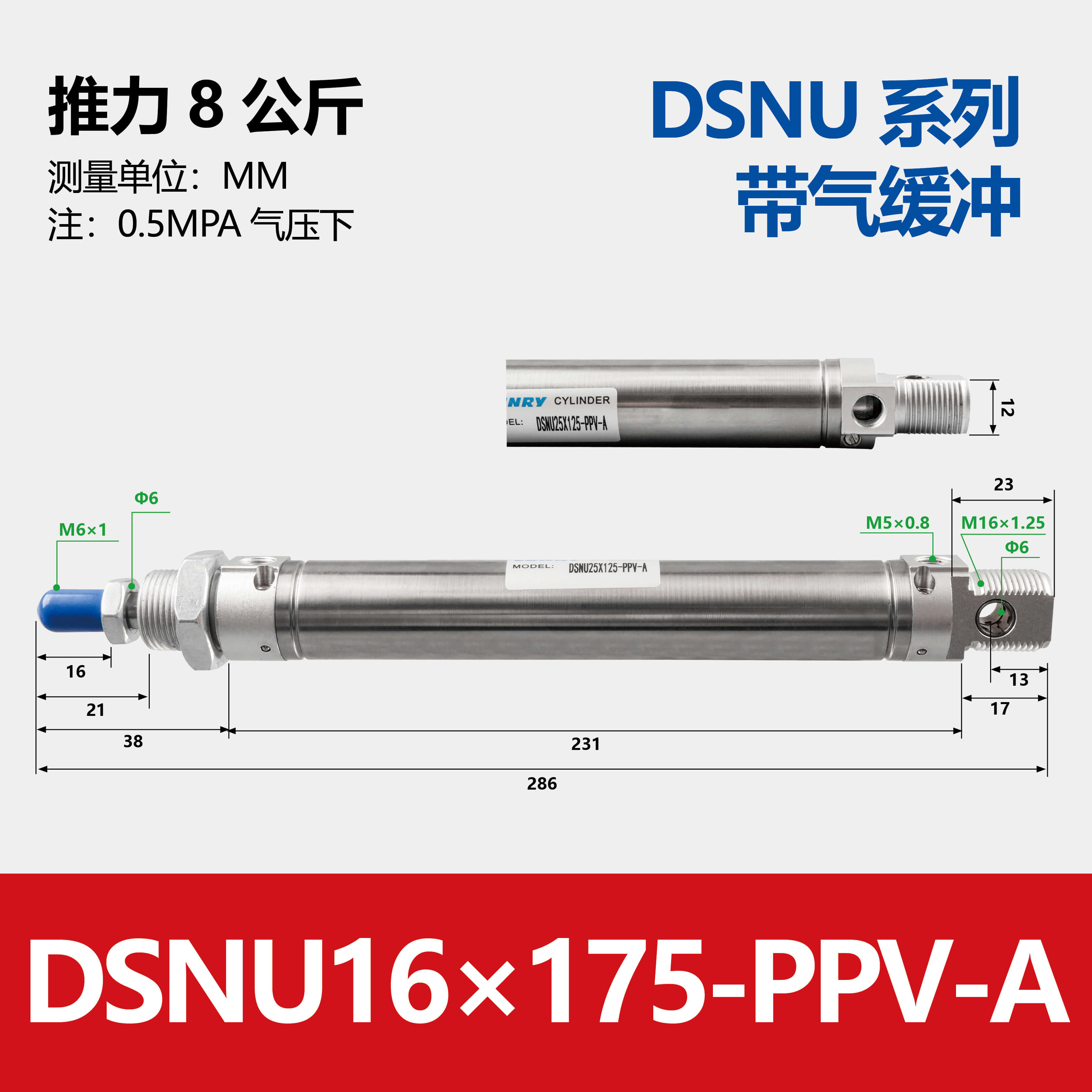

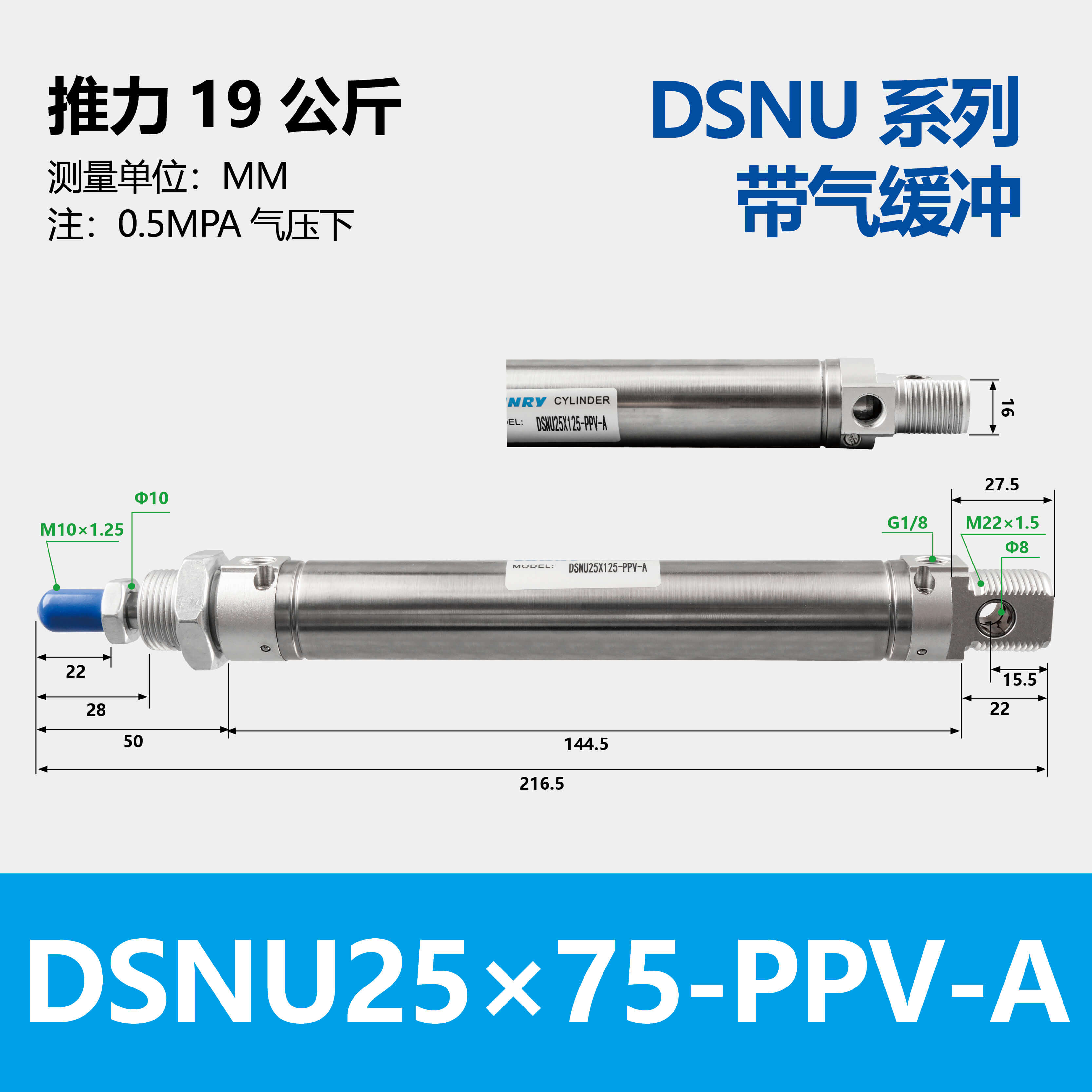

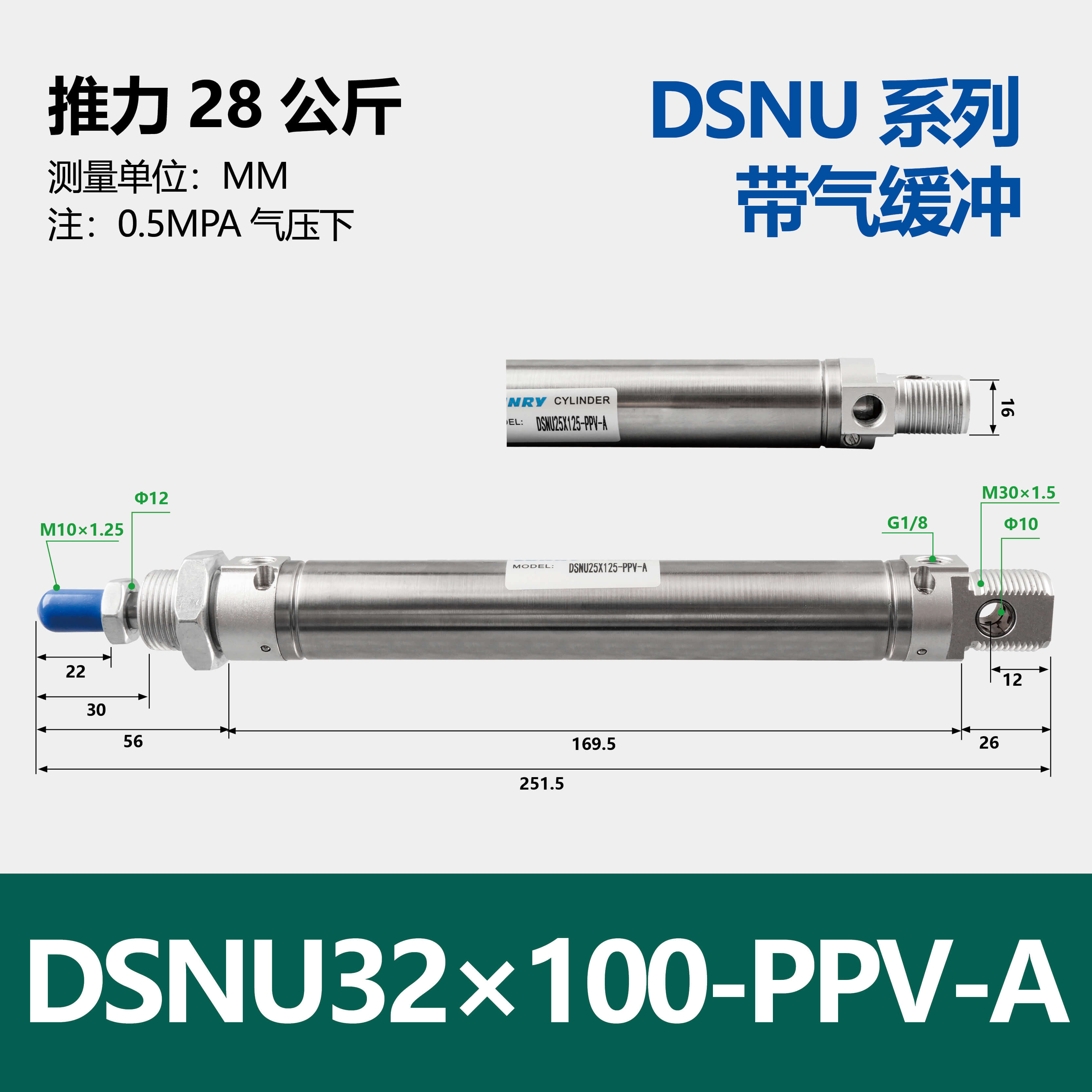

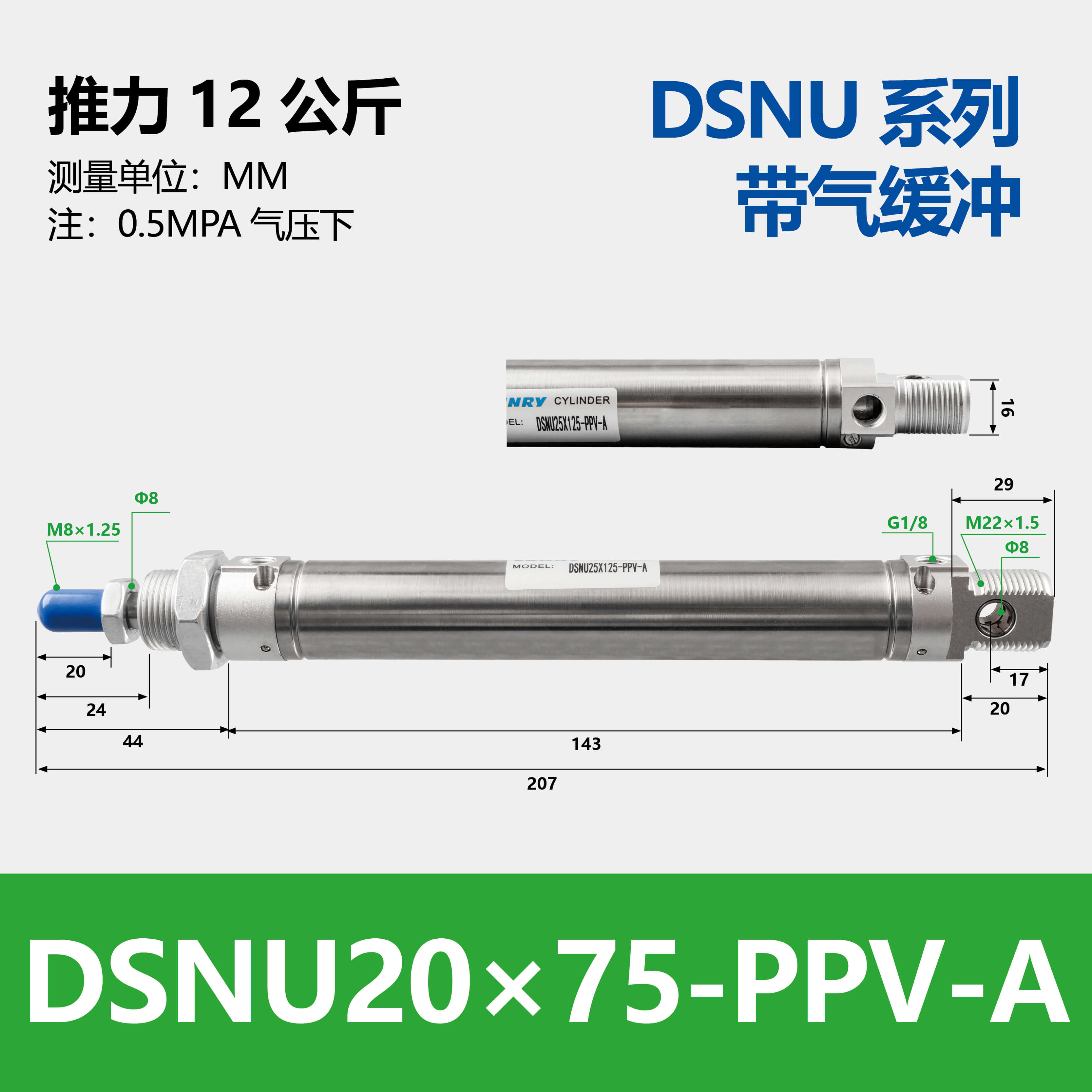

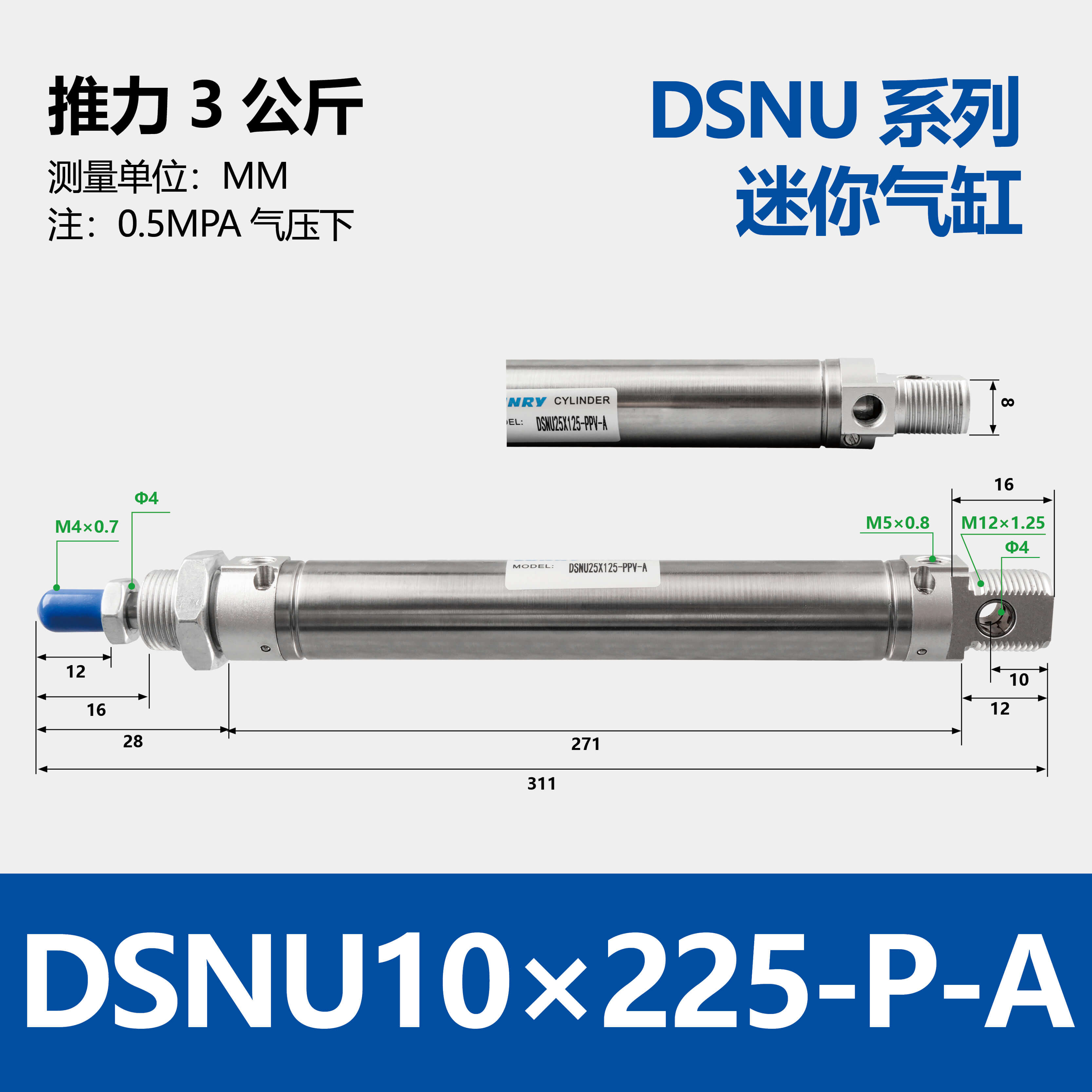

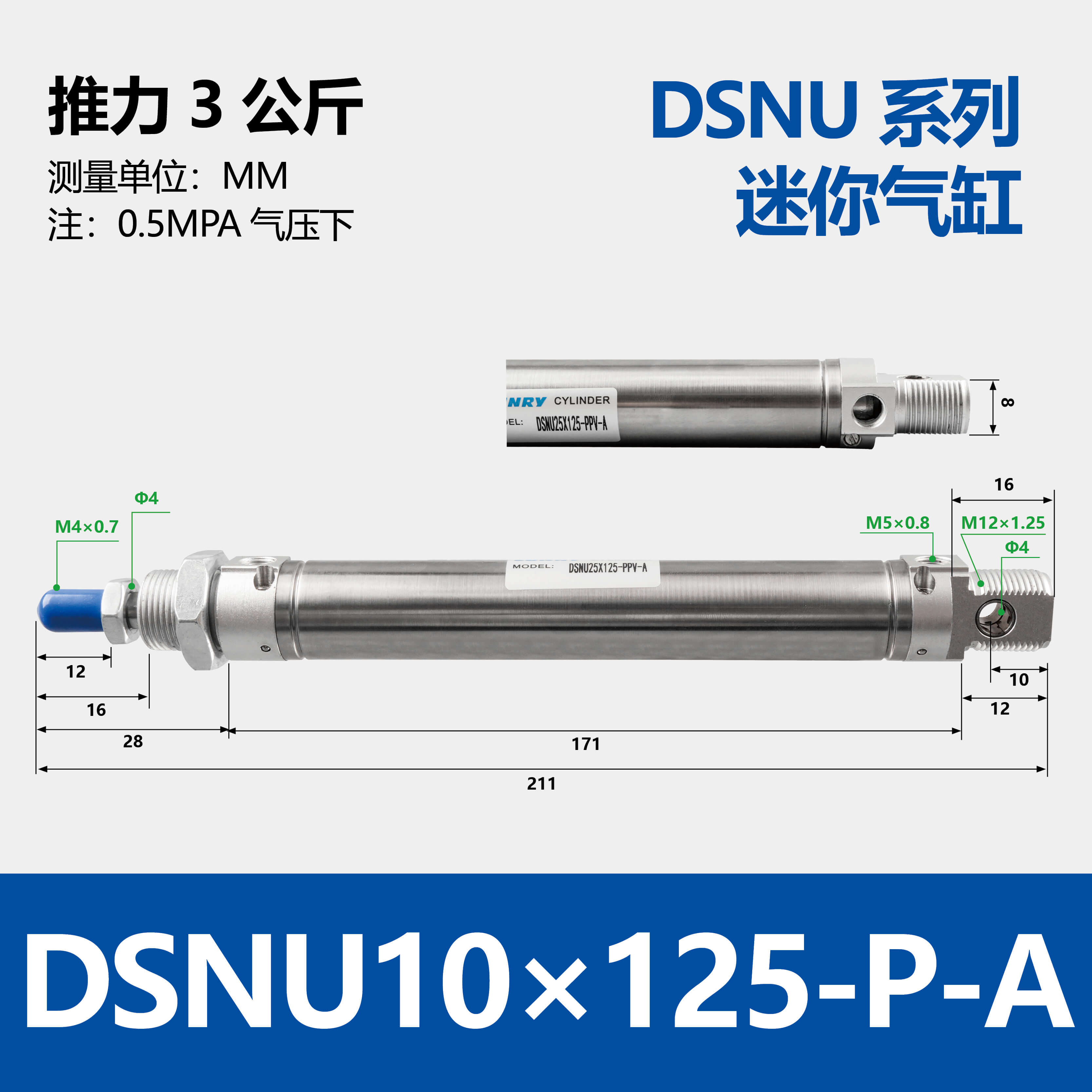

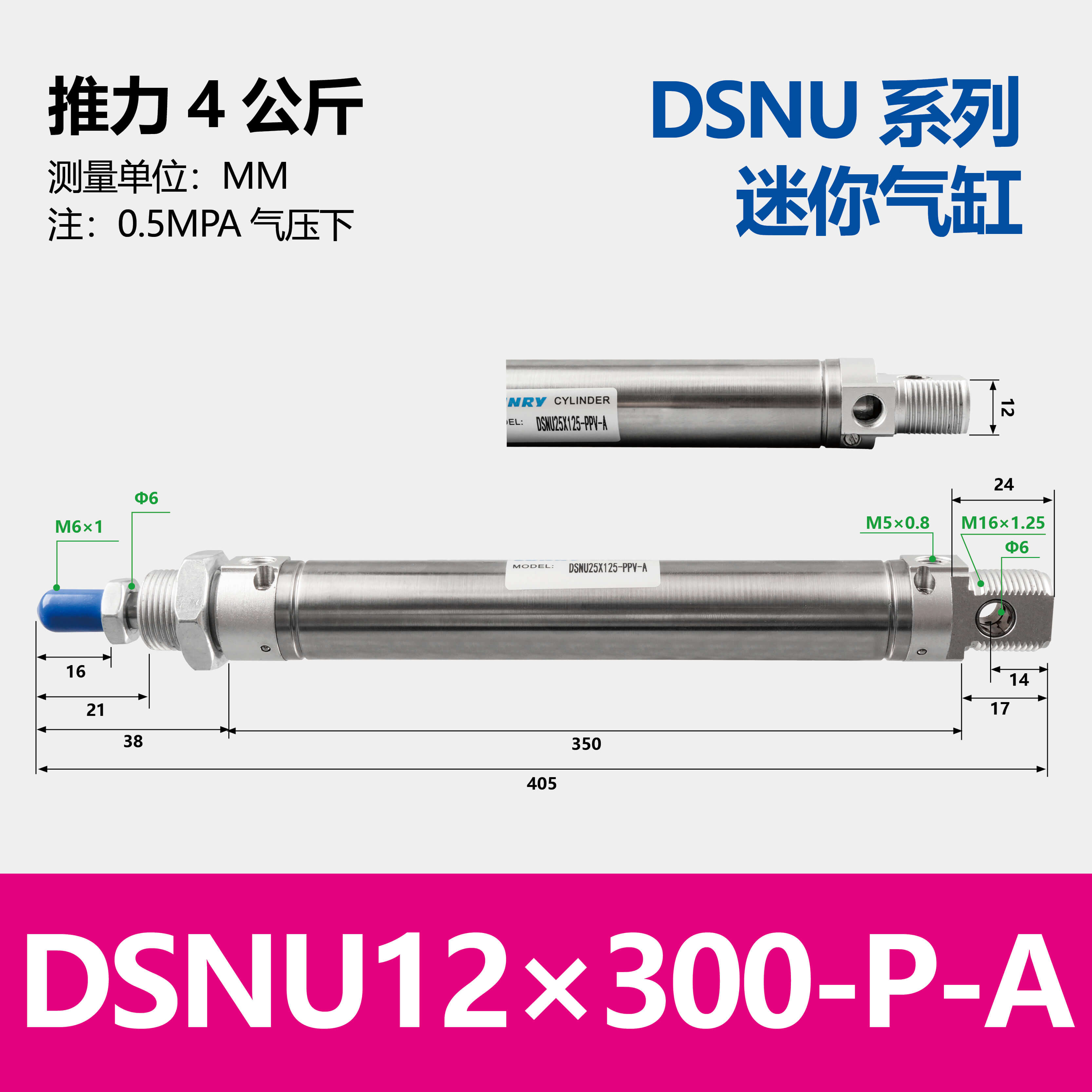

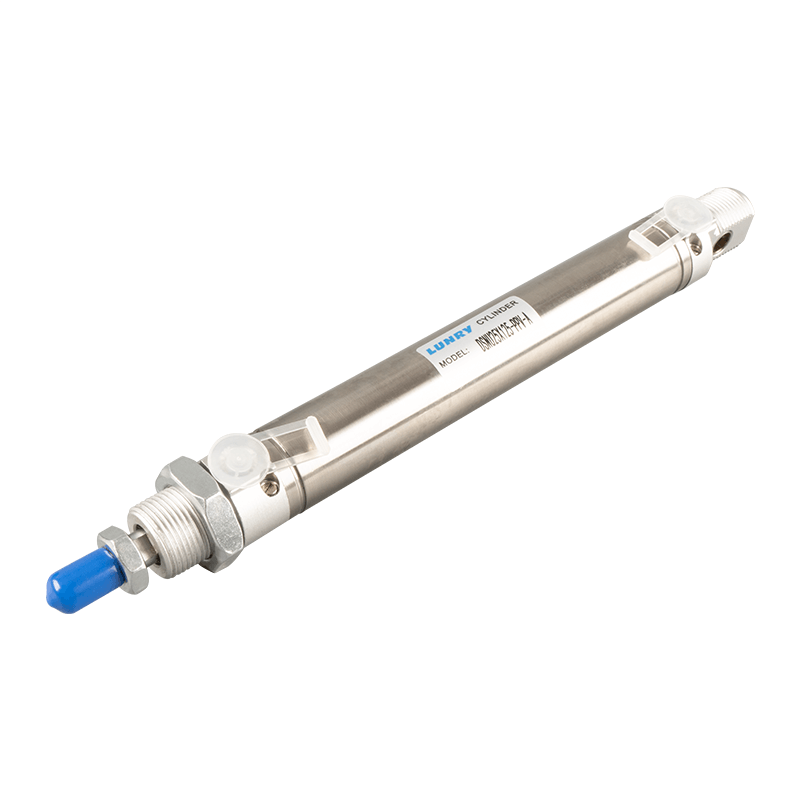

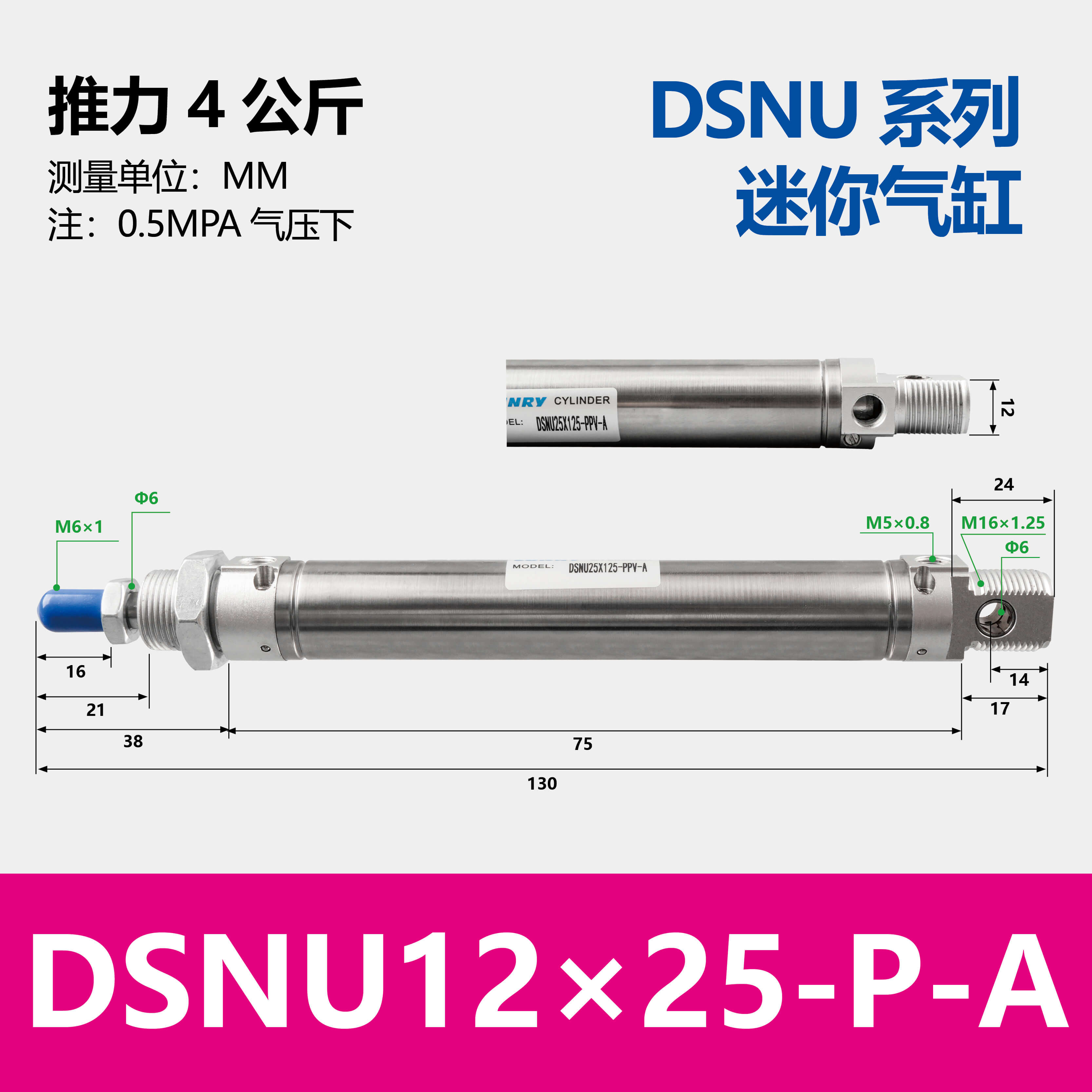

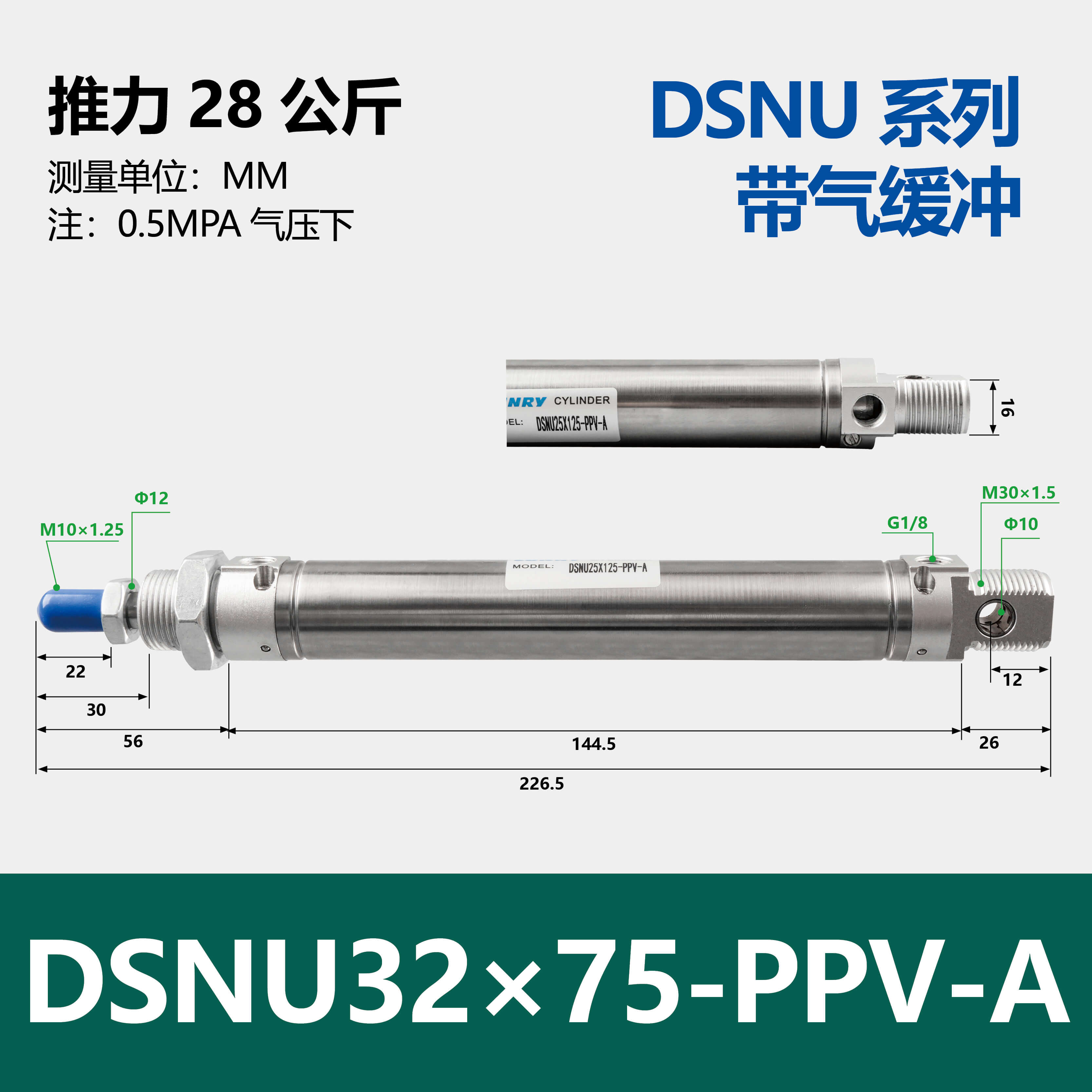

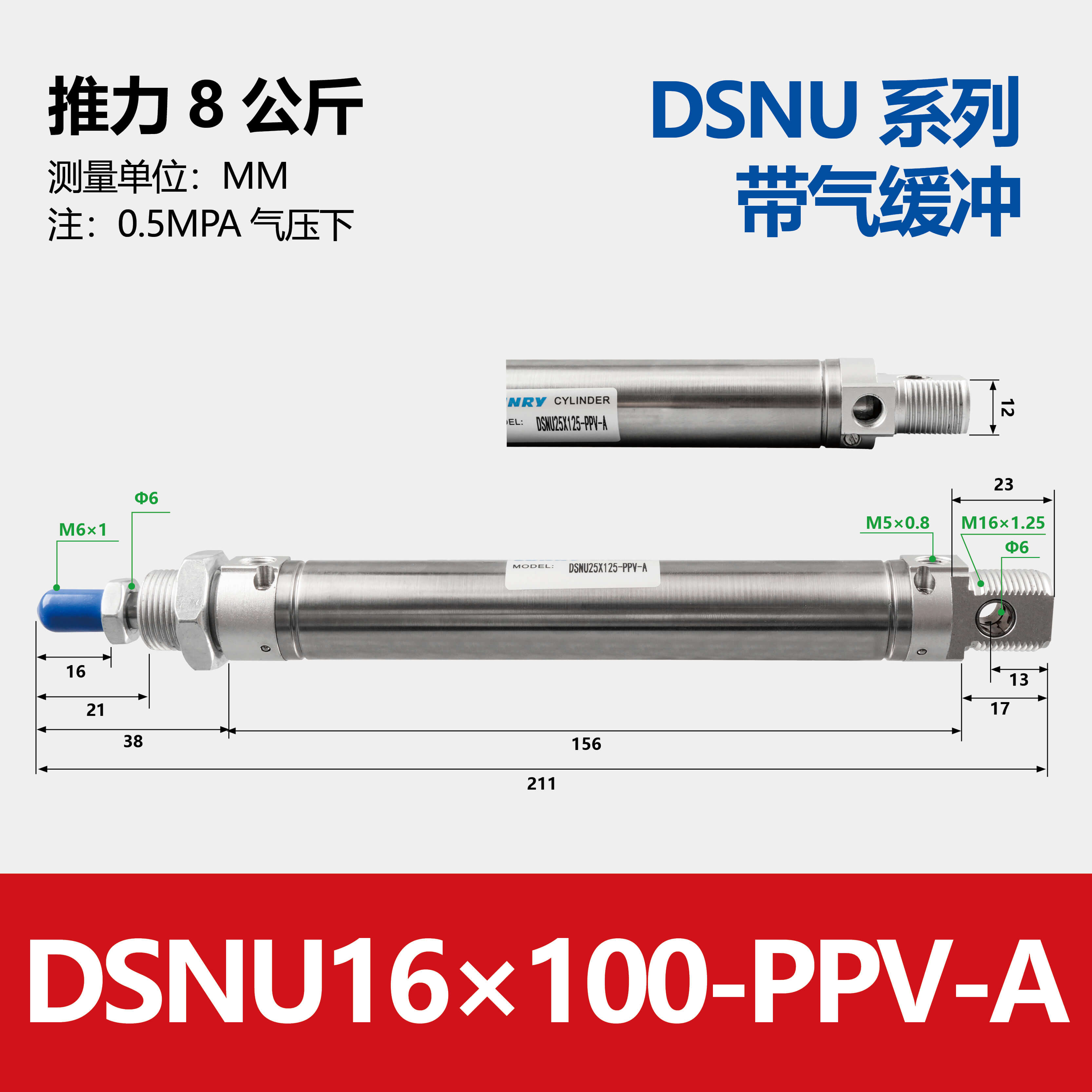

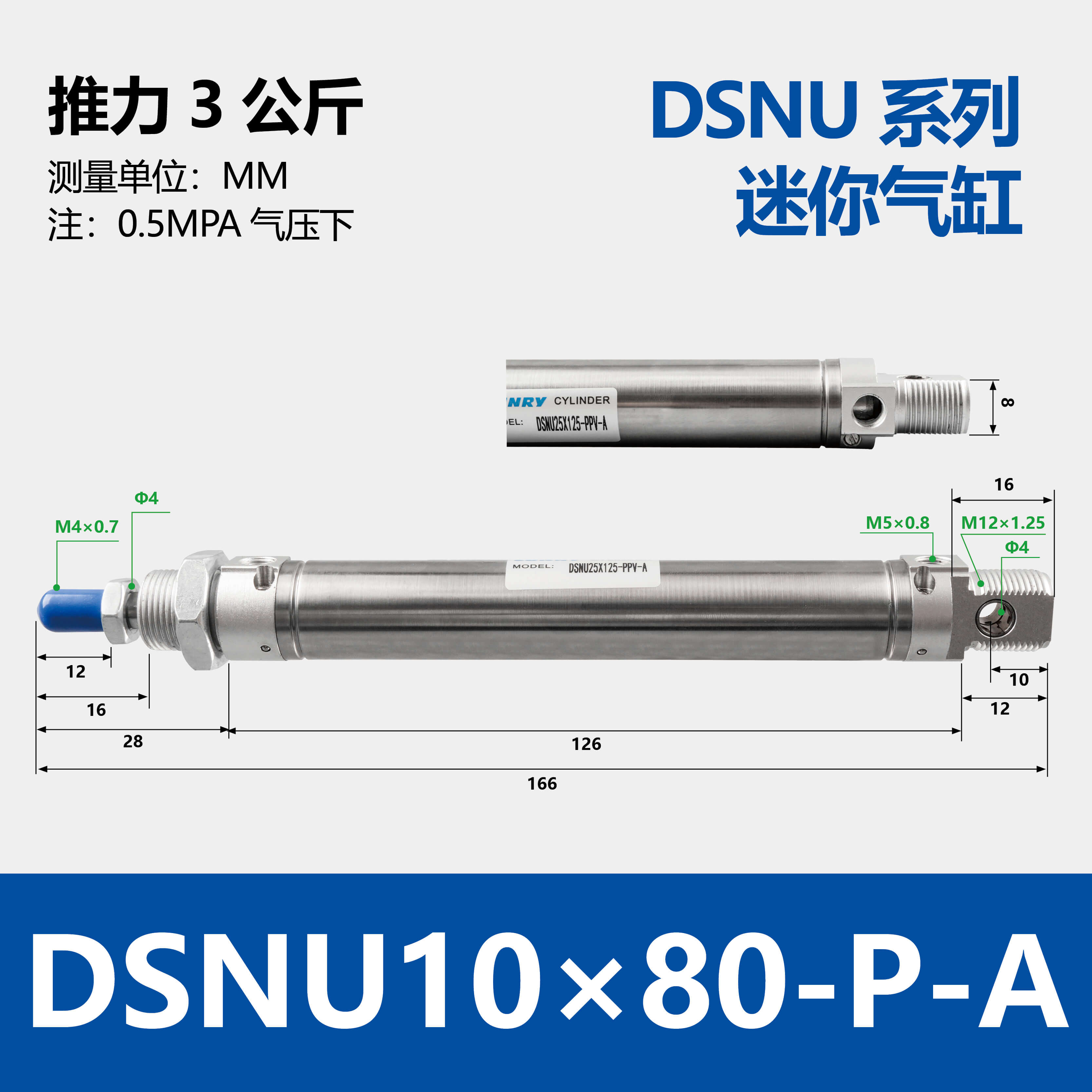

DSNU Double-acting Round Cylinder
-
Chat with us
-
Secure payments
-
14-day returns
✅ Core Features
- Dual Action: Compressed air driven, providing stable extension and retraction with high efficiency.
- Standard Compatibility: Complies with ISO 6432/VDMA 24562 standards, easy to replace and install.
- Cushioning Types:
- P: Elastic cushion, suitable for low speed/light load/low impact conditions.
- PPS: Self-adjusting pneumatic cushioning, no manual adjustment required, suitable for medium load/speed conditions.

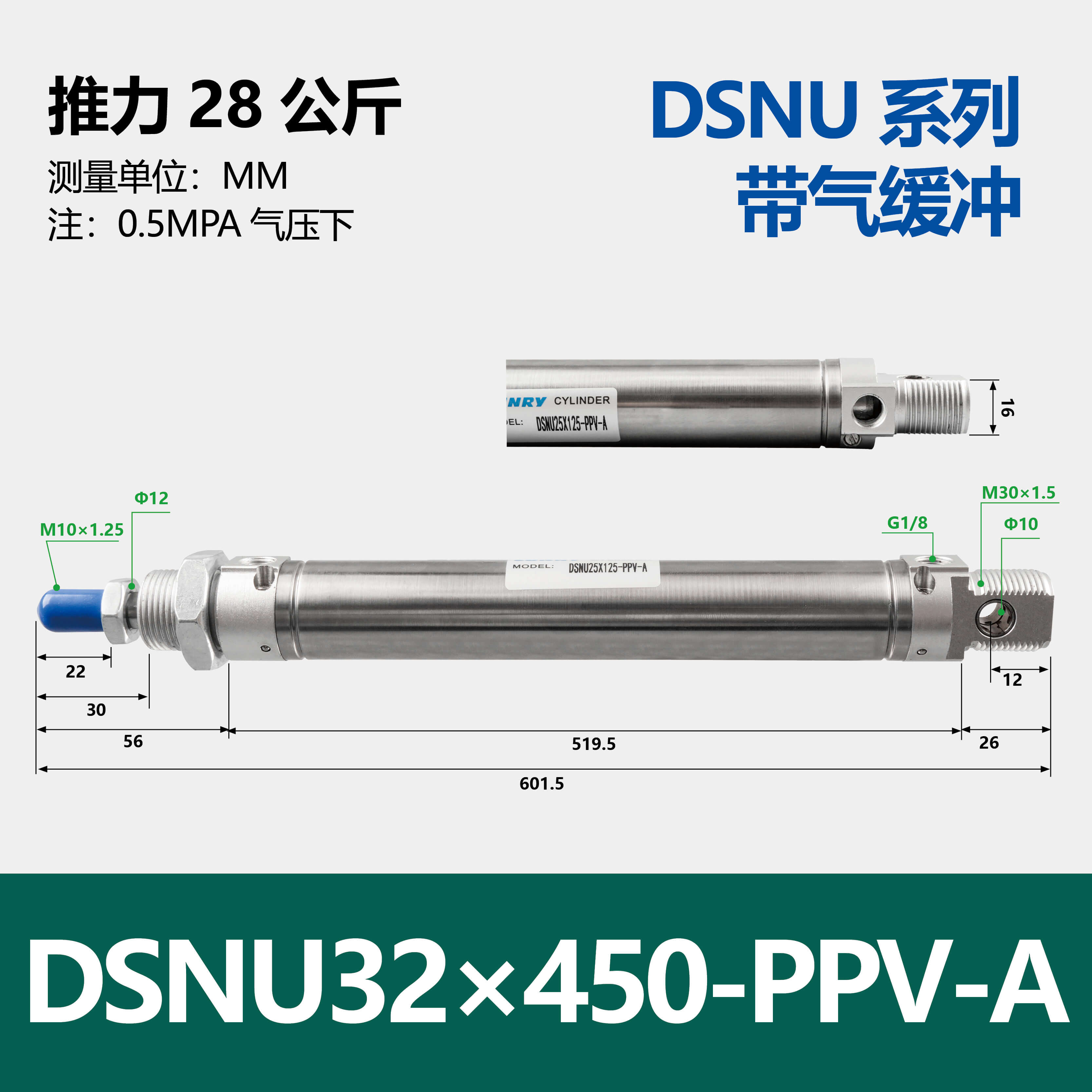

- PPV: Adjustable pneumatic cushioning, suitable for heavy load/high speed/high impact conditions.

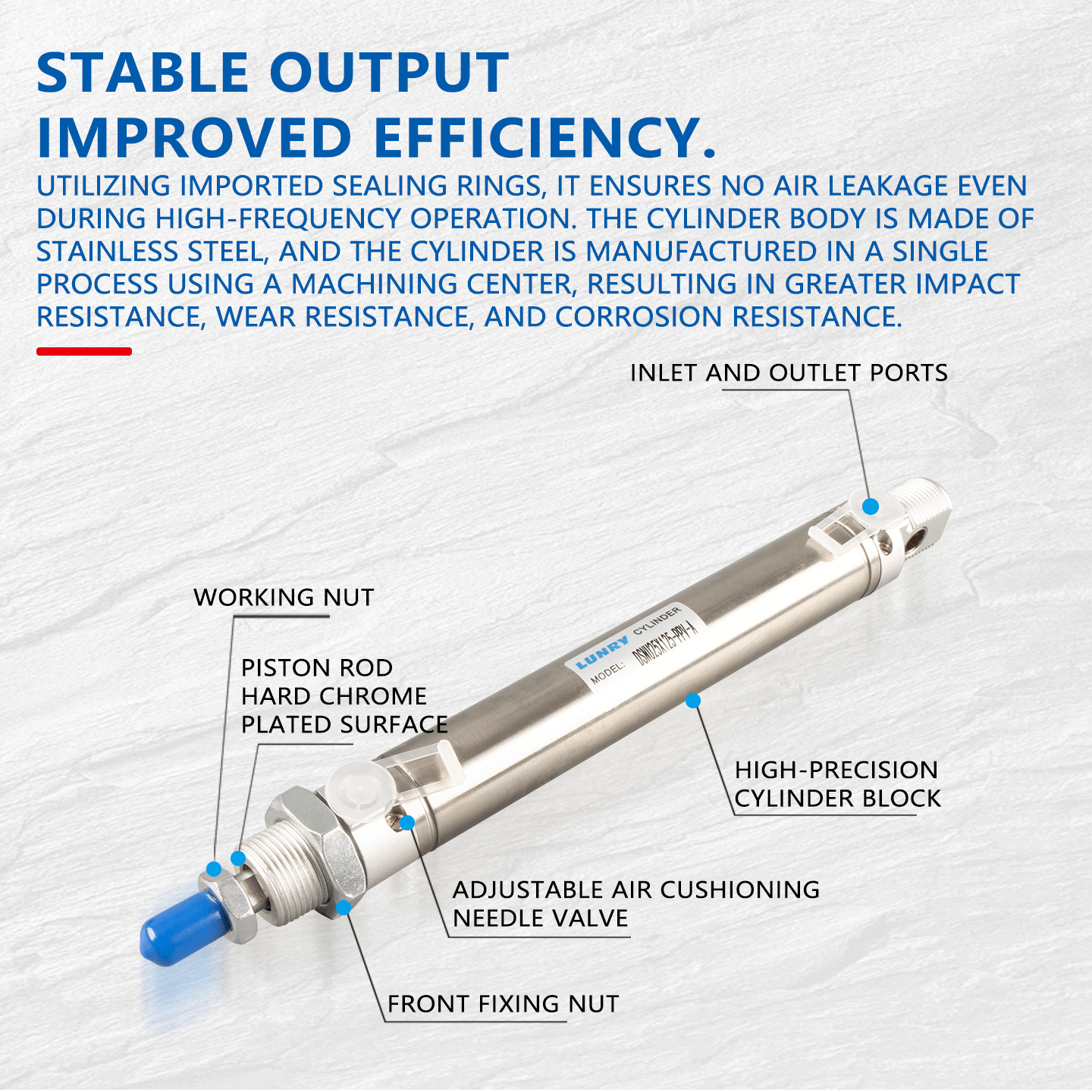

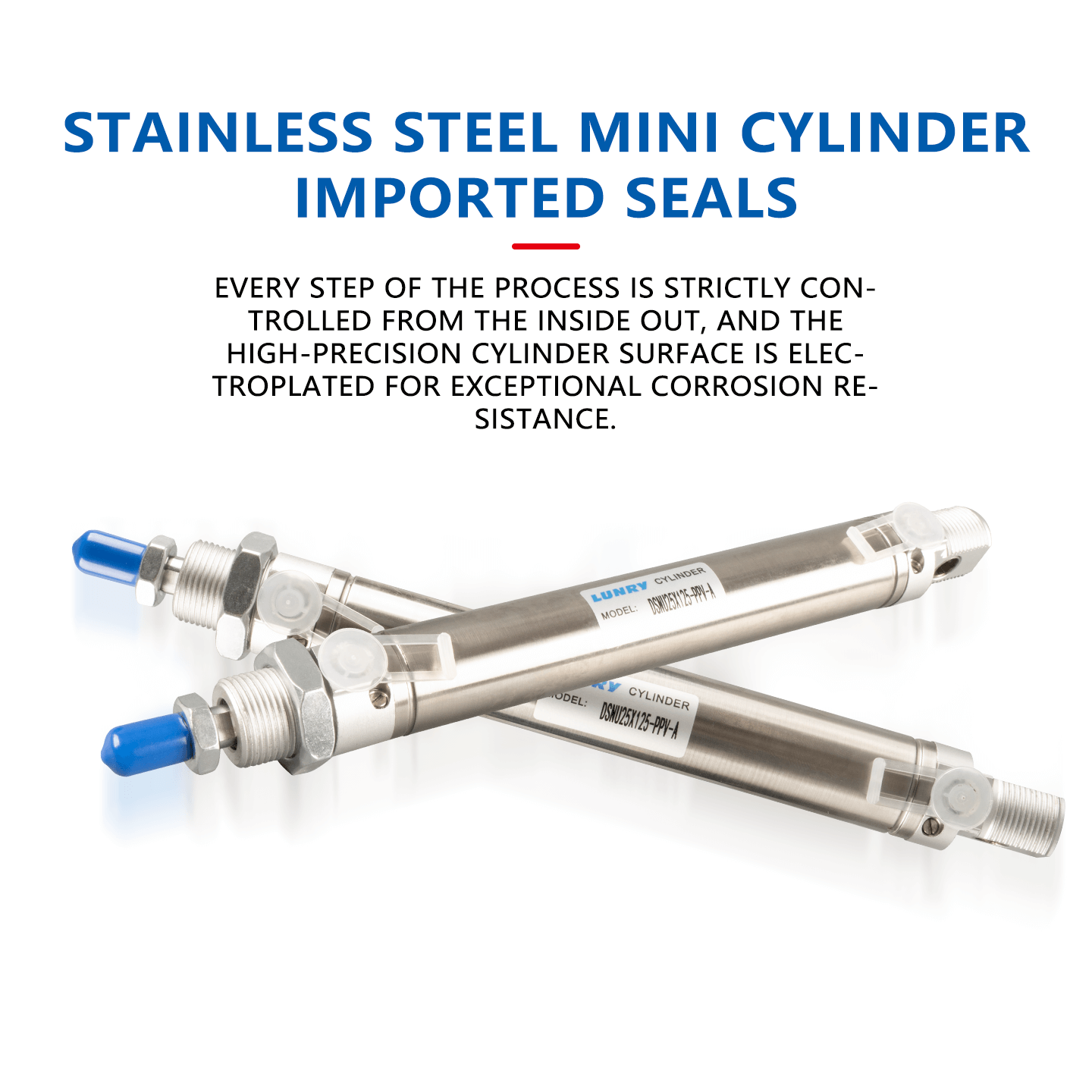

- Corrosion Resistant: Anodized aluminum cylinder barrel + high-alloy stainless steel piston rod.
- Flexible Configuration: Internal/external threaded piston rod, optional magnetic piston, multiple mounting options (flange/foot mount/trunnion).
✅ Technical Parameters (General, parameters are consistent across different cushioning types)

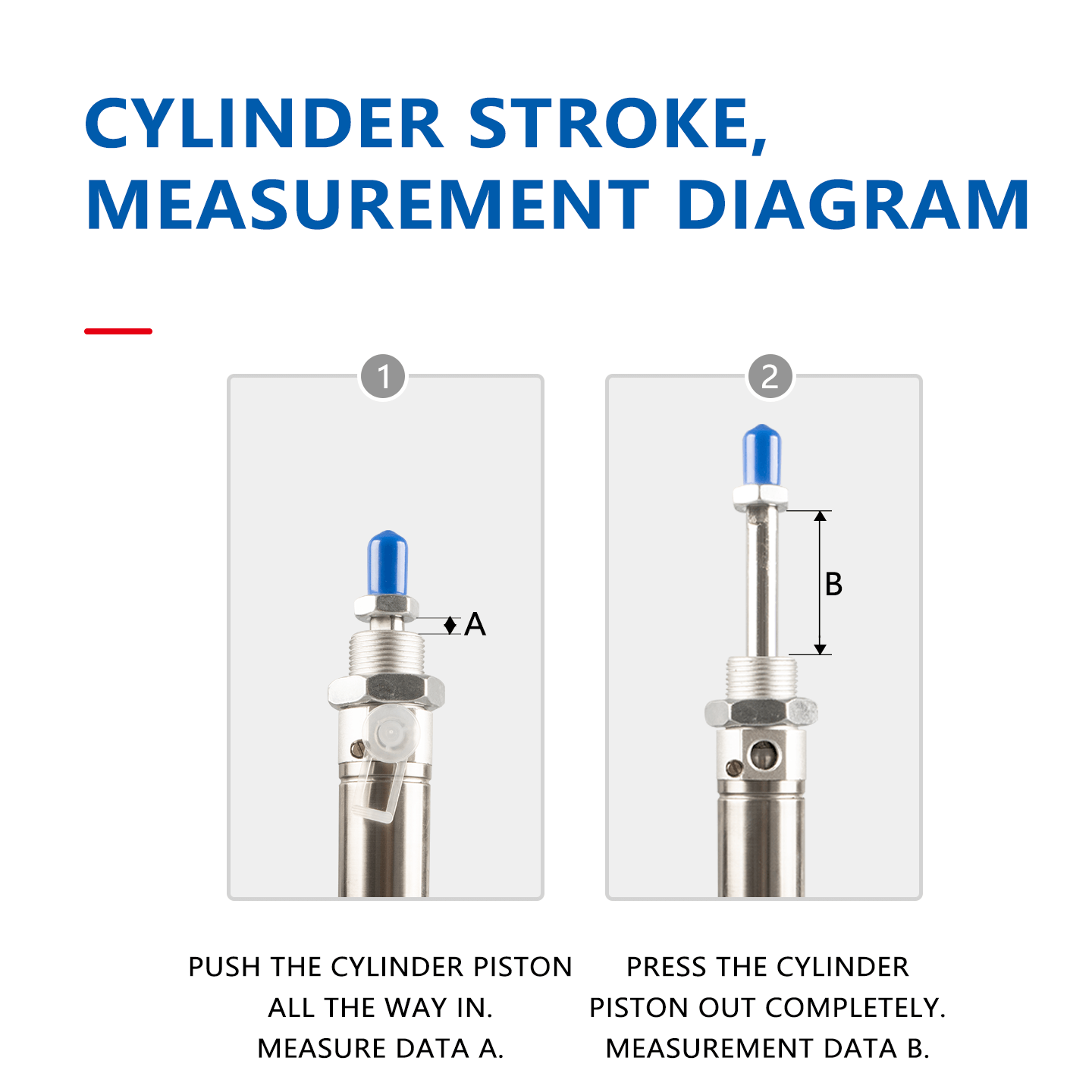

- Bore Diameter: 10–40mm | Stroke: 25–2000mm (customizable)
- Working Pressure: 0.1–1.0MPa (1–10bar) | Working Temperature: -20°C to +80°C
- Maximum Speed: 1.5m/s | Repeatability: ±0.1mm
✅ Application Scenarios
Automation control, machining, packaging machinery, logistics handling, electronic assembly lines, etc.
