🌟 Core Advantages: Compact Design, Big Performance
The DSBC cylinder redefines space-efficient automation without compromising on power or durability. As the successor to the trusted DNC series, it adopts the ISO 15552 standard for seamless replacement and global compatibility, with a streamlined profile that fits tight installations where every millimeter counts .
Key Features & Technologies
- ISO 15552 Compliance: Standardized mounting, bore, rod, and thread dimensions for universal interchangeability; replaces legacy ISO 6431/DIN ISO 6431 models .
- Three Cushioning Options:
- P: Elastic end buffers (cost-effective, basic shock absorption)
- PPS: Self-adjusting pneumatic cushioning (auto-adapts to load/speed changes, reduces setup time, boosts process reliability)
- PPV: Manually adjustable pneumatic cushioning (for precise control in critical applications)
- Modular Flexibility:
- Double-acting operation (standard)
- Anti-rotation option (prevents rod twist for precision tasks)
- Multi-side sensor slots (3-sided profile for easy proximity switch mounting)
- Safety variants: Clamping unit (DSBC-...-C) for position holding; end-position locking (DSBC-...-E1/E2/E3) as a drop guard in pressure loss scenarios
- Environmental protection: Bellows kit (DSBC-...-P2) for rod/ seal protection against dust/debris; EX4 variant for explosive atmospheres

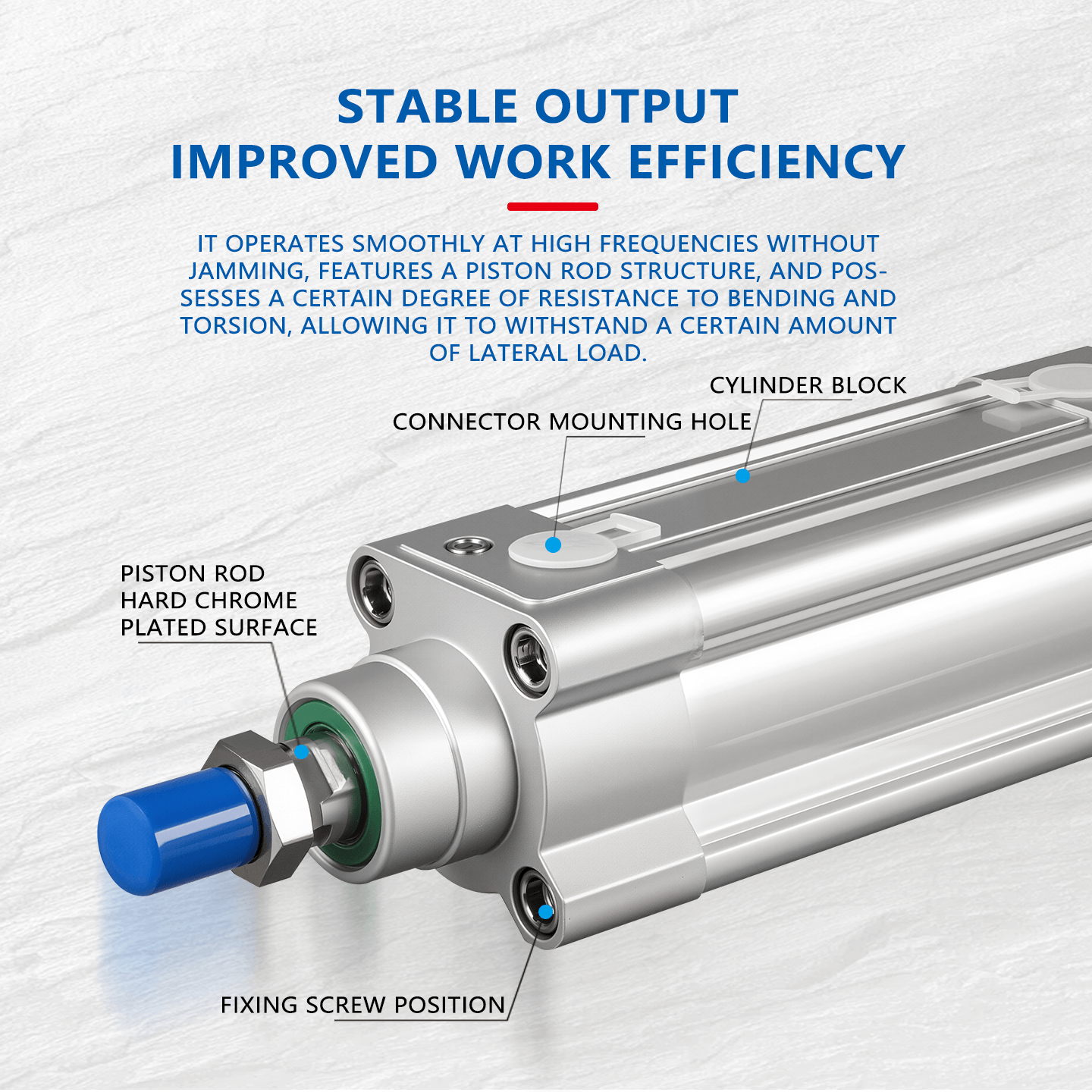

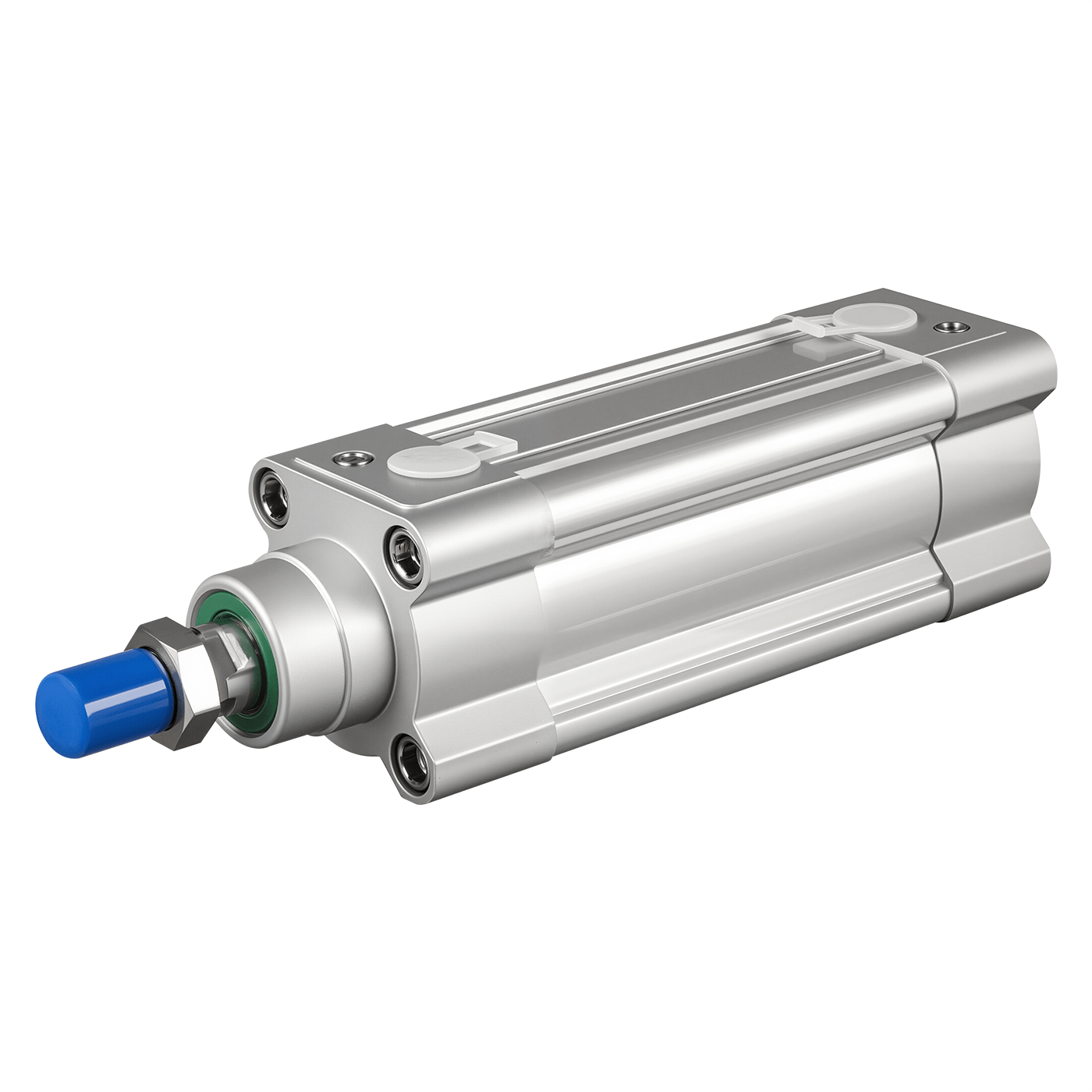

- Durable Construction:
- Coated die-cast aluminum covers

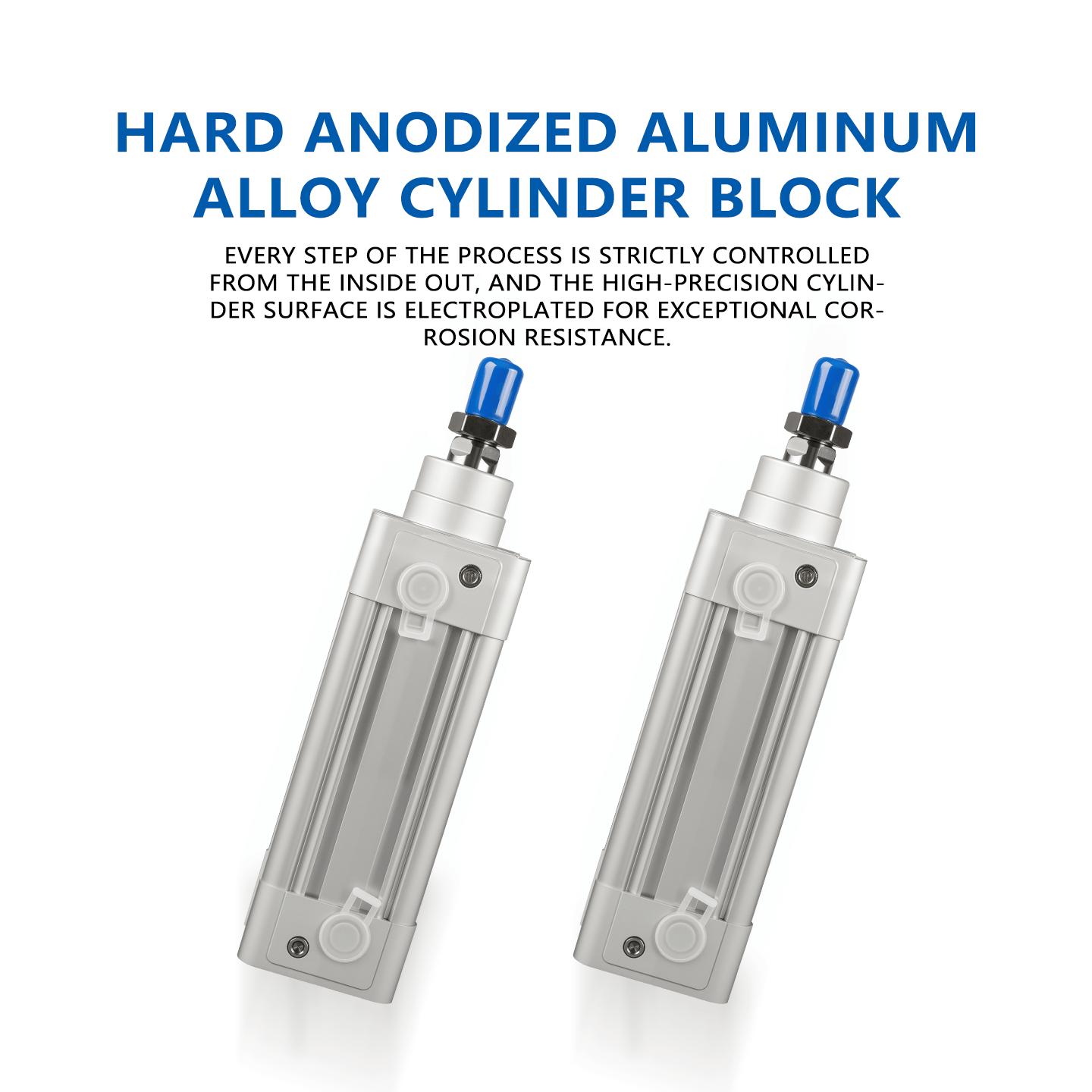

- Anodized aluminum cylinder barrel
- Hard-chromium plated high-alloy steel piston rod (corrosion-resistant, long wear life)

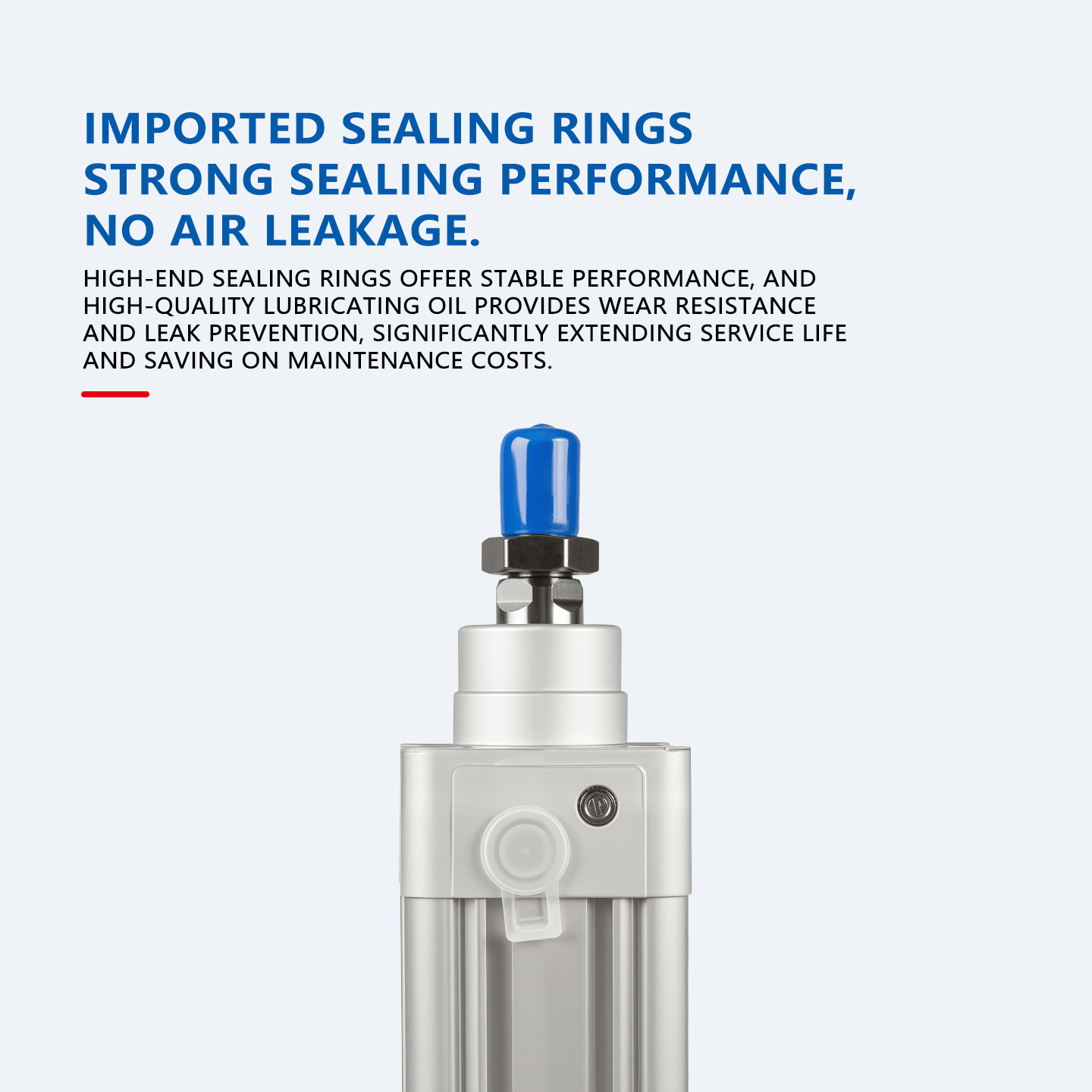

- Polyacetal piston with polyurethane seals (low friction, reliable sealing)
📏 Technical Specifications (Key Data)
- Bore sizes: 32 mm – 125 mm (standard); custom options available

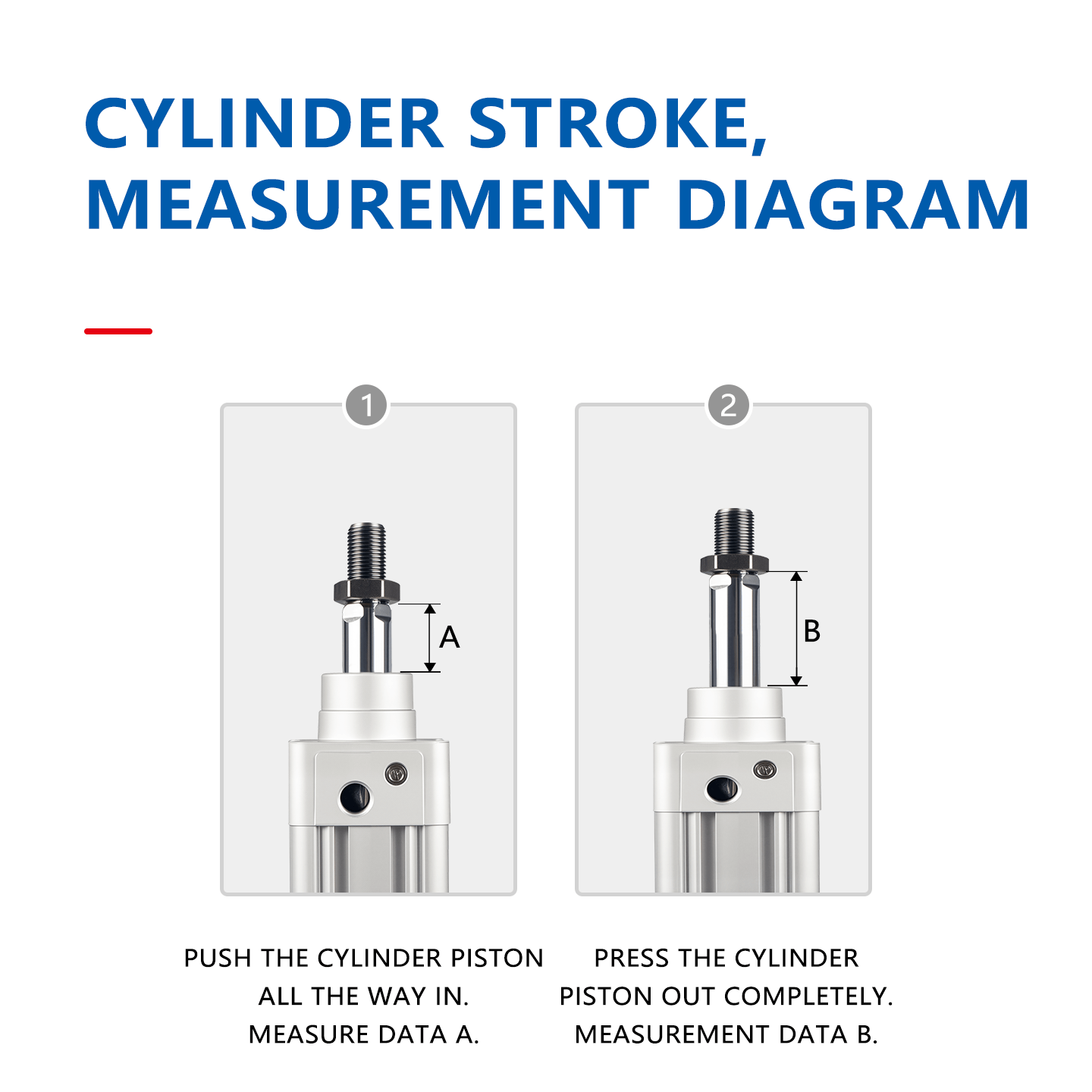

- Stroke range: 25 mm – 3,000 mm (flexible for short/long travel needs)
- Position detection: Proximity switch compatible (3-sided sensor grooves for easy installation)
🛠️ Applications: Where DSBC Shines
The DSBC’s compact footprint and versatile performance make it ideal for:
- Precision automation: Pick-and-place, assembly lines, robotics (anti-rotation option for orientation-critical tasks)
- Packaging machinery: Labeling, sealing, carton handling (space-saving design fits tight machine frames)
- Electronics manufacturing: PCB handling, component insertion (clean operation, low friction)
- General machinery: Material handling, clamping, pressing (modular variants adapt to diverse needs)
- Safety-critical systems: End-position locking/clamping units for load holding in case of pressure loss
🔧 Installation & Maintenance: Easy to Use, Low Upkeep
- Universal mounting: Comprehensive accessory range (flanges, clevis feet, trunnion supports, etc.) for any orientation (horizontal, vertical, angular)
- Long service life: Robust materials and precision engineering minimize wear; easy access to seals/parts simplifies maintenance and reduces downtime
✅ Why Choose DSBC?
- Space efficiency: Compact design for tight installations without sacrificing performance
- Cost-effectiveness: Modular configuration lets you pay only for the features you need; long service life reduces total cost of ownership
- Global support: Backed by LUNRY’s worldwide network of technical support and spare parts service, ensuring reliable operation wherever your business is located

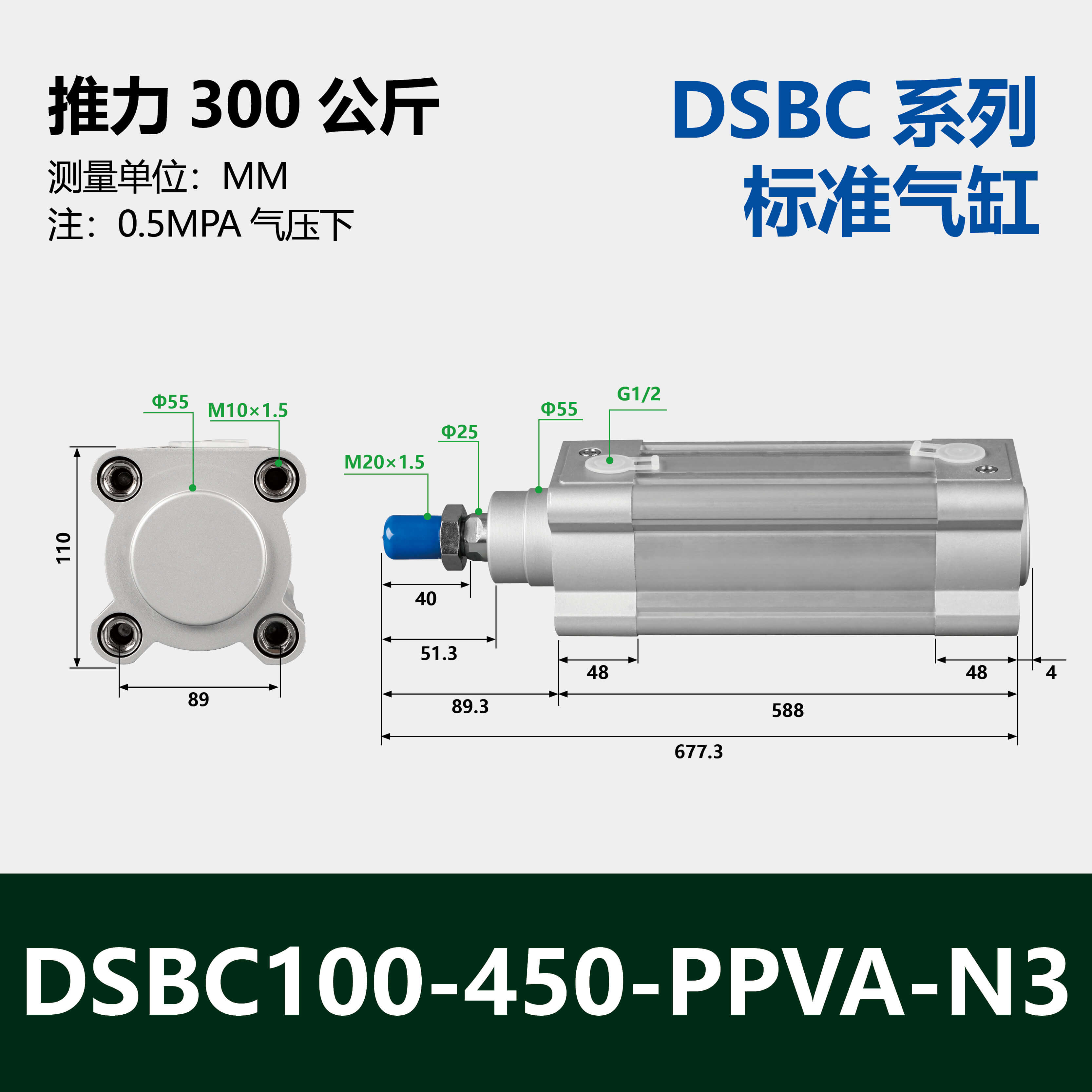

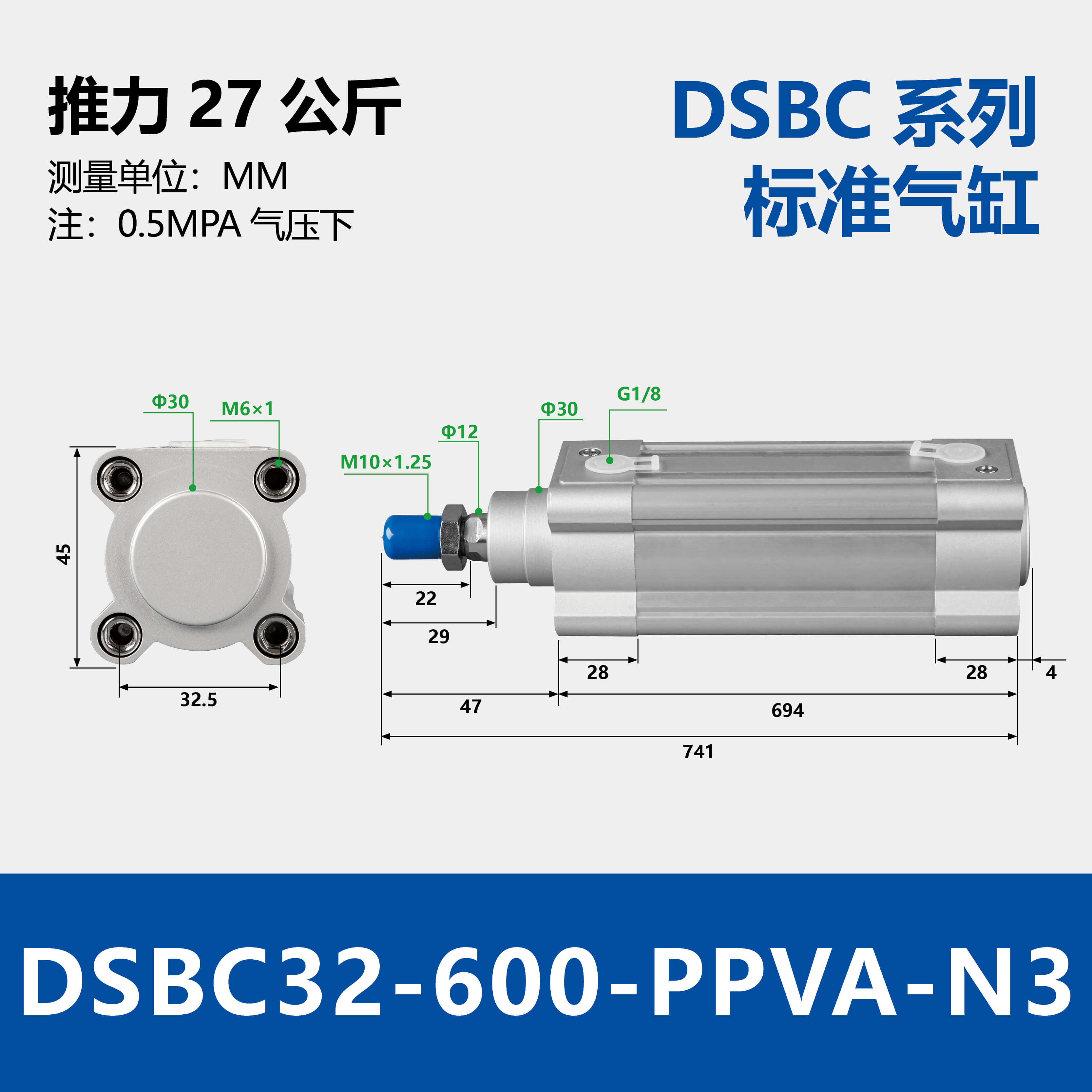

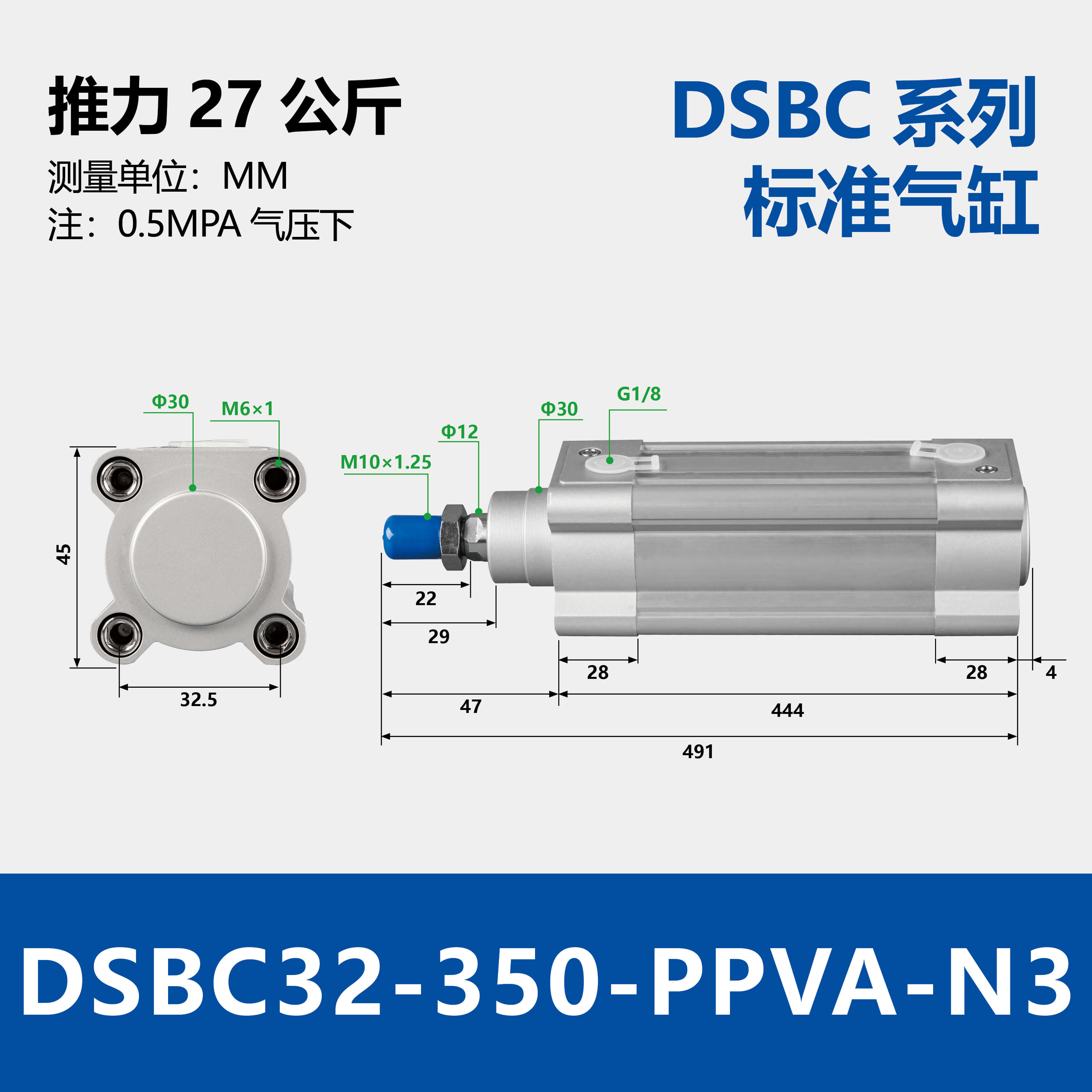

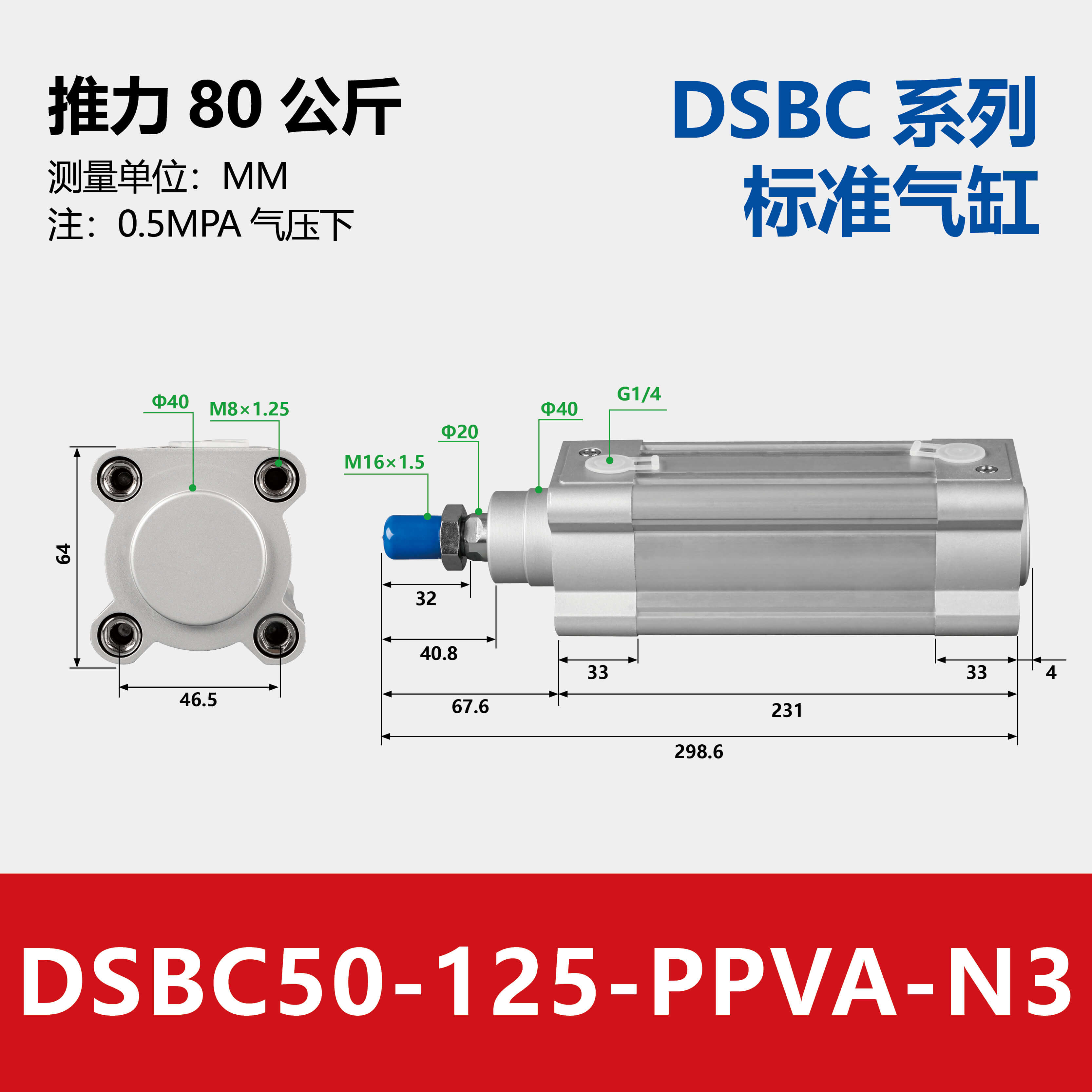

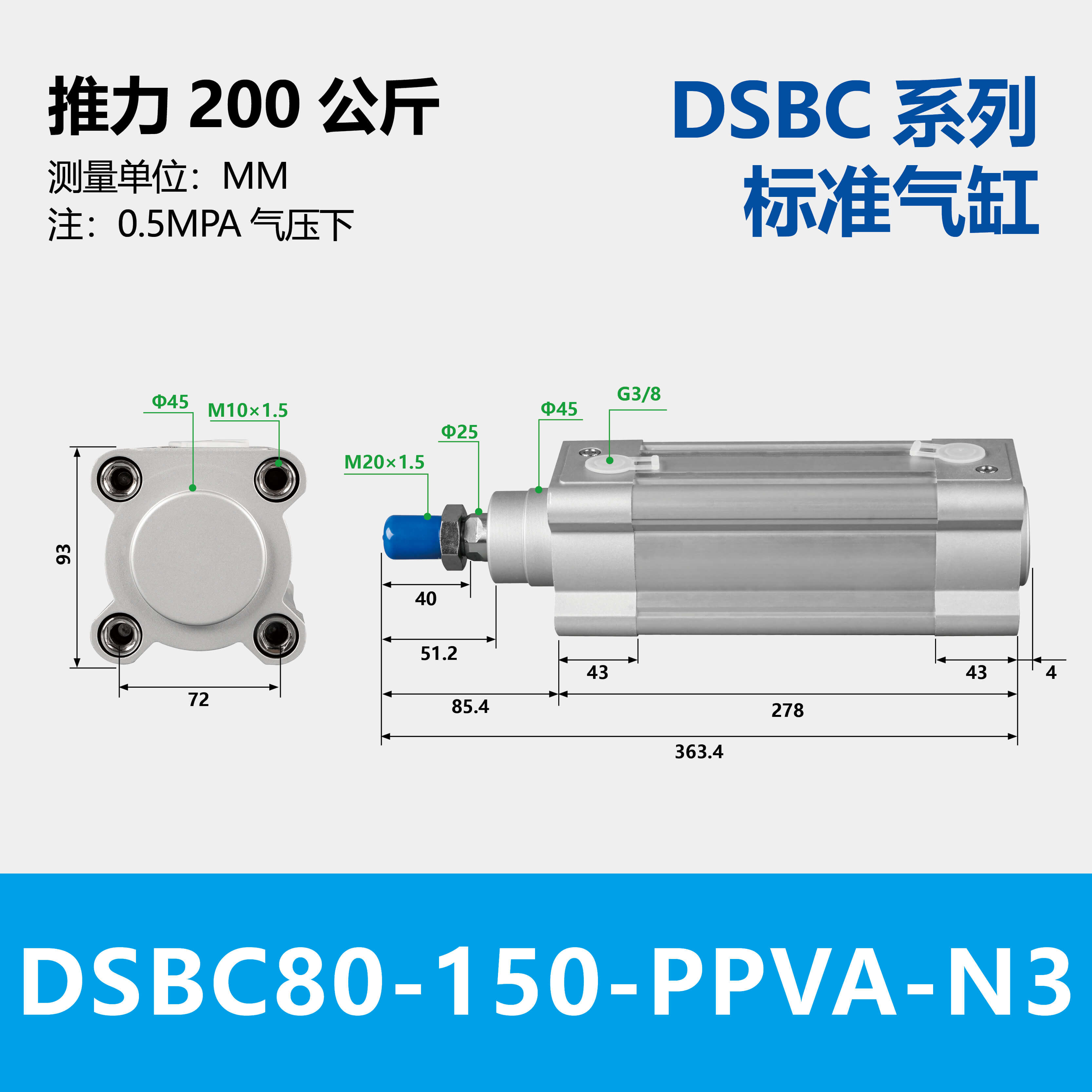

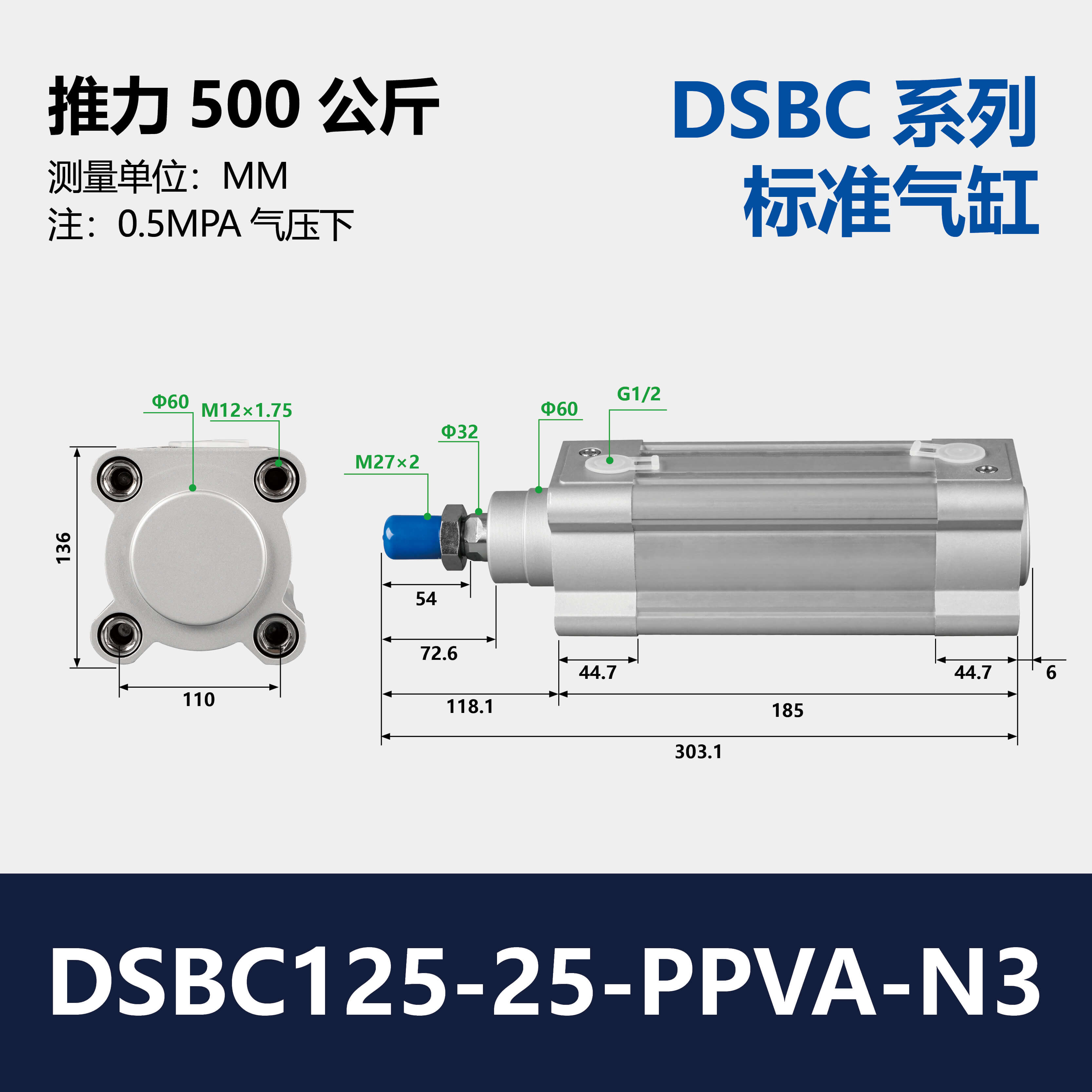

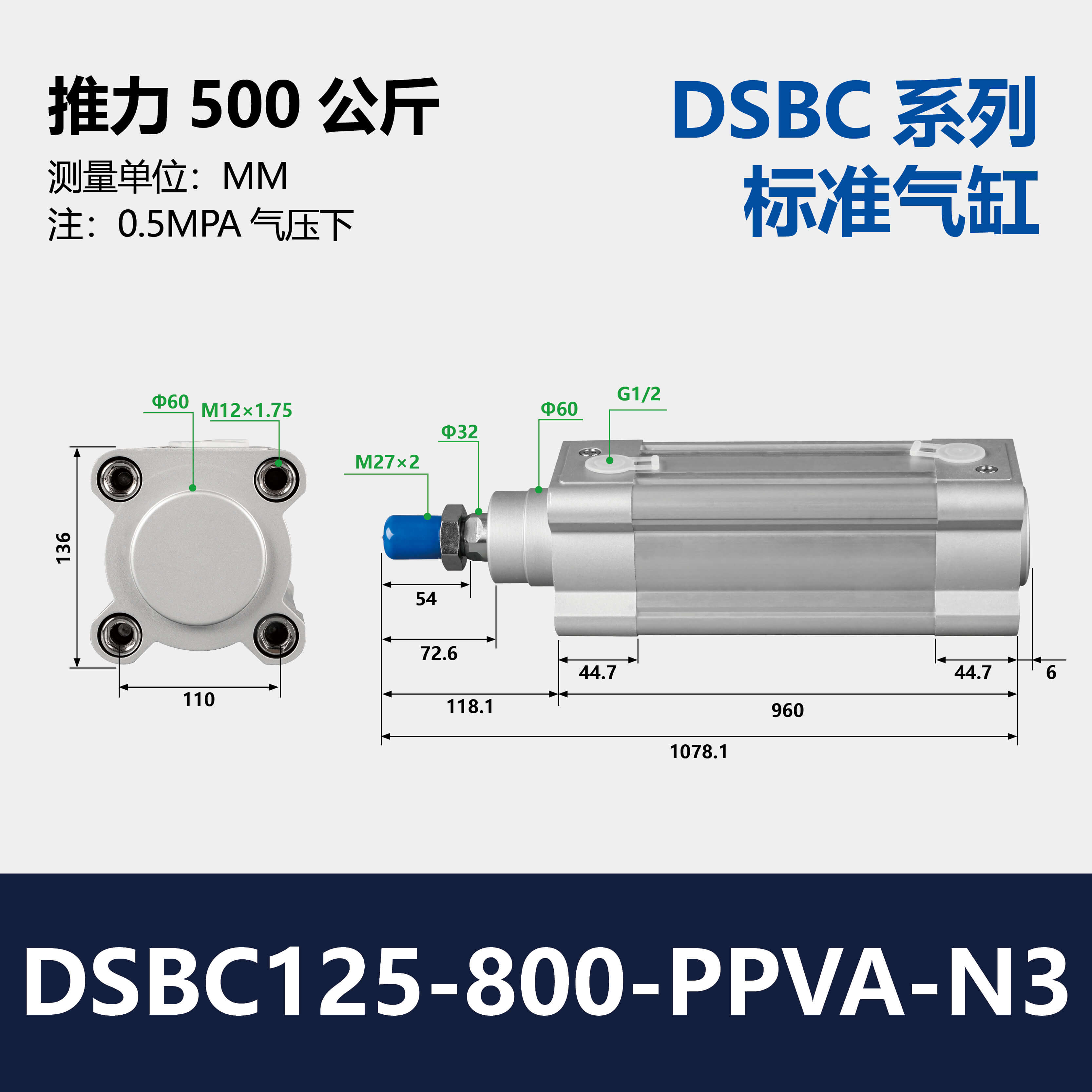

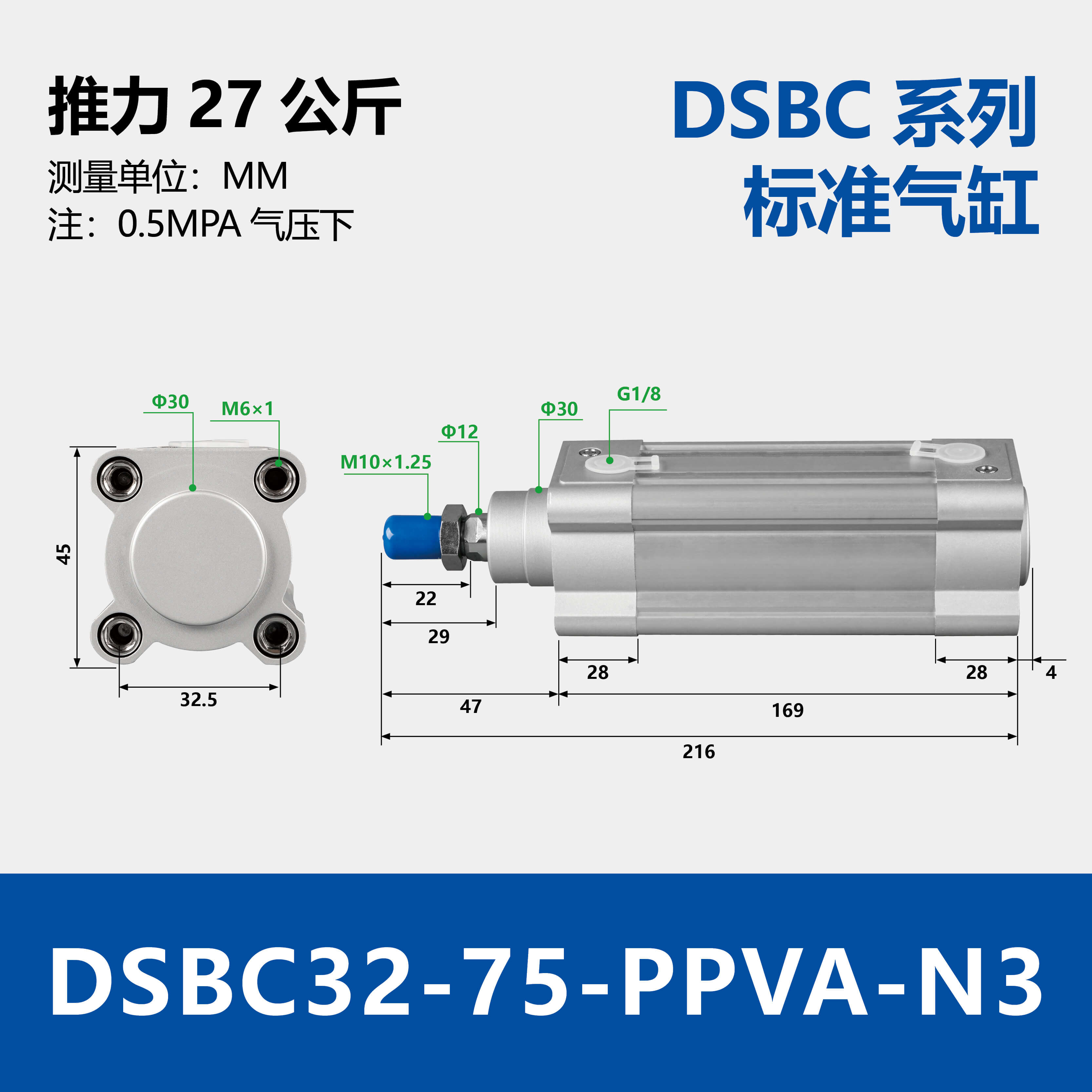

Specifications

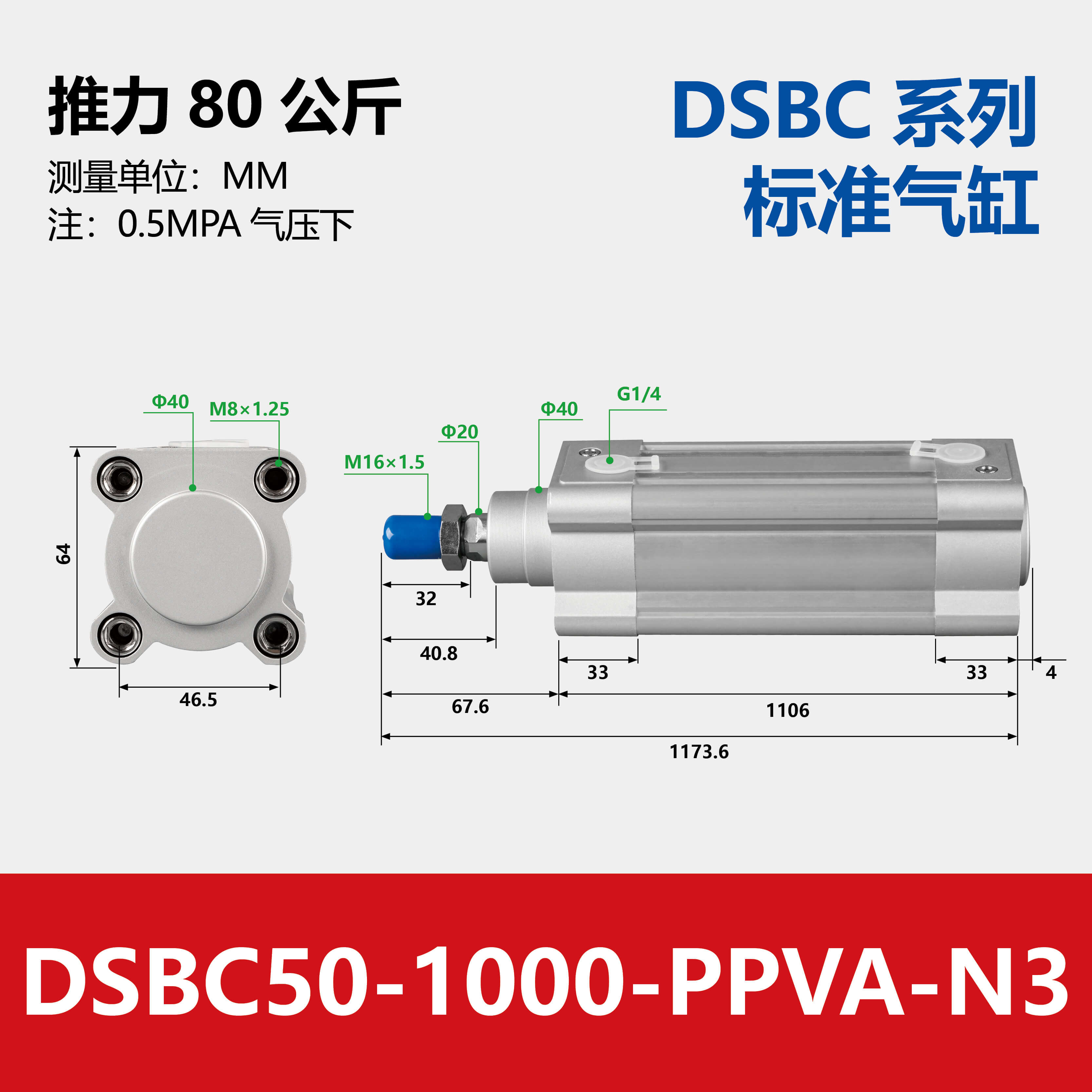

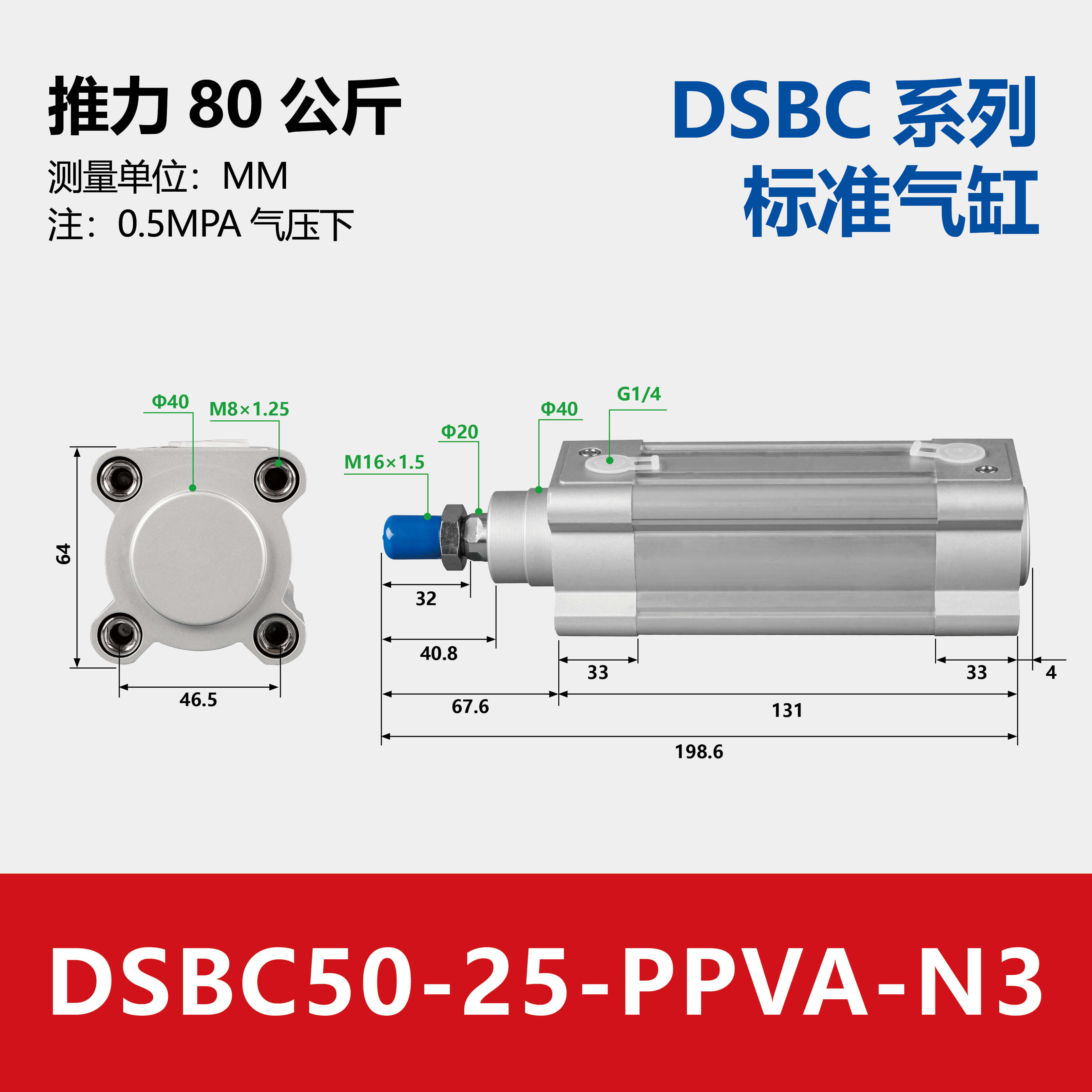

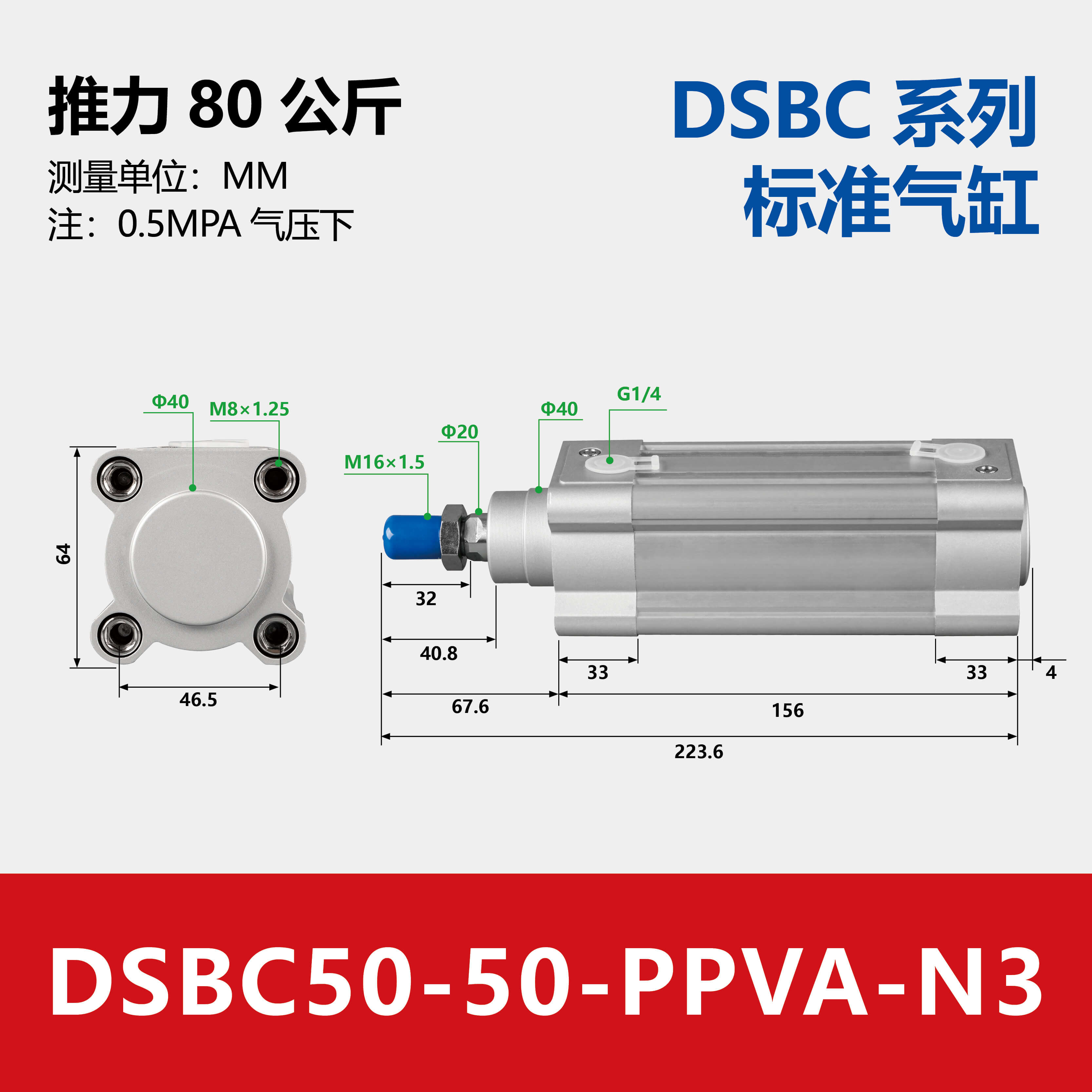

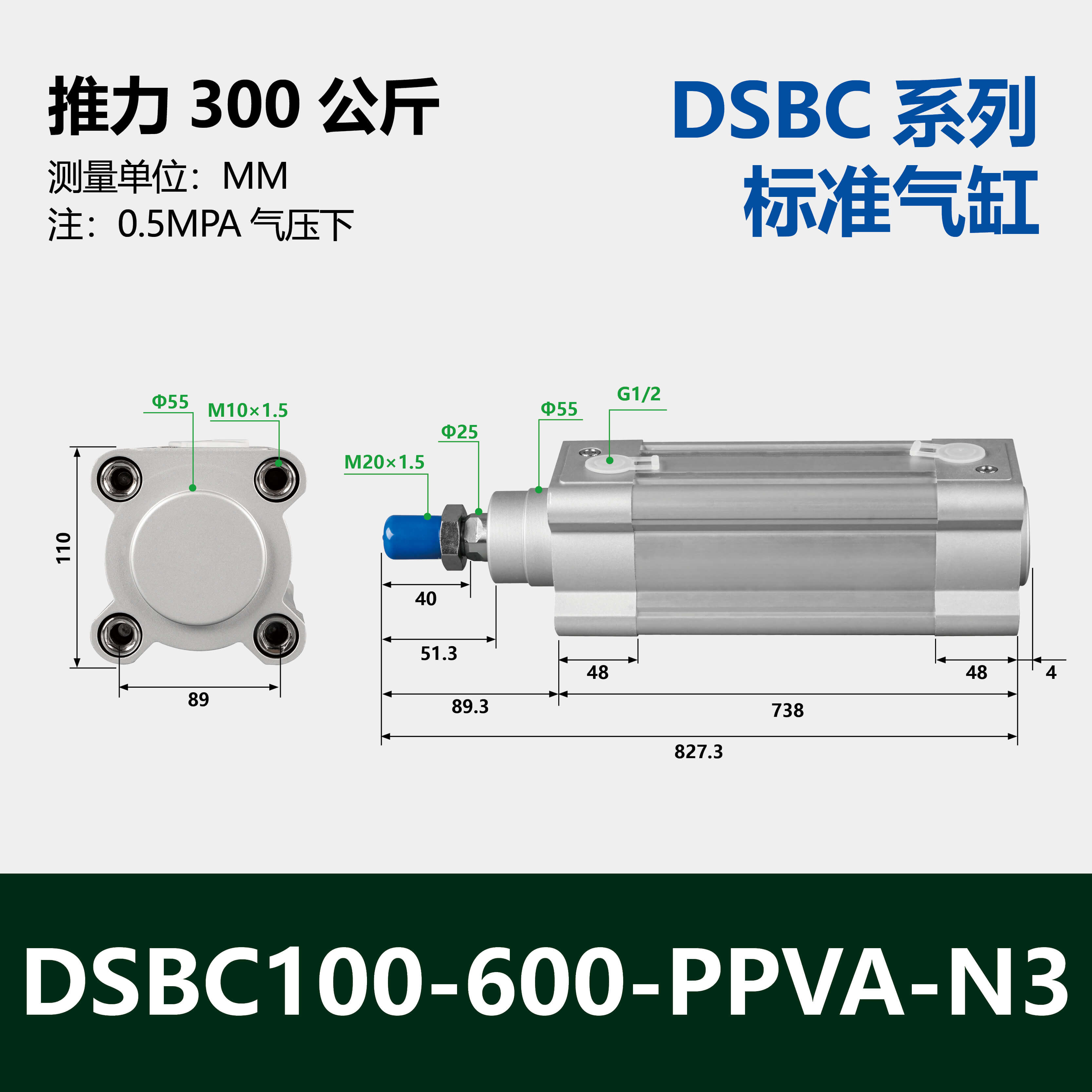

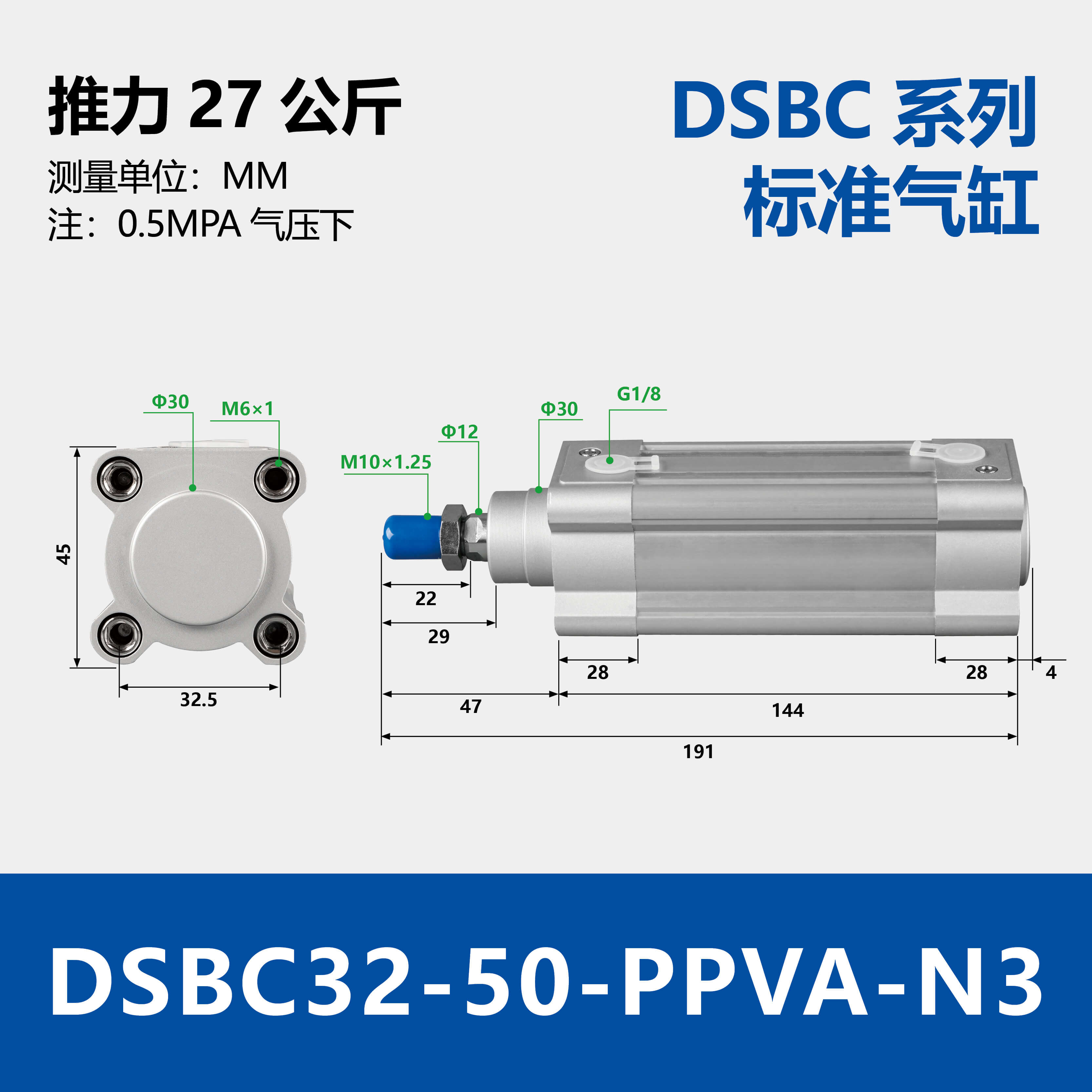

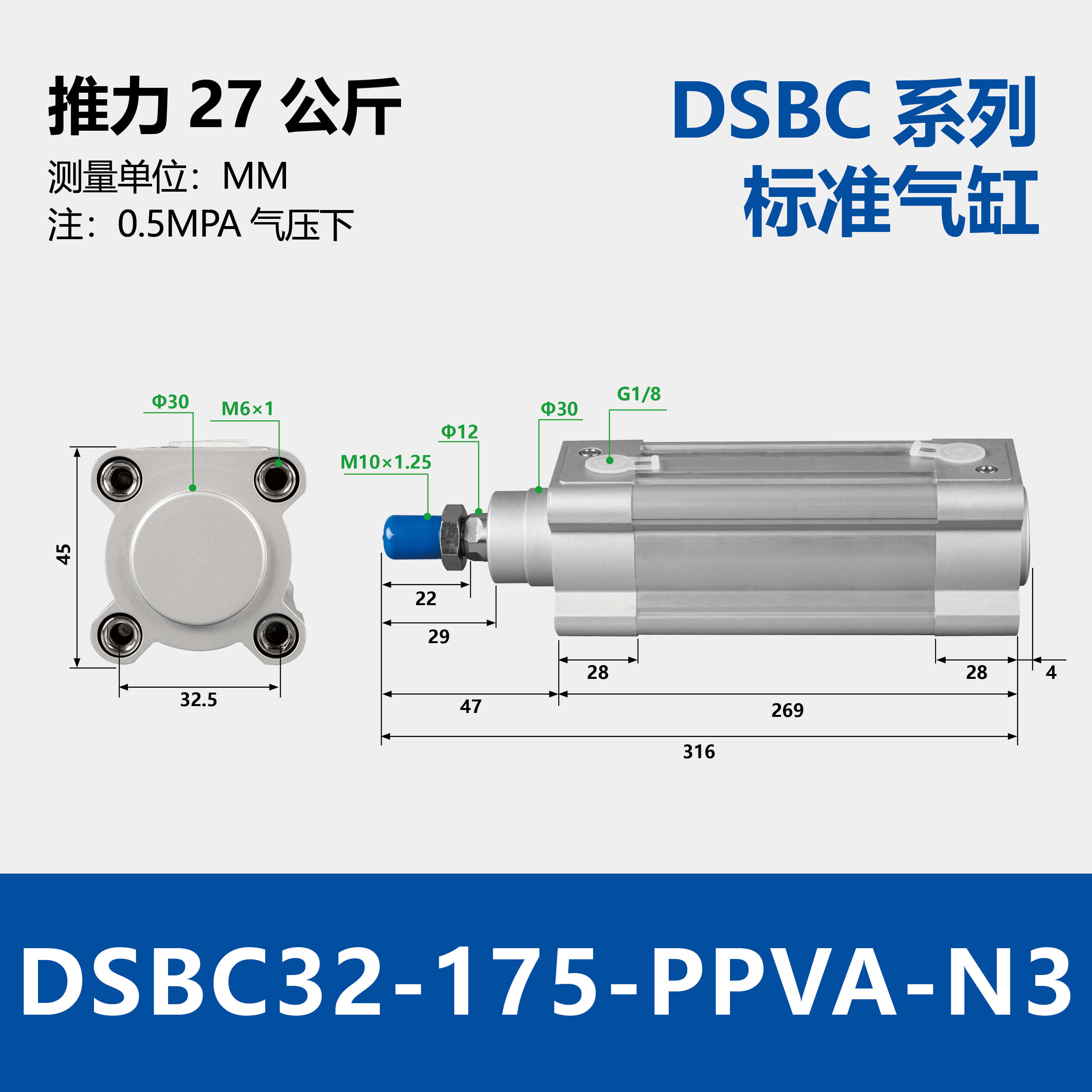

| Piston diameter | 32 | 40 | 50 | 63 | 80 | 100 | 125 | ||
|---|---|---|---|---|---|---|---|---|---|
| Design | Piston/piston rod/profile barrel | ||||||||
| Mode of operation | Double-acting | ||||||||
| Pneumatic connection | |||||||||
| DSBC-... | G1/8 | G1/4 | G1/4 | G3/8 | G3/8 | G1/2 | G1/2 | ||
| DSBC-...-C | M5 | G1/8 | G1/8 | G1/8 | G1/8 | G1/8 | G1/8 | ||
| Piston rod thread | M10x1.25 | M12x1.25 | M16x1.5 | M16x1.5 | M20x1.5 | M20x1.5 | M27x2 | ||
| Stroke | |||||||||
| DSBC-… [mm] | 1 to 2800 | ||||||||
| DSBC-...-Q [mm] | 1 to 1500 | - | |||||||
| DSBC-...-L1 [mm] | 10 to 1000 | ||||||||
| DSBC-...-C [mm] | 10 to 2000 | ||||||||
| DSBC-...-E1/-E2/-E3 [mm] | 10 to 2000 | - | |||||||
| DSBC-...-P2 [mm] | 10 to 500 | - | |||||||
| DSBC-...-...E [mm] | 1 to 2000 | ||||||||
| DSBC-...-...L [mm] | 1 to 2000 | ||||||||
| Cushioning | |||||||||
| DSBC-...-P | Elastic cushioning rings/plates at both ends | ||||||||
| DSBC-...-PPV | Pneumatic cushioning, adjustable at both ends | ||||||||
| DSBC-...-PPS | Pneumatic cushioning, self-adjusting at both ends | ||||||||
| Cushioning length | |||||||||
| DSBC-...-PPV [mm] | 17 | 19 | 22 | 22 | 31 | 31 | 45 | ||
| DSBC-...-E1/-E2/-E3 [mm] | 17 | 19 | 15 | 15 | 15 | 15 | - | ||
| Position sensing | Via proximity switch | ||||||||
| Type of mounting | With female thread/accessories | ||||||||
| Mounting position | Any | ||||||||
